4 Axis Durable CNC HMC Machine , HMC1270 6000RPM Horizontal Machining Center CNC
4 Axis Durable CNC HMC Machine , HMC1270 6000RPM Horizontal Machining Center CNC
4 Axis Durable CNC HMC Machine , HMC1270 6000RPM Horizontal Machining Center CNC
4 Axis Durable CNC HMC Machine , HMC1270 6000RPM Horizontal Machining Center CNC
Specifications
Brand Name :
Li Zhun
Model Number :
HMC-1270
Certification :
SGS
Place of Origin :
China
MOQ :
1
Payment Terms :
T/T
Supply Ability :
10000 per year
Delivery Time :
45-60 Work Days
Packaging Details :
Wooden Box
T-Slots :
5mm*18mm*110mm
Worktable Size :
1380mm*600mm
Type :
Horizontal
Condition :
New
Warranty :
1 Year
Machine Weight :
5500kg
Spindle speed :
6000 r.p.m
Spindle taper :
BT50
Description

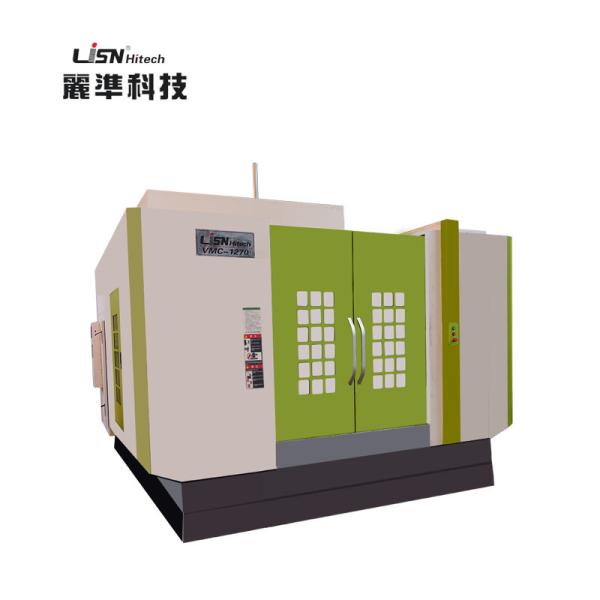

High Speed 4 Axis Horizontal Machining Center HMC1270 6000rpm CNC Machine

Product Description

The 4 axis VMC-1270W is high performance horizontal machining center which has high precision and high rigidity characteristics. The structure and layout of the machine are excellent, and the overall rigidity and stability are extremely high which can maintain good accuracy while the process of processing. All castings are characterized by high hardness and rigidity, they have been secondary tempered to provide good stability and rigidity for the machine. This machine equips a high performance spindle with 8000RPM speed range, the maximum cutting feed speed is from 1 till 8000RPM. Both X,Y,Z are using ultra-rigid roller linear guideway, it can greatly improve the control and the accuracy.

Main Parameters

ITEM MODELS VMC-1270W
WORKTABLE (WIDTH*LENGTH) mm 1380*600
T SLOTS mm 5*18*110
DISTANCE BETWEEN T SLOTS mm 5*18*110
DISTANCE FROM SPINDLE NOSE TOWORKBENCH mm 100-820
MAX LOAD BEARING OF WORKTABLE kg 900
X/Y/Z AXIS TRAVEL mm 1200/750/720
SPINDLE HOLE TAPER BT50
SPINDLE SPEED RANGE r/min 6000/8000
TRANSMISSION OF SPINDLE BOX BELT/DIRECT Optional
X/Y/Z RAPID FEED SPEED m/min 20/20/20
MAX CUTTING FEED SPEED mm/min 1-8000
MACHINE DIMENSION mm 3300*2370*3200
MACHINE WEIGHT kg 5500


FAQ

1. Is it all right to make customer's own brand name?

A: yes. we are available with OEM

2. Are you a manufactuer or trading company?

A:We are the manufacturer

3. Can you do the design for us?

A: yes. if you want a different control system design or higher column , we are available.

4 . What is your terms of delivery?

A: FOB shenzhen.

5. What's your payment term?

A: T/T OR L/C at sight.
