EX POT Series CNC Consumables Thread Forming Tap Solubility Resistant
EX POT Series CNC Consumables Thread Forming Tap Solubility Resistant
Specifications
Brand Name :
CTF
Model Number :
HSS-CO / CPM / CARBIDE
Place of Origin :
China
MOQ :
10 - 30
Payment Terms :
T/T
Supply Ability :
No Limited
Delivery Time :
5 - 8 work days
Packaging Details :
Wooden Box
Condition :
New
Materials :
Thread Forming Tap
Rigidity :
Extremely High
Series :
Extrusion (no chip) tap
Melting Resistance :
Good
Wear Resistance :
Good
Description

EX-POT Series High Hardness High Quality High Efficiency

Product Description

This product has excellent cutting effect. It can quickly cut the highest thread. The tip tap has the same straight wire groove as the normal hand tap, but has a specially designed spiral groove at the front of its cutting part to expel the chip from the hole under the hole by rotation. This design not only avoids the problem of chip clogging and tap damage, but also allows faster cutting of high precision threads.


Main Features

  • Good Rigidity
  • High Hardness
  • High surface hardness, good wear resistance
  • Significant improvement in durability
  • Surface friction resistance is small, melting resistance is large
  • High speed cutting to improve efficiency
  • Competitive price
  • Small MOQ

Applicable industries: Auto parts, aerospace, mold, heavy industry, medical equipment, home appliances

Main Parameters


Unit: mm

商品号
EDP NO.		 螺纹尺寸 Thread Size 精度
TAP Limit		 切削锥长lc 全长
L		 螺纹长
l		 颈长
ln		 柄径
Ds		 突顶尖Extemal Centre
1325610 M1x0.25 RH4 4P 30 5.5 － 3 有/YES
1325611 2P －
1325615 M1.2x0.25 4P 32 5.5 － 3 有/YES
1325616 2P －
1325620 M1.4x0.3 4P 34 7 － 3 有/YES
1325621 2P －
1325625 M1.6x0.35 4P 36 8 － 3 有/YES
1325626 2P －
1325630 M1.6x0.2 4P 36 8 － 3 有/YES
1325631 2P －
1325635 M1.7x0.35 4P 36 8 － 3 有/YES
1325636 2P －
1325640 M2x0.4 4P 40 8 － 3 有/YES
1325641 2P －
1325645 M2.3x0.4 4P 42 9.5 － 3 有/YES
1325646 2P －
1325650 M2.5x0.45 4P 44 9 5 － 3 有/YES
1325651 2P －
1325655 M2.6x0.45 4P 44 9.5 － 3 有/YES
1325656 2P －
1325660 M3x0.5 RH5 4P 46 9 18 4 有/YES
1325661 2P －
1325665 M4x0.7 RH6 4P 52 10 20 5 有/YES
1325666 2P －
1325670 M5x0.8 4P 60 11 22 5.5 有/YES
1325671 2P －
1325675 M6x1 RH7 4P 62 10 24 6 有/YES
1325676 2P －
1325678 RH9 2P －
1325688 M8x1.25 RH5 2P 70 12 － 6.2 －
1325689 RH7 4P －
1325690 2P －
1325692 RH8 2P －
1325696 M8x1 RH7 4P 70 12 － 6.2 －
1325697 2P －
1325701 M10x1.5 RH5 2P 75 15 － 7 －
1325702 RH7 4P －


(Note: We do offer thread which size is bigger than M10X1.5mm, please contact us for more details if you need!)

Product Details

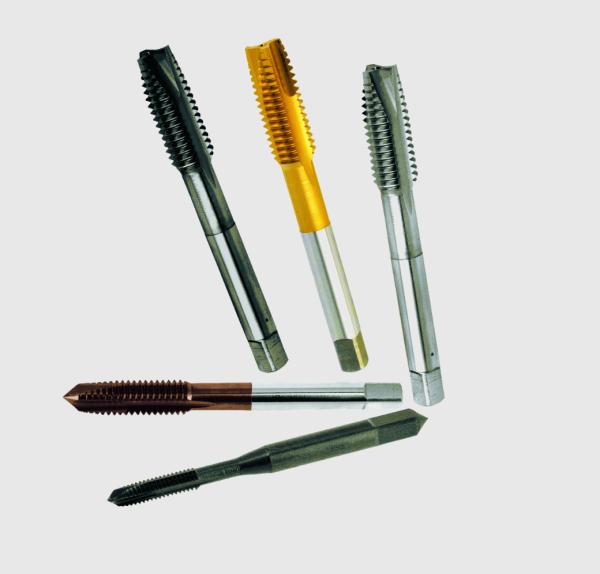

EX POT Series CNC Consumables Thread Forming Tap Solubility Resistant

FAQ

1. Is it all right to make customer's own brand name?
A: yes. we are available with OEM

2. Are you a manufactuer or trading company?
A:We are the manufacturer

3. Can you do the design for us?
A: yes. if you want a different control system design or higher column , we are available.

4 . What is your terms of delivery?
A: FOB shenzhen.

5. What's your payment term?
A: T/T OR L/C at sight.
