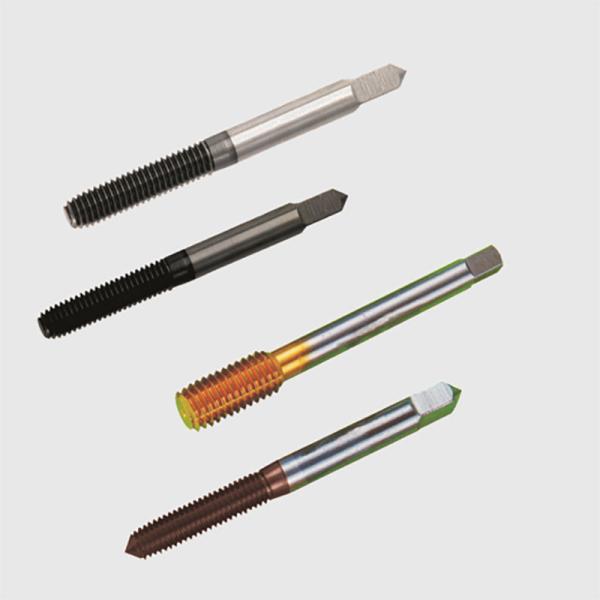

Medical Antiwear Carbide Hand Taps Multi Function For Aerospace
Medical Antiwear Carbide Hand Taps Multi Function For Aerospace
Specifications
Brand Name :
CTF
Model Number :
HSS-CO / CPM / CARBIDE
Place of Origin :
China
MOQ :
10 - 30
Payment Terms :
T/T
Supply Ability :
No Limited
Delivery Time :
5 - 8 work days
Packaging Details :
Wooden Box
Condition :
New
Materials :
Thread Forming Tap
Rigidity :
Extremely High
Series :
Extrusion (no chip) tap
Wear Resistance :
Good
Melting Resistance :
Good
Description

High Quality High rigidity Extrusion (No Chip) Tap Series High Hardness

Product Description

The product has the characteristics of tapping without chip discharge, so that the appearance of the inner thread machining surface is more perfect and smooth, and the thread strength is about 30 percent more accurate. The core diameter of extrusion tap increases, the torque strength is large, the tap life is long and not easy to break.

Main Features

  • Good Rigidity
  • High Hardness
  • High surface hardness, good wear resistance
  • Significant improvement in durability
  • Surface friction resistance is small, melting resistance is large
  • High speed cutting to improve efficiency
  • Competitive price
  • Small MOQ

Applicable industries: Auto parts, aerospace, 3C, mold, heavy industry, medical equipment

Main Parameters


Unit: mm

商品号
EDP NO.		螺纹尺寸 Thread Size精度
TAP Limit		切削锥长lc全长
L		螺纹长
l		颈长
ln		柄径
Ds		突顶尖Extemal Centre
1325610M1x0.25RH44P305.5－3有/YES
13256112P－
1325615M1.2x0.254P325.5－3有/YES
13256162P－
1325620M1.4x0.34P347－3有/YES
13256212P－
1325625M1.6x0.354P368－3有/YES
13256262P－
1325630M1.6x0.24P368－3有/YES
13256312P－
1325635M1.7x0.354P368－3有/YES
13256362P－
1325640M2x0.44P408－3有/YES
13256412P－
1325645M2.3x0.44P429.5－3有/YES
13256462P－
1325650M2.5x0.454P449 5－3有/YES
13256512P－
1325655M2.6x0.454P449.5－3有/YES
13256562P－
1325660M3x0.5RH54P469184有/YES
13256612P－
1325665M4x0.7RH64P5210205有/YES
13256662P－
1325670M5x0.84P6011225.5有/YES
13256712P－
1325675M6x1RH74P6210246有/YES
13256762P－
1325678RH92P－
1325688M8x1.25RH52P7012－6.2－
1325689RH74P－
13256902P－
1325692RH82P－
1325696M8x1RH74P7012－6.2－
13256972P－
1325701M10x1.5RH52P7515－7－
1325702RH74P－


(Note: We do offer thread which size is bigger than M10X1.5mm, please contact us for more details if you need!)

Product Details

Medical Antiwear Carbide Hand Taps Multi Function For Aerospace

FAQ

1. Is it all right to make customer's own brand name?
A: yes. we are available with OEM

2. Are you a manufactuer or trading company?
A:We are the manufacturer

3. Can you do the design for us?
A: yes. if you want a different control system design or higher column , we are available.

4 . What is your terms of delivery?
A: FOB shenzhen.

5. What's your payment term?
A: T/T OR L/C at sight.
