SXH SERIES CNC ABRASIVE SANDWIRE CUTTING MACHINE
Product Overview

The SXH Series CNC Abrasive Sandwire Cutting Machine is primarily designed for processing non-electrically conductive materials such as stone, non-metallic substances, and brittle materials. This advanced equipment enables irregular cutting operations and can process 2D graphics with exceptional precision.

  • Superior efficiency compared to traditional band saw blade cutting
  • Significant material savings and low consumable costs
  • High stability and exceptional cutting accuracy
  • Advanced feeding and accepting devices for optimal clamping stability
  • One-time material retrieval capability after processing
  • Optional high-pressure multi-point suction cup devices for complex materials
Customization Options

We offer comprehensive customization services to meet specific customer requirements and usage preferences. Our customization options include various model specifications, full equipment protection systems, and peripheral automation solutions tailored to individual operational needs.

Technical Specifications
Parameter SXH450CNC SXH630CNC SXH800CNC
Max. Rotation Diameter 450 mm 630 mm 800 mm
Max. Processing Height 350 mm 600 mm 800 mm
Max. Processing Length 600 mm 1400 mm 1500 mm
Number of Sand Wheel Grooves 4 4 4
Spindle Rotary Speed Range 0-5000 rpm 0-5000 rpm 0-5000 rpm
Main Motor Power 2.2 KW 3 KW 3 KW
Main Motor Type VFD/Servo VFD/Servo VFD/Servo
Sand Line Wheel Diameter 220 mm 300 mm 350 mm
X-axis Travelling 450 mm 630 mm 800 mm
Y-axis Travelling 600 mm 1400 mm 1500 mm
XY Axis Driven Servo Servo Servo
X-direction Fast Movement Speed 6 m/min 6 m/min 6 m/min
Y-direction Fast Movement Speed 6 m/min 6 m/min 6 m/min
Min. Setting Unit in X Direction 0.001 mm 0.001 mm 0.001 mm
Min. Setting Unit in Y Direction 0.001 mm 0.001 mm 0.001 mm
Repetitive Positioning Accuracy X-axis: 0.012 mm
Y-axis: 0.016 mm		 X-axis: 0.012 mm
Y-axis: 0.016 mm		 X-axis: 0.012 mm
Y-axis: 0.016 mm
Precision Pneumatic Wire Tensioning Air pressure control Air pressure control Air pressure control
Gas Source 0.6 MPa 0.6 MPa 0.6 MPa
Power Supply AC380V 50Hz AC380V 50Hz AC380V 50Hz
Whole Machine Power 4 KW 7 KW 7.5 KW
Servo Motor Output Torque X-axis: 7.16 Nm
Y-axis: 7.16 Nm		 X-axis: 21.5 Nm
Y-axis: 28.6 Nm		 X-axis: 21.5 Nm
Y-axis: 28.6 Nm
CNC System Weihong NC60C Weihong NC60C Weihong NC60C
Ordinary CNC Sand Line System XUL/HL XUL/HL XUL/HL
Cutting Control Program Jiangzhou Jiangzhou Jiangzhou
Machine Weight 2300 KG 5200 KG 2800 KG
Machine Size (L×W×H) 1800×1800×1450 3520×2000×2000 2400×1800×1850

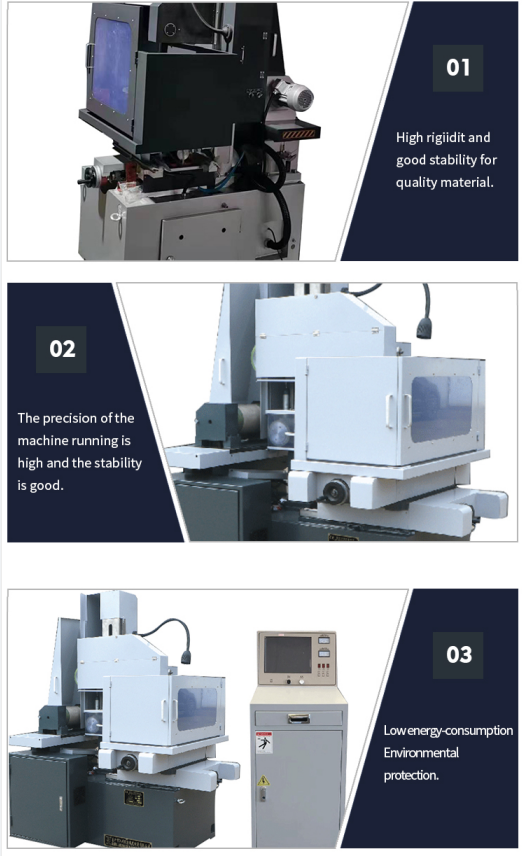

Product Images
