SXHD Series High Efficiency Precision Cutting Unidirectional Loop Type Abrasive Sand Wire Cutting Machine for Non-Conductive Materials
SXHD Series High Efficiency Precision Cutting Unidirectional Loop Type Abrasive Sand Wire Cutting Machine for Non-Conductive Materials
SXHD Series High Efficiency Precision Cutting Unidirectional Loop Type Abrasive Sand Wire Cutting Machine for Non-Conductive Materials
SXHD Series High Efficiency Precision Cutting Unidirectional Loop Type Abrasive Sand Wire Cutting Machine for Non-Conductive Materials
Specifications
Payment Terms :
L/C,D/P
Supply Ability :
10pices/per
Place of Origin :
China
MOQ :
1
Brand Name :
HANYANG
Certification :
CE
Delivery Time :
5-8 work days
Packaging Details :
standard package
Description
SXHD SERIES UNIDIRECTIONAL LOOP TYPE ABRASIVE SANDWIRE CUTTING
This advanced machine represents our latest innovation, delivering significant improvements in cutting efficiency and surface finish quality. The unidirectional sanding wire operates at high speeds, simultaneously cutting and grinding while allowing for cooling with working fluid. Designed for ease of operation with minimal vibration, it's ideal for processing hard, brittle materials including graphite, jade, and silicon crystals.
Technical Specifications
Model SXHD-7732 SXHD-7740 SXHD-7750 SXHD-7763
Worktable Size (mm) 380×600 410×710 596×880 720×1260
Y Axis Travelling (mm) 280 380 430 800
X Axis Travelling (mm) 320 400 550 630
Max. Loading Capacity (kg) 300 400 500 750
Max. Cutting Thickness (mm) 300-600 (customized as per actual requirement)
Max. diameter of rotating fixture (optional) (mm) φ300 φ400 φ500 φ600
Max. load capacity of rotating fixture (optional) (kg) 50 100 150 150
Abrasive sand wire specification (mm) 0.5-0.8
Abrasive sand wire running speed (m/s) ≥40
Cutting materials non-conductive materials such as graphite, jade, ceramics, etc
Working fluid pure water or general tap water, emulsion (determined according to the material)
Tension control precision pneumatic control
Machine total power (kW) ≤3
Machine Size (mm) 1660×1330×1700 1830×1490×1800 2010×1800×1900 2200×2200×1900
Application Overview

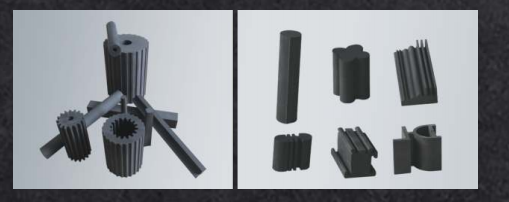

Specifically engineered for precision cutting of non-conductive materials, this system targets materials including graphite, ceramics, and acrylic (Plexiglass). It is also suitable for high-precision cutting, shaping, and contouring of jade and various non-metallic insulating materials. The machine effectively addresses industry challenges where traditional machine tools struggle with non-metallic, non-conductive materials, making it ideal for mold making, precision component machining, new material R&D, and craftwork production.
Performance Highlights
The equipment operates on standard 380V industrial power with a high-torque motor. It provides precise X/Y/Z-axis positioning and supports fine-angle cutting adjustments. Cutting speeds reach up to 6 m/min, significantly enhancing production efficiency. The complete product line supports customization of dimensions, load capacities, and travel ranges to meet specific production line requirements.
