HIWIN HGH45CA Linear Guideway Block 45mm Linear Stage For Machine Centers
HIWIN HGH45CA Linear Guideway Block 45mm Linear Stage For Machine Centers
HIWIN HGH45CA Linear Guideway Block 45mm Linear Stage For Machine Centers
HIWIN HGH45CA Linear Guideway Block 45mm Linear Stage For Machine Centers
HIWIN HGH45CA Linear Guideway Block 45mm Linear Stage For Machine Centers
HIWIN HGH45CA Linear Guideway Block 45mm Linear Stage For Machine Centers
HIWIN HGH45CA Linear Guideway Block 45mm Linear Stage For Machine Centers
HIWIN HGH45CA Linear Guideway Block 45mm Linear Stage For Machine Centers
HIWIN HGH45CA Linear Guideway Block 45mm Linear Stage For Machine Centers
HIWIN HGH45CA Linear Guideway Block 45mm Linear Stage For Machine Centers
Specifications
Brand Name :
HIWIN
Model Number :
HGH45CA
Certification :
DE1924083895474
Place of Origin :
CHINA TAIWAN
MOQ :
1
Price :
1-100 USD
Payment Terms :
T/T,L/C,D/A,D/P,Western Union
Supply Ability :
100000 pcs / per month
Delivery Time :
1-7 work days
Packaging Details :
Small or with carton box, Bulk order with Wooden box
Series :
HG
Model Size(mm) :
45 mm
No. of Blocks per Rail :
1
Rail Mounting Type :
R- Mounting From Top
Rail Length(mm) :
Max 4000mm, Butt-joint available
Preload Class :
Z0- Light Preload , ZA- Medium Preload, ZB-Heavy Preload
Material :
SNCM220 Carbon Steel
Dust Protection :
SS-standard
Y -Symmetrical (E1＝E2) First hole dimension :
Y= Symmetrical （E1=E2)
Installation :
Easy
Application :
NC lathe, EDM, measuring equipment
Smoothness :
Smooth
Description
①HIWIN HGH45CA Linear Guideway Block 45mm Linear Stage For Machine Centers

As a proud product of HIWIN's world-class manufacturing facilities in Taiwan, the HGH45CA 45mm Linear Guideway sets the benchmark for heavy-duty motion control in precision machine centers. This robust linear stage solution embodies HIWIN's decades of engineering excellence, delivering uncompromising performance for demanding industrial applications.

The HGH45CA incorporates HIWIN's proprietary high-capacity bearing technology, ensuring smooth, vibration-free movement critical for machining accuracy. Its reinforced construction features HIWIN's advanced load distribution system, providing exceptional rigidity and durability in continuous operation. The guideway's precision-ground surfaces and optimized preload design maintain HIWIN's legendary quality standards for positioning repeatability.Engineered specifically for CNC machining centers, large-format milling equipment, and industrial automation systems, this guideway showcases HIWIN's commitment to reliability. The thermal-stable performance and contamination-resistant sealing reflect HIWIN's holistic approach to motion control, trusted by machine tool builders worldwide.With HIWIN's global technical support and immediate availability, the HGH45CA delivers the perfect combination of power and precision that professionals expect from the industry's leading motion control brand.


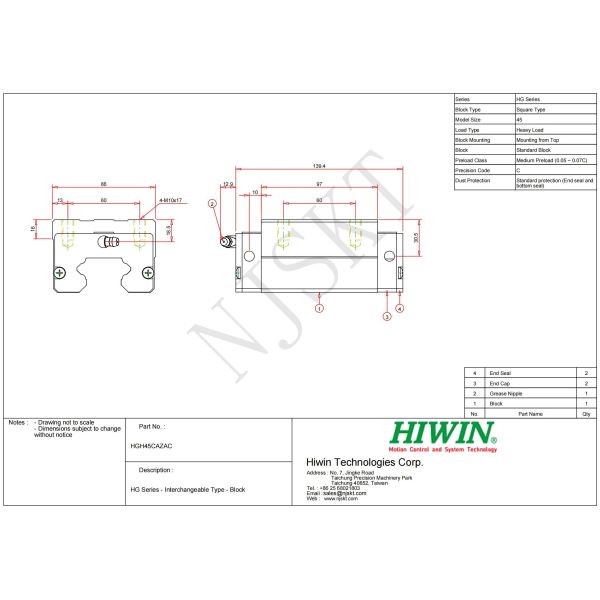

②Drawing of HGH45CA

HIWIN HGH45CA Linear Guideway Block 45mm Linear Stage For Machine Centers

③Model Number of HG Series
HIWIN HGH45CA Linear Guideway Block 45mm Linear Stage For Machine Centers

④Construction of HG Series
HIWIN HGH45CA Linear Guideway Block 45mm Linear Stage For Machine Centers
1.Rolling circulation system: Block, rail, end cap and retainer
2.Lubrication system: Grease nipple and piping joint
3.Dust protection system: End seal, bottom seal,bolt cap, double seals and scraper.
⑤Features of HG series
HG series linear guideways are designed with load capacity and rigidity higher than other similar products with circular-arc groove and structure optimization. It features equal load ratings in the radial, reverse radial and lateraldirections, and self-aligning to absorb installation-error. Thus,HIWIN HG series linear guideways can achieve a long life with high speed, high accuracy and smooth linear motion.
(1) Self-aligning capability
By design, the circular-arc groove has contact points at 45 degrees. HG series can absorb most installation errors due to surface irregularities and provide smooth linear motion through the elastic deformation of rolling elements and the shift of contact points. Self-aligning capability, high accuracy and smooth operation can be obtained with an easy
installation.
(2) Interchangeability
Because of precision dimensional control, the dimensional tolerance of HG series can be kept in a reasonable range, which means that any blocks and any rails in a specific series can be used together while maintaining dimensional tolerance. And a retainer is added to prevent the balls from falling out when the blocks are removed from the rail.
(3) High rigidity in all four directions
Because of the four-row design, the HG series linear guideway has equal load ratings in the radial, reverse radial and lateral directions. Furthermore, the circular-arc groove provides a wide-contact width between the balls and the groove raceway allowing large permissible loads and high rigidity.

⑥Actual product photo

HIWIN HGH45CA Linear Guideway Block 45mm Linear Stage For Machine Centers


⑦Measurement drawing
HIWIN HGH45CA Linear Guideway Block 45mm Linear Stage For Machine Centers

HIWIN HGH45CA Linear Guideway Block 45mm Linear Stage For Machine Centers

⑧HIWIN series
HIWIN HGH45CA Linear Guideway Block 45mm Linear Stage For Machine Centers

⑨top product recommendation
HIWIN HGH45CA Linear Guideway Block 45mm Linear Stage For Machine Centers

Send your message to this supplier
Send Now

HIWIN HGH45CA Linear Guideway Block 45mm Linear Stage For Machine Centers

Ask Latest Price
Watch Video
Product Detail
Brand Name :
HIWIN
Model Number :
HGH45CA
Certification :
DE1924083895474
Place of Origin :
CHINA TAIWAN
MOQ :
1
Price :
1-100 USD
Contact Supplier
video
HIWIN HGH45CA Linear Guideway Block 45mm Linear Stage For Machine Centers
HIWIN HGH45CA Linear Guideway Block 45mm Linear Stage For Machine Centers
HIWIN HGH45CA Linear Guideway Block 45mm Linear Stage For Machine Centers
HIWIN HGH45CA Linear Guideway Block 45mm Linear Stage For Machine Centers
HIWIN HGH45CA Linear Guideway Block 45mm Linear Stage For Machine Centers
