①HIWIN HGH25HA Linear Guideway Blocks Hiwin Linear Guide Rail

As a proud product of HIWIN's world-class manufacturing facilities in Taiwan, the HGH25HA Linear Guideway Block represents the pinnacle of precision engineering for industrial automation. This premium linear rail solution embodies HIWIN's decades of innovation in motion control technology, delivering unmatched reliability in demanding manufacturing environments.

The HGH25HA incorporates HIWIN's proprietary high-precision bearing technology, ensuring buttery-smooth linear motion perfect for high-end automation systems. Its rugged construction features HIWIN's signature multi-stage sealing system, offering superior protection against industrial contaminants while maintaining optimal performance in challenging conditions.

Designed for semiconductor equipment, CNC machinery, and heavy-duty automation, this guideway showcases HIWIN's commitment to durability and precision. The thermal-stable performance and maintenance-friendly design reflect HIWIN's user-centric engineering philosophy, trusted by global manufacturers across industries.

With HIWIN's global technical support and immediate availability, the HGH25HA delivers the perfect combination of performance and reliability that professionals expect from the industry's most respected motion control brand.

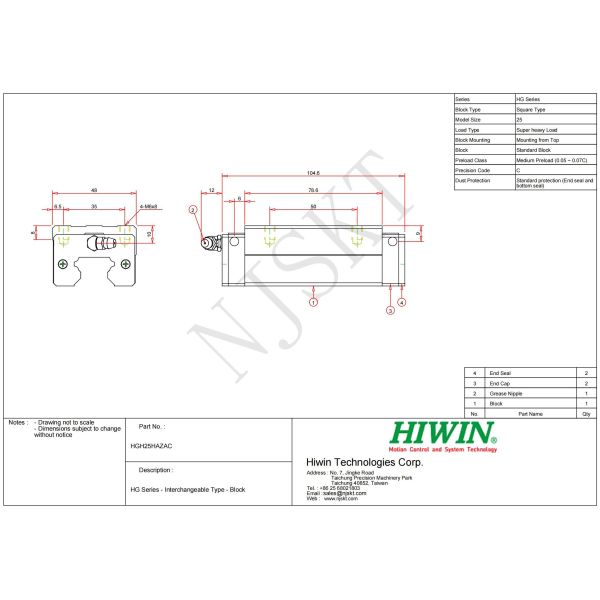

②Drawing of HGH25HA
HIWIN HGH25HA Linear Guideway Blocks Hiwin Linear Guide Rail
③Model Number of HG Series
HIWIN HGH25HA Linear Guideway Blocks Hiwin Linear Guide Rail

④Construction of HG Series
HIWIN HGH25HA Linear Guideway Blocks Hiwin Linear Guide Rail
1.Rolling circulation system: Block, rail, end cap and retainer
2.Lubrication system: Grease nipple and piping joint
3.Dust protection system: End seal, bottom seal,bolt cap, double seals and scraper.
⑤Features of HG series
HG series linear guideways are designed with load capacity and rigidity higher than other similar products with circular-arc groove and structure optimization. It features equal load ratings in the radial, reverse radial and lateral directions, and self-aligning to absorb installation-error. Thus, HIWIN HG series linear guideways can achieve a long life with high speed, high accuracy and smooth linear motion.
(1) Self-aligning capability
By design, the circular-arc groove has contact points at 45 degrees. HG series can absorb most installation errors due to surface irregularities and provide smooth linear motion through the elastic deformation of rolling elements and the shift of contact points. Self-aligning capability, high accuracy and smooth operation can be obtained with an easy
installation.
(2) Interchangeability
Because of precision dimensional control, the dimensional tolerance of HG series can be kept in a reasonable range, which means that any blocks and any rails in a specific series can be used together while maintaining dimensional tolerance. And a retainer is added to prevent the balls from falling out when the blocks are removed from the rail.
(3) High rigidity in all four directions
Because of the four-row design, the HG series linear guideway has equal load ratings in the radial, reverse radial and lateral directions. Furthermore, the circular-arc groove provides a wide-contact width between the balls and the groove raceway allowing large permissible loads and high rigidity.

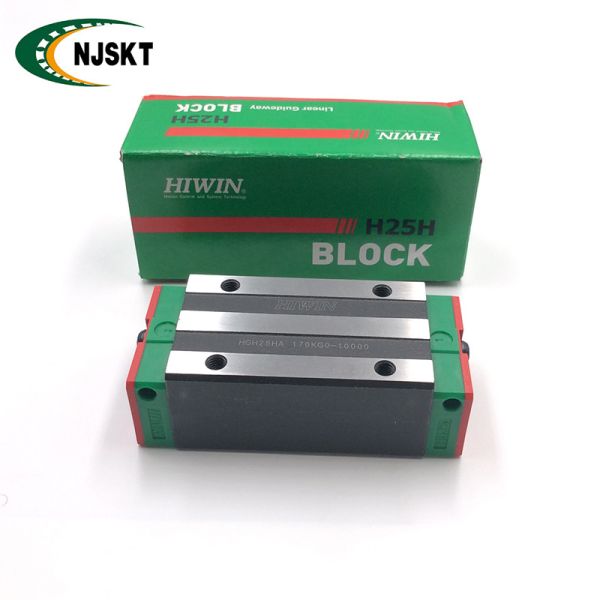

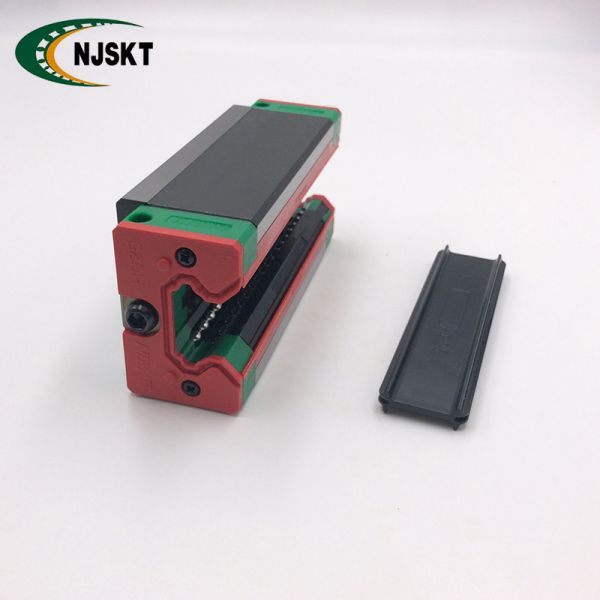

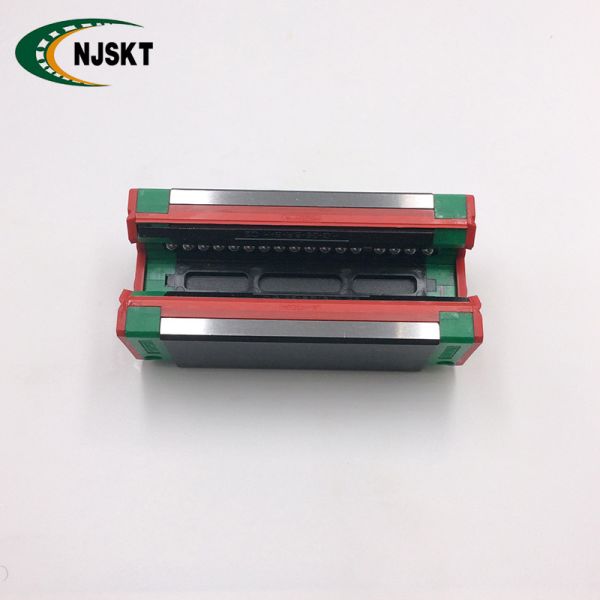

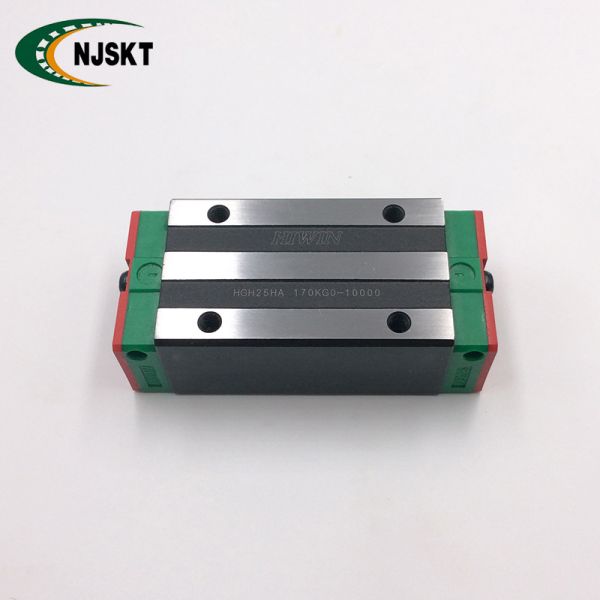

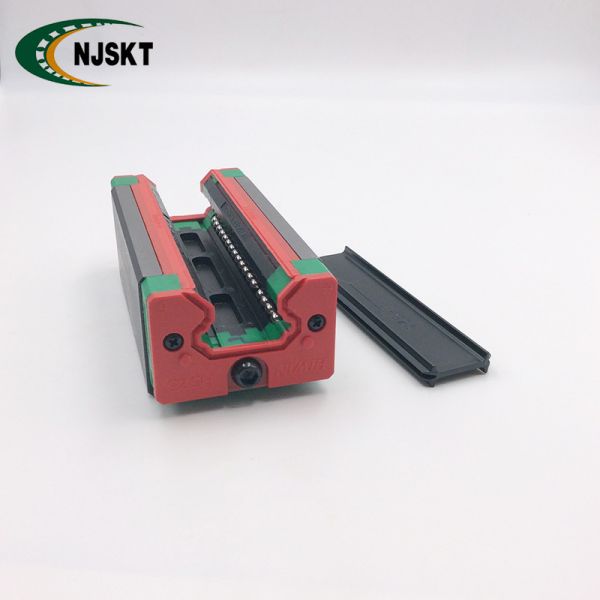

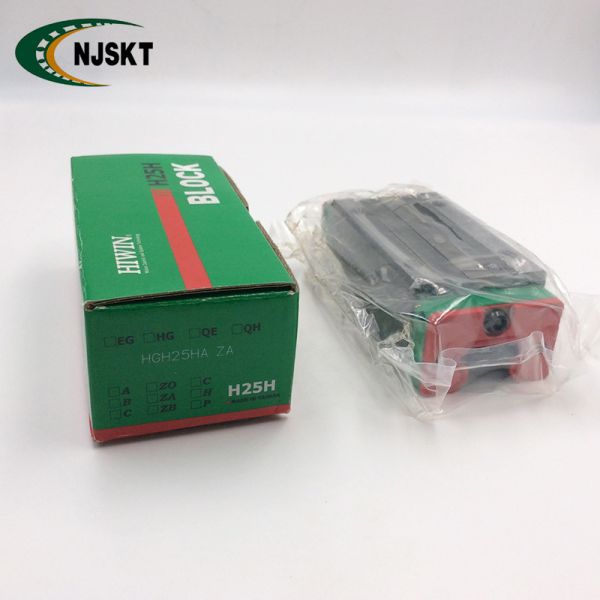

⑥Actual product photo

HIWIN HGH25HA Linear Guideway Blocks Hiwin Linear Guide Rail


⑦Measurement drawing
HIWIN HGH25HA Linear Guideway Blocks Hiwin Linear Guide Rail

HIWIN HGH25HA Linear Guideway Blocks Hiwin Linear Guide Rail

⑧HIWIN series
HIWIN HGH25HA Linear Guideway Blocks Hiwin Linear Guide Rail

⑨top product recommendation
HIWIN HGH25HA Linear Guideway Blocks Hiwin Linear Guide Rail
