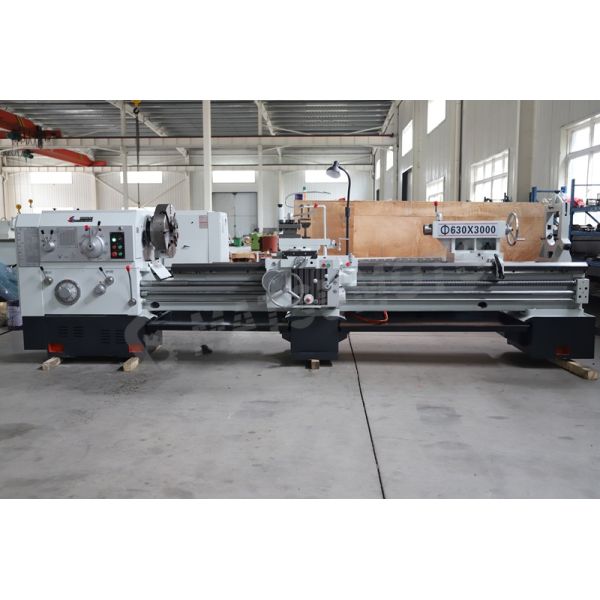

CW6263 Large Horizontal Metal Lathe Machine Universal Manual Machining Equipment

Specifications

Brand Name :

Matsumoto

Model Number :

CW6263

Certification :

Place of Origin :

China

MOQ :

Price :

$13500-15000

Payment Terms :

T/T

Delivery Time :

15 working days

Packaging Details :

plywood case

Max. Swing over bed :

630mm

Max. Swing Dia.over carriage :

350mm

Max. Work piece length :

1000/1500/2000/3000/4000/5000/6000mm

Main motor power :

11kw

Spindle speed series and range :

18/7.5-1000

Metric thread range(kinds) :

50/1-240

Description

Product Parameters:

CW series lathe machine is universal metal machining equipment for metal processing, mainly used for turning the internal and external cylindrical surface, conical surface and other rotating surfaces, and turning internal and external pipe threads such as metric, inch,module,DP threads etc, meanwhile this series is also used to dril holes in bar material and make oil groove, this series lathe is able to process metal materials including cast iron, steel and non-ferrous metals.

PROJECT	UNIT	CW6163B/CW6263B	CW6180B/CW6280B
Max. Swing over bed	mm	630	800
Max. Swing Dia.over carriage	mm	350	480
Max. Work piece length	mm	1000/1500/2000/3000/4000/5000/6000	1500/3000/4000/5000/6000/8000
Rotating diameter/effective width in saddle groove	mm	800/300	1000/310
Spindle through hole diameter and shaft head type	/	104/D11	104/D11
Cone of the front end of the spindle hole and the taper of the tip	/	120,1:20 MT5#	120,1:20 MT5#
Spindle speed series and range	r/min	18/7.5-1000	18/5.4-720
Series and range of longitudinal feed	mm/r	64/0.05-24.3	64/0.06-24.3
Metric thread range(kinds)	mm	50/1-240	50/1-240
Inch thread range(kinds)	T.P.I	26/14-1	26/14-1
Modulus thread range(kinds)	mm	53/0.5-120	53/0.5-120
Diameter pitch thread(kinds)	DP	24/28-1	24/28-1
Lateral stroke of lower tool post	mm	420	500
Upper tool post stroke	mm	200	200
Tail stock quill travel	mm	250	250
Tail stock quill taper	/	MT5#	MT5#
Main motor power	kw	11	11/15
Cooling pump motor power	w	120	180
Weight	kg	3600/3700/4100/4700/5800/6800/8500/8900	4900/5500/6100/6900/7500/9000
Dimension	mm	316013801450 366013801450 416013801450 515013801450 621013801450 739013801450 830013801450 930013801450	360014501630 515514501630 621014501630 815014501630 1050014501630

Details Images
