Specifications
Brand Name :
Matsumoto
Model Number :
CW61100
Certification :
CE
Place of Origin :
China
MOQ :
1
Price :
$15000-20000
Payment Terms :
T/T
Delivery Time :
15 working days
Packaging Details :
plywood case
Max. Swing over bed :
1100mm
Max. Swing Dia.over carriage :
800mm
Max. Work piece length :
1500/3000/4000/5000/6000mm
Rotating diameter/effective width in saddle groove :
1300/310mm
Upper tool post stroke :
200mm
Tail stock quill travel :
250mm
Description

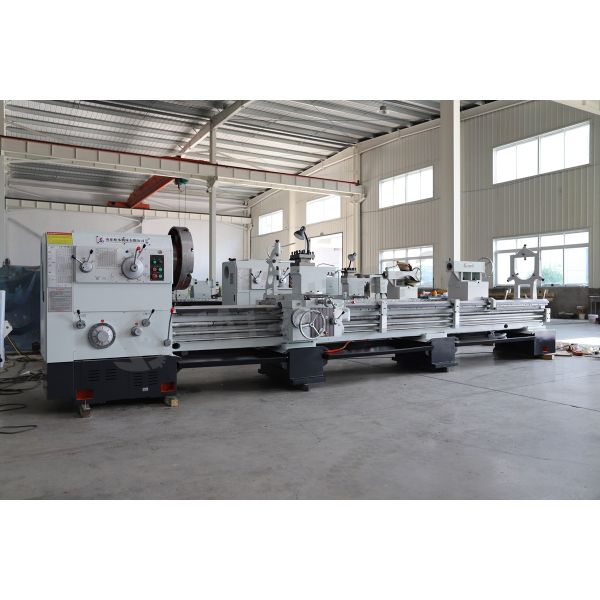

CW61100 High Quality Multifunctional Heavy Duty Lathe Machine Horizontal Manual Lathe

Description:

CW series manual lathe machine is universal metal machining equipment for metal processing, mainly used for turning the internal and external cylindrical surface, conical surface and other rotating surfaces, and turning internal and external pipe threads such as metric, inch,module,DP threads etc, meanwhile this series is also used to dril holes in bar material and make oil groove, this series lathe is able to process metal materials including cast iron, steel and non-ferrous metals.

PROJECT

UNIT

CW61100B

CW61125B

Max. Swing over bed

mm

1100

1250

Max. Swing Dia.over carriage

mm

800

900

Max. Work piece length

mm

1500/3000/4000/5000/6000

1500/2000/3000-12000

Rotating diameter/effective width in saddle groove

mm

1300/310

1300/310

Spindle through hole diameter and shaft head type

/

104/D11

105/D11

Cone of the front end of the spindle hole and the taper of the tip

/

120,1:20 MT5#

Metric 140

1:20

Spindle speed series and range

r/min

18/4.8-640

18/7.5-1000

Series and range of longitudinal feed

mm/r

64/0.05-24.3

64/0.05-24.3

Metric thread range(kinds)

mm

50/1-240

44/1-120

Inch thread range(kinds)

T.P.I

26/14-1

31/24-1

Modulus thread range(kinds)

mm

53/0.5-120

45/0.5-60

Diameter pitch thread(kinds)

DP

24/28-1

38 1/2-56

Lateral stroke of lower tool post

mm

500

580

Upper tool post stroke

mm

200

300

Tail stock quill travel

mm

250

300

Tail stock quill taper

/

MT5#

MT6#

Main motor power

kw

11/15

22

Cooling pump motor power

w

180

120

Weight

kg

5500/6100/6700/7500/8100

10200/11900/14500/15400/17900/20400/21200/22800

Dimension

(L*H*W)

mm

3660*1560*1790

5155*1560*1790

6210*1560*1790

7390*1560*1790

4600*2150*1825

6100*2150*1825

8100*2150*1825

9100*2150*1825

11100*2150*1825

14100*2150*1825

15100*2150*1825

17100*2150*1825

  • Details Images

CW61100 Multifunctional Heavy Duty Lathe Machine Horizontal Manual Lathe

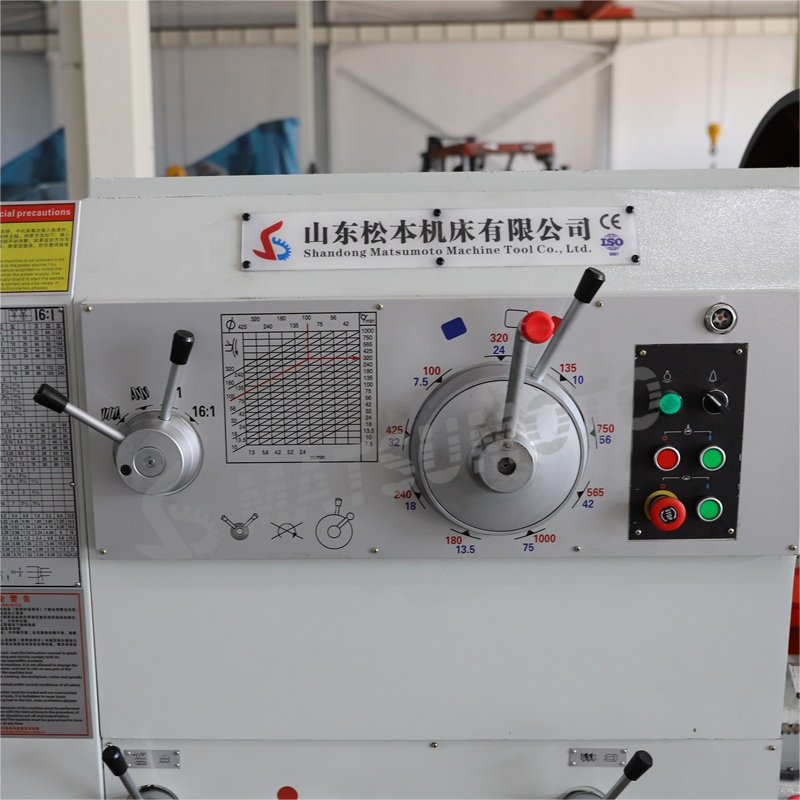

HEAD STOCK

Gears are hardened and precision ground low noise powerful cutting.

CW61100 Multifunctional Heavy Duty Lathe Machine Horizontal Manual Lathe

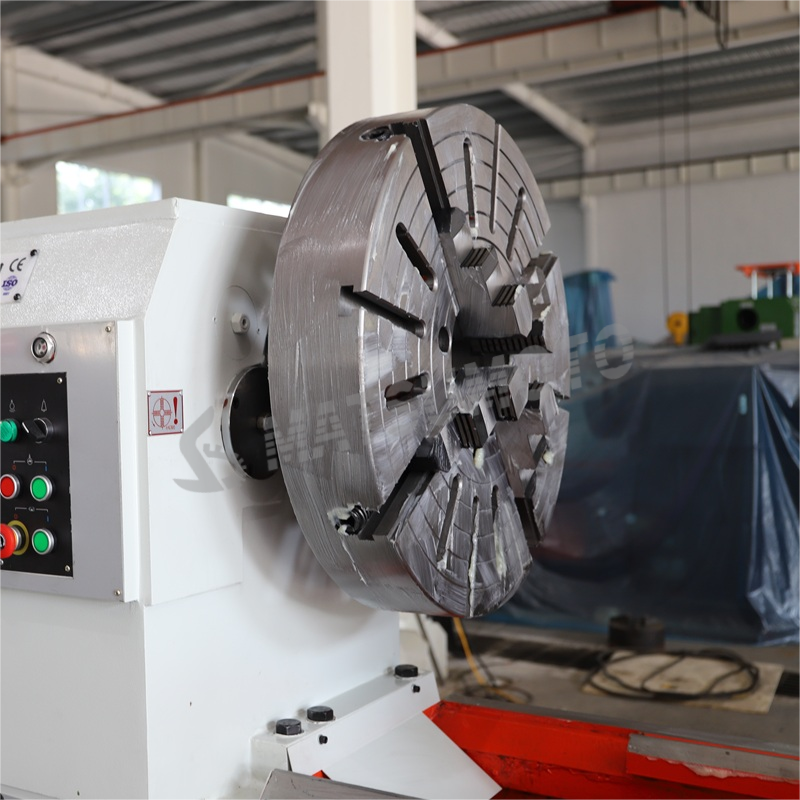

MANUAL CHUCK

Standard: Three jaws

Optional: Four jaws chuck and chuck guard

CW61100 Multifunctional Heavy Duty Lathe Machine Horizontal Manual Lathe

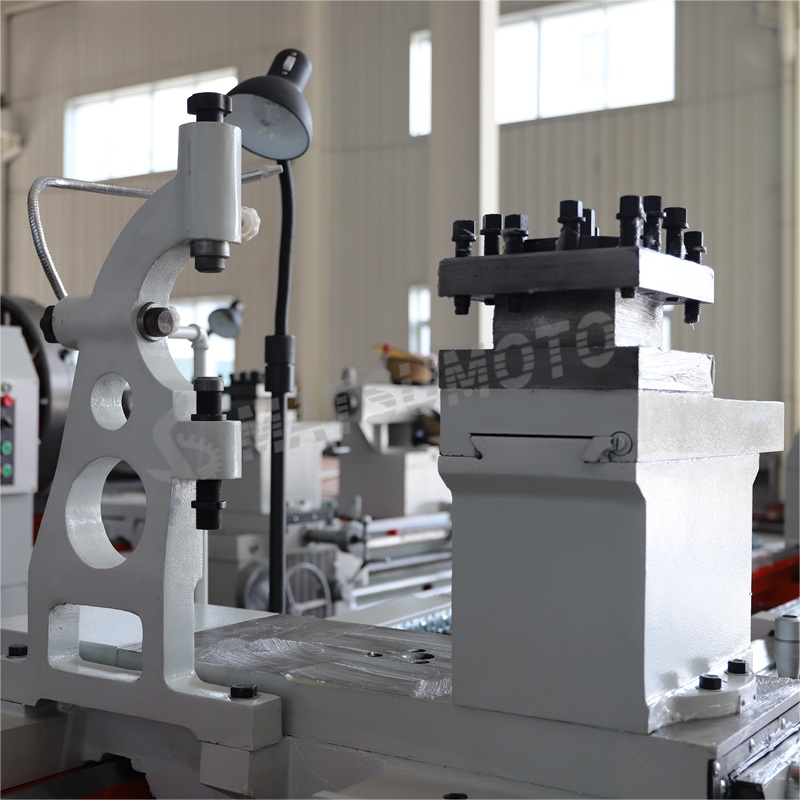

FOUR STATION TOOL POST

T-slotted compound slide with four-way tool post, 4 blades available at most, easy to change quickly.

CW61100 Multifunctional Heavy Duty Lathe Machine Horizontal Manual Lathe

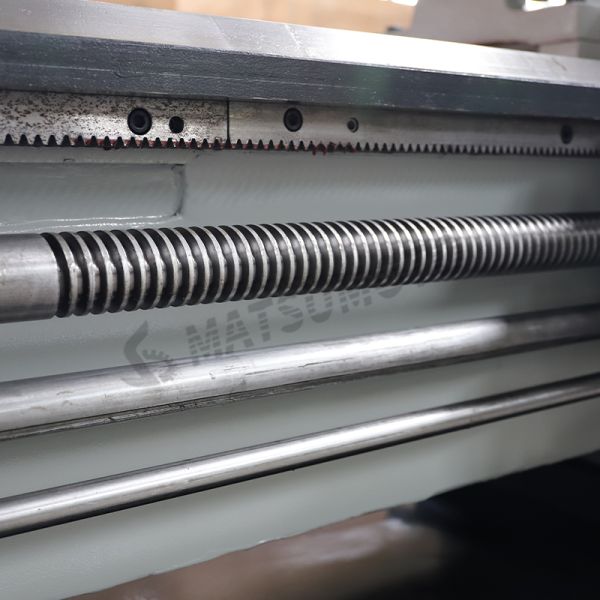

FEED SCREW

The screw has high precision and runs smoothly.

CW61100 Multifunctional Heavy Duty Lathe Machine Horizontal Manual Lathe

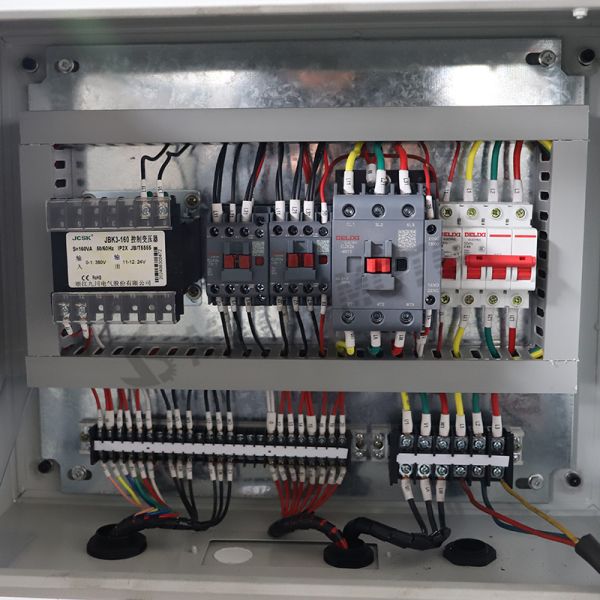

ELECTRIC CONTROL BOX

The wiring of the electric control box is neat and reasonable, and the original electric parts adopt brand accessories.

CW61100 Multifunctional Heavy Duty Lathe Machine Horizontal Manual Lathe

OPTIONAL ACCESSORIES

Two axis DRO or three axis DRO.
