Specifications
Brand Name :
Matsumoto
Model Number :
Z3050-16
Certification :
CE
Place of Origin :
China
MOQ :
1
Price :
$5500-6500
Payment Terms :
T/T
Delivery Time :
15 working days
Packaging Details :
plywood case
Maximum drilling capacity :
50mm
Distance from spindle axis to column(min/max) :
350-1600mm
Column diameter :
350mm
Spindle taper :
MT5
Spindle travel :
315mm
Packing dimensions :
2700*1120*2550mm
Description

Z3050-16 Heavy Duty Radial Drilling Machine High Quality Radial Drilling Machine

Description:

Z3050*16 Hydraulic radial drilling machine is a double column, all hydraulic radial drilling machine. With widely use of universal machine, suitable for in machinery manufacturing departments in the processing of small parts, drilling, reaming, reaming, countersink flat and tapping. In process equipment conditions, can also be used for boring.

The main performance characteristics:
1 . Counter balanced spindle

2 . Pressurized lubrication system

3 . Hydraulic clamping with push button controls

4 . Hydraulic preselected shifting of feeds and speeds

4 . Hardended and precision ground ways

5 . Hardened and ground gears and shafts

6 . Heavily ribbed cast iron base and arm

Model Z3050-16
Maximum drilling capacity 50mm
Distance from spindle axis to column(min/max) 350-1600mm
Column diameter 350mm
Spindle taper MT5
Spindle travel 315mm
Spindle speeds(range) 25-2000
Spindle speeds(number) 16
Spindle feeds(range) 0.04-3.2r/min
Spindle feeds(number) 16
Distance between spindle&working surface of base(min/max) 320-1220mm
Worktable dimensions 630*500*500mm
Base dimensions 2400*1000*200mm
Overall dimensions 2500*1060*2650mm
Spindle motors 5.5HP
G.W/N.W 3600/3500kgs
Packing dimensions 270*112*255cm

Details Images:

Z3050-16 Heavy Duty Radial Drilling Machine Hydraulic Double Column For Small Parts

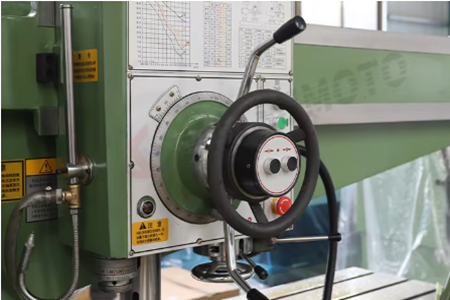

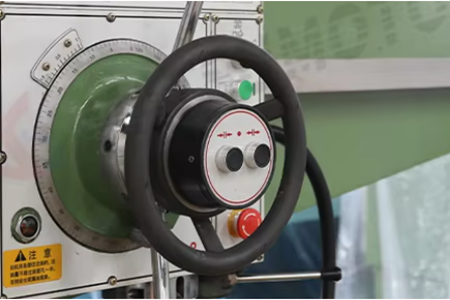

MECHANICAL SHIFT

Concentrated mechanical speed change. Spindle taper MT4 convenient and quick.
Z3050-16 Heavy Duty Radial Drilling Machine Hydraulic Double Column For Small Parts

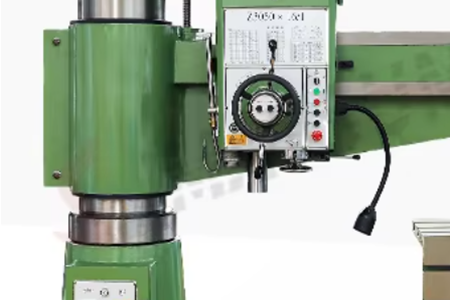

HEADSTOCK

High precision and high efficiency ensure the stable and reliable quality of the machine tool.
Z3050-16 Heavy Duty Radial Drilling Machine Hydraulic Double Column For Small Parts

RADIAL ARM CLAMPING

Radial arm mechanical clamping. High stability.
Z3050-16 Heavy Duty Radial Drilling Machine Hydraulic Double Column For Small Parts

COLUMN CLAMPING

Vertical column mechanical clamping. High stability and stronger.
Z3050-16 Heavy Duty Radial Drilling Machine Hydraulic Double Column For Small Parts

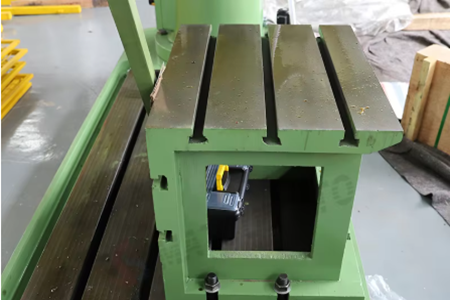

CAST IRON WORKTABLE

The cast iron worktable has been treated with aging to make it strong, stable and durable.
