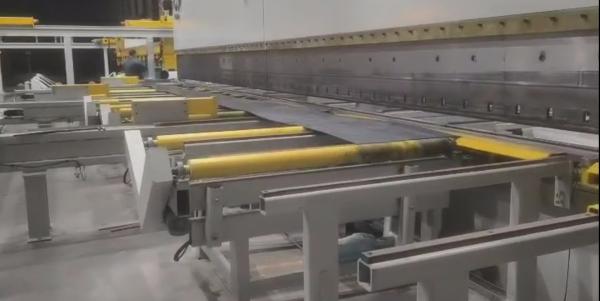

2-WE67K-650/6500 CNC Tandem Electric Press Brake Steel Plate Bending Machine
2-WE67K-650/6500 CNC Tandem Electric Press Brake Steel Plate Bending Machine
2-WE67K-650/6500 CNC Tandem Electric Press Brake Steel Plate Bending Machine
2-WE67K-650/6500 CNC Tandem Electric Press Brake Steel Plate Bending Machine
Specifications
Brand Name :
CMC
Model Number :
2-WE67K-650/6500
Place of Origin :
Wuxi,china
MOQ :
1 set
Price :
negotiation
Payment Terms :
Down Payment 30% T/T, 70% T/T Before Shipping
Supply Ability :
According requirement
Delivery Time :
According requirement
Packaging Details :
Metal pallet
Description

Quick Detail:

Metal Plates Hydraulic CNC Tandem Press Brake Machine for auto industry 2-WE67K-650/6500
Select And Use Delem DA53T CNC Control System
1. punch force: 13000KN
2. bending max steel sheet width :13000mm
3. bending max steel sheet thickness :16mm


TECHNICAL FEATURES
1 Type

Multi-machine Tandem Hydraulic

CNC electro-hydraulic synchro
2 Working force 2X600Ton
3 Length of table 2X6500mm
4 distance between frames 4800mm
5 Throat depth 1000mm
6 Open height 960mm
7 Stroke行程 320mm

8

Working

Speed

 Unload 80mm/s
Working 7.5mm/s
Return 75mm/s
9 Main motor 2x45Kw
10 CNC system

Type: DELEM DA 53T

Delem Co., Netherlands

2 Axis(Y1,Y2)+ table crowing system
11 Bending toolings As per customer's requirement
12

Main Electric Elements in cabinet

 Schneider
13

Seal in the cylinders

 SKF or NOK type
14 Hydraulic pump SUNNY(HYTEK) (USA Brand)
15

Main hydraulic component

 BOSCH-Rexroth, Germany
16 Raster displayer FAGOR, Spain
17 Weight 2x63500kgs
18

Overall size(mm) LxWxH

 2-6750x3140x5670(Machine height above workshop floor is 4225)
19 Packing: The machine should be disassemble during transportation. Our engineer should go to customer to assemble and adjust it.


Competitive Advantage:

1) Our machine performance quality and cheap, well known in the light pole machine industry.
2) One year guarantee.
3) Fast and high quality after-sales service.
4) We can design the machines according to customers’ special requirement.
5) We have professional team for service.
