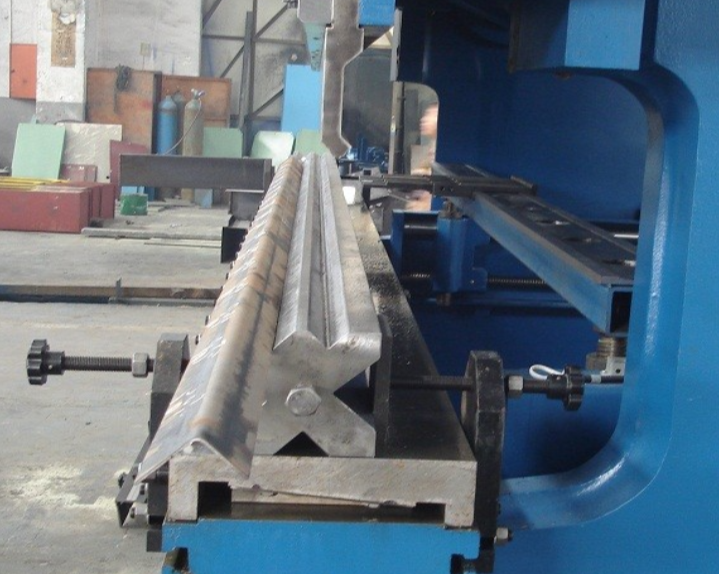

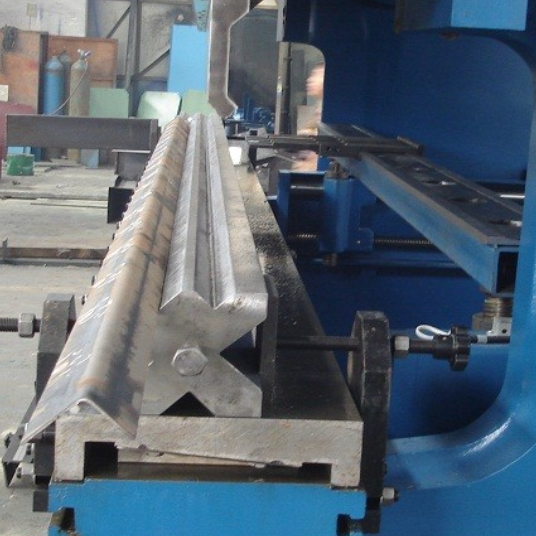

2×320T CNC Tandem Hydraulic Press Brake Machine with DA53T Control System
2×320T CNC Tandem Hydraulic Press Brake Machine with DA53T Control System
2×320T CNC Tandem Hydraulic Press Brake Machine with DA53T Control System
2×320T CNC Tandem Hydraulic Press Brake Machine with DA53T Control System
2×320T CNC Tandem Hydraulic Press Brake Machine with DA53T Control System
2×320T CNC Tandem Hydraulic Press Brake Machine with DA53T Control System
Specifications
Working Force :
2 × 320 Ton
Stroke :
250 mm
Throat Depth :
720 mm
Machine Type :
CNC Tandem Press Brake
Motor Power :
2 × 22 kW
Place of Origin :
Wuxi,china
Brand Name :
CMC
Model Number :
2-WE67K-300/6000
MOQ :
1 set
Price :
negotiation
Packaging Details :
Metal pallet
Delivery Time :
According requirement
Payment Terms :
T/T
Supply Ability :
According requirement
Axis Control :
Y1, Y2
Working Length :
2 × 6000 mm
Control System :
DELEM DA53T
Description

The WE67K-300/6000 CNC Tandem Press Brake is a heavy-duty hydraulic bending machine designed for large steel plate forming applications. It adopts a dual-machine tandem electro-hydraulic synchronization system, enabling two press brake units to work in coordinated operation for long-length and heavy-duty bending requirements.

Technical Specifications
Main Parameters
Item Specification
Machine Type Tandem Hydraulic CNC Press Brake
Working Force 2 × 320 Ton
Working Length 2 × 6000 mm
Distance Between Frames 4800 mm
Throat Depth 720 mm
Open Height 750 mm
Stroke 250 mm
CNC Control System DELEM DA53T
Controlled Axis Y1, Y2
Main Motor Power 2 × 22 kW High Efficiency Motor
Machine Weight 2 × 34500 kg
Overall Dimension 2 × 6200 × 3065 × 4832 mm
Working Speed
Item Specification
Unloading Speed 70 mm/s
Working Speed 7.5 mm/s
Return Speed 75 mm/s
Hydraulic & Electrical System
Item Specification
Hydraulic System Industrial high-pressure hydraulic system
Hydraulic Pump High-efficiency industrial pump
Hydraulic Seals SKF type seals
Electrical Components Schneider electrical system
Linear Encoder Fagor precision encoder
CNC Control System

The machine is equipped with DELEM DA53T CNC control system, providing stable and precise bending operation.

  • Y1 / Y2 axis independent control
  • Bending program management
  • Hydraulic synchronization control
  • Parameter setting and adjustment

The system ensures stable performance for standard industrial bending applications.

Machine Structure Features
  • Electro-hydraulic synchronized tandem system
  • Heavy-duty welded frame structure
  • Mechanical crowning compensation system
  • High rigidity machine frame for large plate bending
  • Modular structure for transportation and installation

The structure is designed for long workpiece stability and high load resistance.

2×320T CNC Tandem Hydraulic Press Brake Machine with DA53T Control System

Application Industry

This CNC tandem press brake is widely used in:

  • Steel structure fabrication
  • Steel tower manufacturing
  • Heavy machinery production
  • Large metal sheet processing
  • Industrial metal forming industry

It is suitable for high-strength and large-size steel plate bending operations.

Packaging & Installation
  • Machine will be disassembled for transportation
  • Protective plastic cover packing
  • On-site assembly and commissioning support available
  • Engineer installation guidance provided if required
Key Advantages
  • Tandem structure for extra-long workpiece bending
  • Stable electro-hydraulic synchronization system
  • Suitable for heavy-duty steel plate processing
  • High rigidity frame design
  • Industrial-grade hydraulic and electrical components
  • Flexible installation and OEM customization support
