Press brake tooling punch and die set is designed for CNC and hydraulic press brake machines used in metal sheet bending applications. The tooling controls bending angle, forming shape, and processing accuracy by matching different press brake machines and bending requirements.

We manufacture various types of press brake tooling, including:

• Standard punch and die sets
• CNC press brake tooling
• Goose neck punch tools
• Customized bending tools

The tooling is suitable for different bending applications such as steel plates, stainless steel sheets, and industrial metal fabrication.

Available materials:

• 42CrMo (42CrMo4 / SCM440 / 4140)
• T7 tool steel

The raw material is selected according to international material standards to provide suitable hardness, wear resistance, and mechanical strength for repeated bending operations.

Key processing features:

• Precision grinding process
• Dimensional tolerance: ± 0.01mm
• Consistent working height
• Accurate parallelism
• Stable installation and replacement

Each tooling piece can be tracked with an individual serial number after quality inspection.

Press brake tooling is widely used in:

• Sheet metal fabrication
• Steel structure manufacturing
• Electrical cabinet production
• Machinery manufacturing
• Metal forming industries

Suitable for:

• CNC press brake machines
• Hydraulic press brake machines
• Customized bending systems

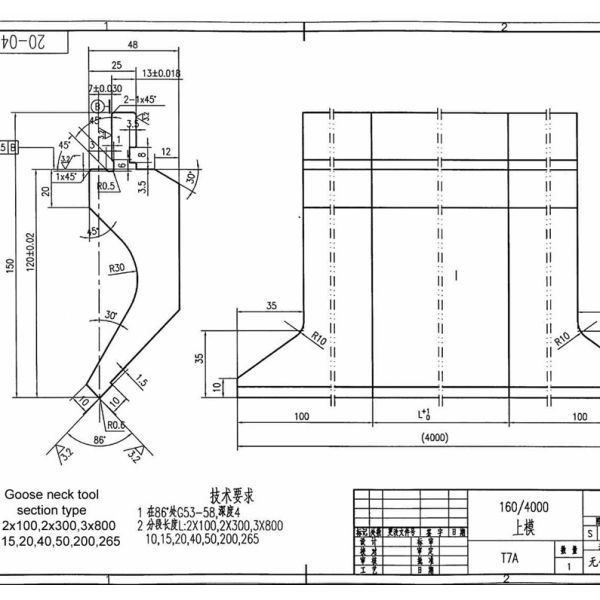

Goose neck punch design provides additional clearance for deeper bending applications.

Advantages:

• Suitable for box bending
• Improved workpiece clearance
• Flexible bending operation

Our press brake tooling production includes:

• Tool design
• Material processing
• Heat treatment
• Precision grinding
• Quality inspection
• Customized production

We support OEM and customized tooling solutions according to machine requirements and bending specifications.

• More than 10 years manufacturing experience
• Professional tooling design capability
• ISO9001 quality management system
• Precision machining process
• Customized tooling service
• Production directly from manufacturer
• Suitable for various press brake applications
