320T×6000mm CNC Tandem Hydraulic Press Brake, DELEM DA53T Controlled
320T×6000mm CNC Tandem Hydraulic Press Brake, DELEM DA53T Controlled
320T×6000mm CNC Tandem Hydraulic Press Brake, DELEM DA53T Controlled
320T×6000mm CNC Tandem Hydraulic Press Brake, DELEM DA53T Controlled
320T×6000mm CNC Tandem Hydraulic Press Brake, DELEM DA53T Controlled
320T×6000mm CNC Tandem Hydraulic Press Brake, DELEM DA53T Controlled
320T×6000mm CNC Tandem Hydraulic Press Brake, DELEM DA53T Controlled
320T×6000mm CNC Tandem Hydraulic Press Brake, DELEM DA53T Controlled
320T×6000mm CNC Tandem Hydraulic Press Brake, DELEM DA53T Controlled
320T×6000mm CNC Tandem Hydraulic Press Brake, DELEM DA53T Controlled
Specifications
color :
customized
Punch Force :
2×6000KN dual machine structure
Maximumbendingforce :
Ranges from 1000kN to 4000kN
Controlsystem :
Advanced CNC control system with touch screen
Brand Name :
CMC
Model Number :
2-WE67K-320/6000
Place of Origin :
Wuxi, Jiangsu, China
MOQ :
1 set
Price :
negotiable
Payment Terms :
T/T,L/C
Supply Ability :
According to specific requirement
Delivery Time :
According to requirement
Packaging Details :
Suitable for container shipment, both marine and inland transportation
Oem Service :
Available
Machine Type :
CNC / Hydraulic Press Brake
Key Selling Points :
Long Service Life
Weight :
2 × 45000 kg
Description

CNC Tandem Hydraulic Press Brake Model 2-WE67K-320/6000

Application

Designed for manufacturing light poles and high masts

Technical Specifications

Feature Specification
Type Multi-machine Tandem Hydraulic CNC electro-hydraulic synchro
Working Force 2 × 320 Ton
Length of Table 2 × 6000 mm
Distance Between Frames 5200 mm
Throat Depth 750 mm
Open Height 950 mm
Stroke 320 mm
Working Speed Unload: 60mm/s
Working: 7mm/s
Return: 60mm/s
Main Motor 2 × 30 kW
CNC System Type: DELEM DA53T (Delem Co., Netherlands)
2 (Y1,Y2) + table crowning system
Hydraulic Pump SUNNY (HYTEK) USA brand made in China
Linear Raster Displayer Sensor FAGAR, SPAIN
Main Electric Elements Schneider, France Brand
Weight 2 × 45000 kg
Overall Size (L×W×H) 2 × 6200 × 2710 × 5696 mm
Above floor height: 4500 mm
Total length with side unloading system: 17500 mm
Total width with front support: 4040 mm
Packing The machine will be disassembled during transportation

Press Brake Tooling Details

Option Description
Standard One set up tool holder, thickness 18mm suitable for street pole. L=14 Meters
Option 1 One set up tool for Octagonal street pole, Min. 60mm OD octagonal taper type light pole. L=14 Meters
Option 2 One set multi V bottom die for Octagonal street pole and high mast pole 150x150, 14 Meters
Option 3 Double taper rate conical pole tool. Taper rate 11/1000 (diameter 60-236), 13/1000 (diameter 60-268), thickness of pole: 3-4mm. 7 times forming type conical tool suitable for conical pole. Total length of mold 16 meters
Option 4 Conical up tool support on both side up holder, 6.5m, for big side of the up tool
Option 5 Pushing type Light pole side unloading system
Option 6 Remote diagnosis function. The machine supplier can assist the customer in remote fault diagnosis and remote parameter adjustment for quick production resumption
Option 7 Light pole auto bending system including: Steel plate holding trolley, Loading crane, Steel plate lateral roller and holding rack, CNC plate feeding system, Side position device, Extension of side unloading system, Pole side discharge system and storage rack
Option 8 Spare parts (for 320 ton model)

Main Performance Features

  • Y1, Y2 Axis - Two linear scales installed at both sides of ram to control cylinders
  • The frame is composed of tank, worktable, left and right housings and ram for high strength and good rigidity
  • Synchronization working principle using electric-hydraulic proportional valve to ensure cylinder synchronization
  • Raster displayers installed on "C" plates to prevent deflection effects on measuring and controlling precision
  • Two-unit synchronization controlled by CNC system (Delem) for high precision operation
  • Computer interface allows operator communication with machine, automatic bending force calculation and adjustment
  • Equipped with good guiding system, position measuring system and hydraulic balance system
  • Worktable compensation unit to make up for deflection during operation
  • Cylinder surface with good wearing and heat treatment for excellent lubrication and long service life

Machine Views

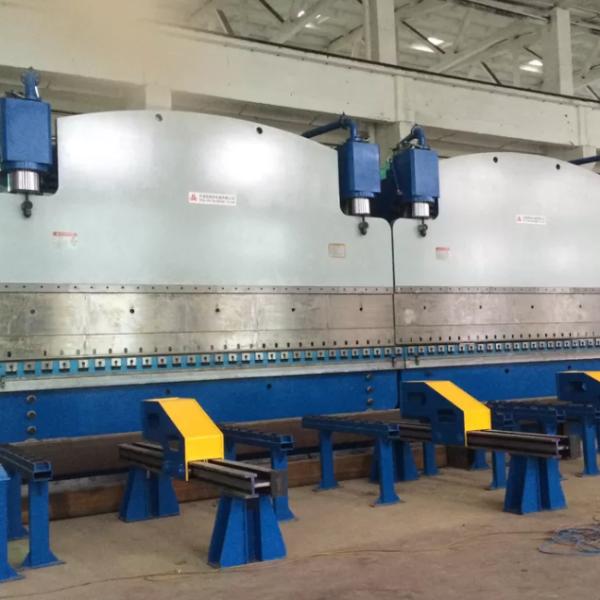

Front View

320T×6000mm CNC Tandem Hydraulic Press Brake, DELEM DA53T Controlled
Front view of press brake
320T×6000mm CNC Tandem Hydraulic Press Brake, DELEM DA53T Controlled
Control panel detail

Side View

320T×6000mm CNC Tandem Hydraulic Press Brake, DELEM DA53T Controlled
Side view of press brake
320T×6000mm CNC Tandem Hydraulic Press Brake, DELEM DA53T Controlled
Structural detail

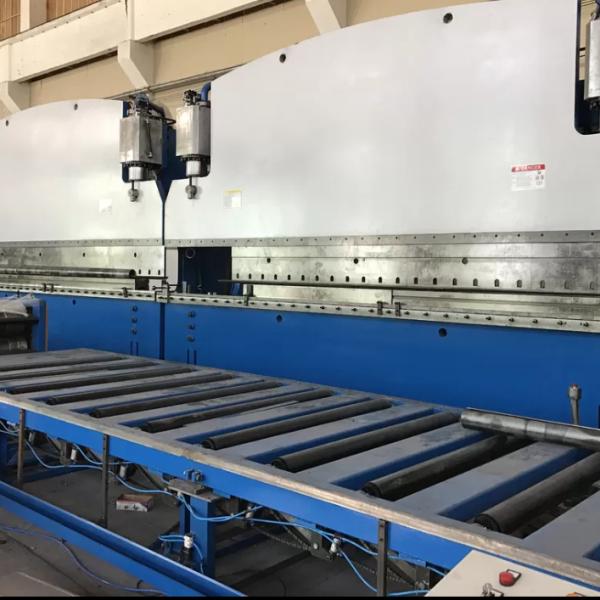

Side Unloading System

320T×6000mm CNC Tandem Hydraulic Press Brake, DELEM DA53T Controlled
Side unloading system
