Specifications
Payment Terms :
FOB
Name :
JSSCD-130NC/P CNC High Speed Circular Saw Machine(Horizontal-Push)
Condition :
New
Dimension :
2230x1800x1890
Use :
Material cutting
Cuttable material :
Carbon steel，Stainless steel，Alloy steel，Aluminum，Aluminum alloy，Copper，Copper alloy，Titanium alloy，PA
Application :
Automobile manufacturing，Aerospace，Rail transit，Mechanical equipment，Hardware tools，Ship building，Building material，Pipeline engineering，Mold manufacturing，Electronics manufacturing
Mechanical control :
Intelligent control，Automation
Saw type :
Straight cut
Cutting precision :
±0.05mm
Feeding precision :
±0.1mm
FAT :
Sample trial cutting verification
Safety protection devices :
Emergency braking，Anti-splash shield
Hydraulic oil :
Reusable
Cutting debris removal device :
Chain plate chip conveyer
Place of Origin :
China
Brand Name :
JSSCD
Model Number :
JSSCD-130NC/P
MOQ :
1
Packaging Details :
depending on the machine model
Delivery Time :
7-60 work days
Certification :
HB24Q00435R0S HB24E0025 HB24S00242R0S8R0S
Supply Ability :
500 Sets Per Year
Description
JSSCD-130NC/P CNC High Speed Circular Saw Machine (Horizontal-Push)

This CNC high-speed circular saw machine delivers exceptional efficiency and precision for metal profile cutting, particularly in horizontal cutting applications. Combining high-speed cutting, intelligent control, precision machining, and eco-friendly design, it serves as a cornerstone of modern metal processing lines with its robust performance and reliability.

Key Features
  • Horizontal Push Cutting Technology: AC servo motor-driven ball screw ensures smooth, controllable cutting process
  • Efficient Clamping System: Hydraulically driven horizontal/vertical fixtures reduce changeover frequency and enhance material adaptability
  • Precision Maintenance Mechanism: Gear backlash compensation and intelligent lubrication systems maintain long-term accuracy
  • Advanced CNC System: Precise control of cutting parameters with intuitive human-machine interface
  • Optional High-Efficiency Feed System: Enables continuous automatic material supply for batch processing
  • Safety & Maintenance Features: Saw blade chip removal, workpiece separator, and vibration prevention devices
Technical Specifications
Model Unit JSSCD-130NC/P
Mainframe dimensions mm 2230*1800*1890
Bar & round pipe mm 30-130
Angle bar & square bar mm 30-115
Saw blade size mm φ400*2.7*φ40
Spindle motor power KW 15
Spindle speed rpm 20-120
Feed servo motor power KW 2
Hydraulic drive motor power KW 2.25(4p)
Rated pressure of hydraulic system mpa 5.5
Hydraulic oil capacity L 100
Product Images

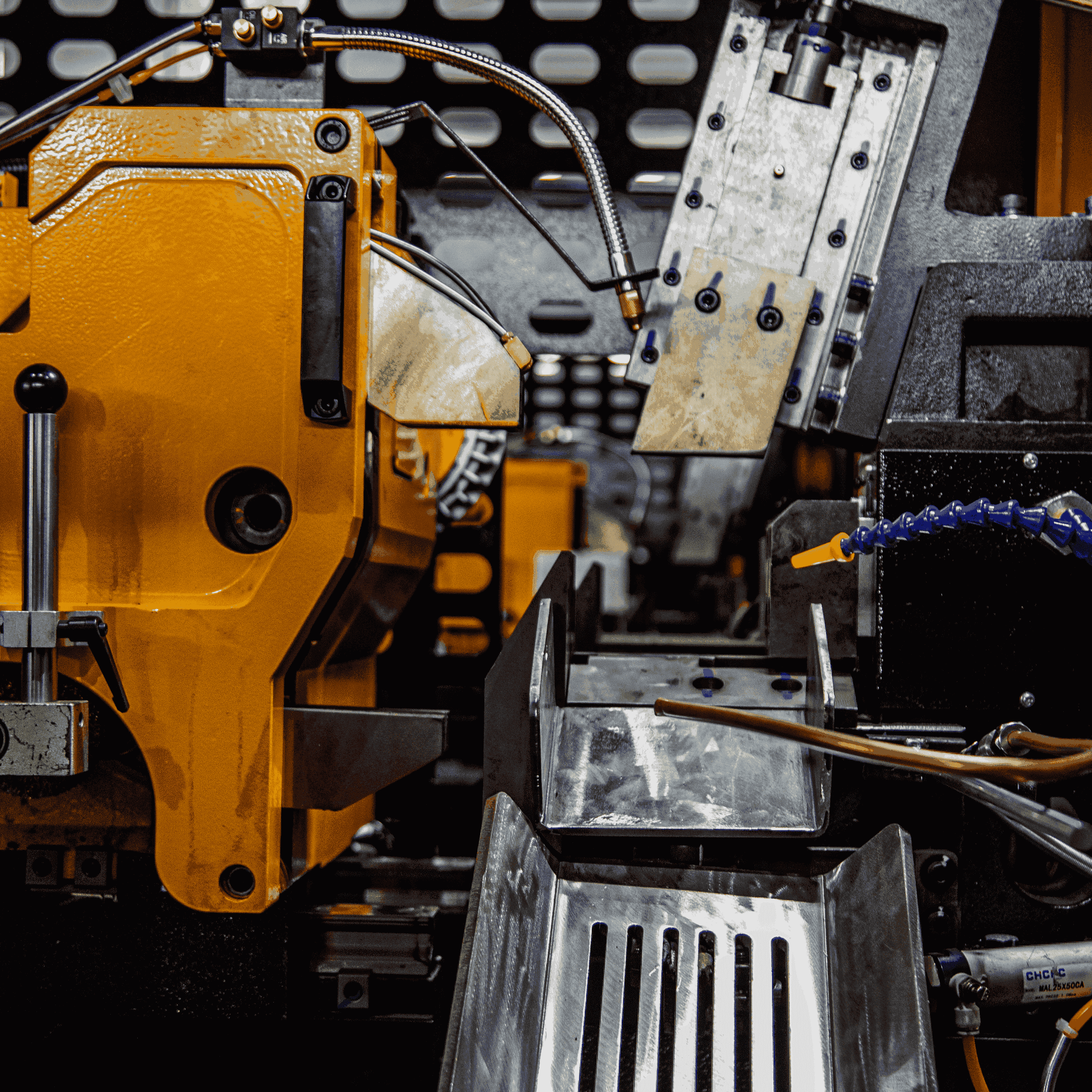

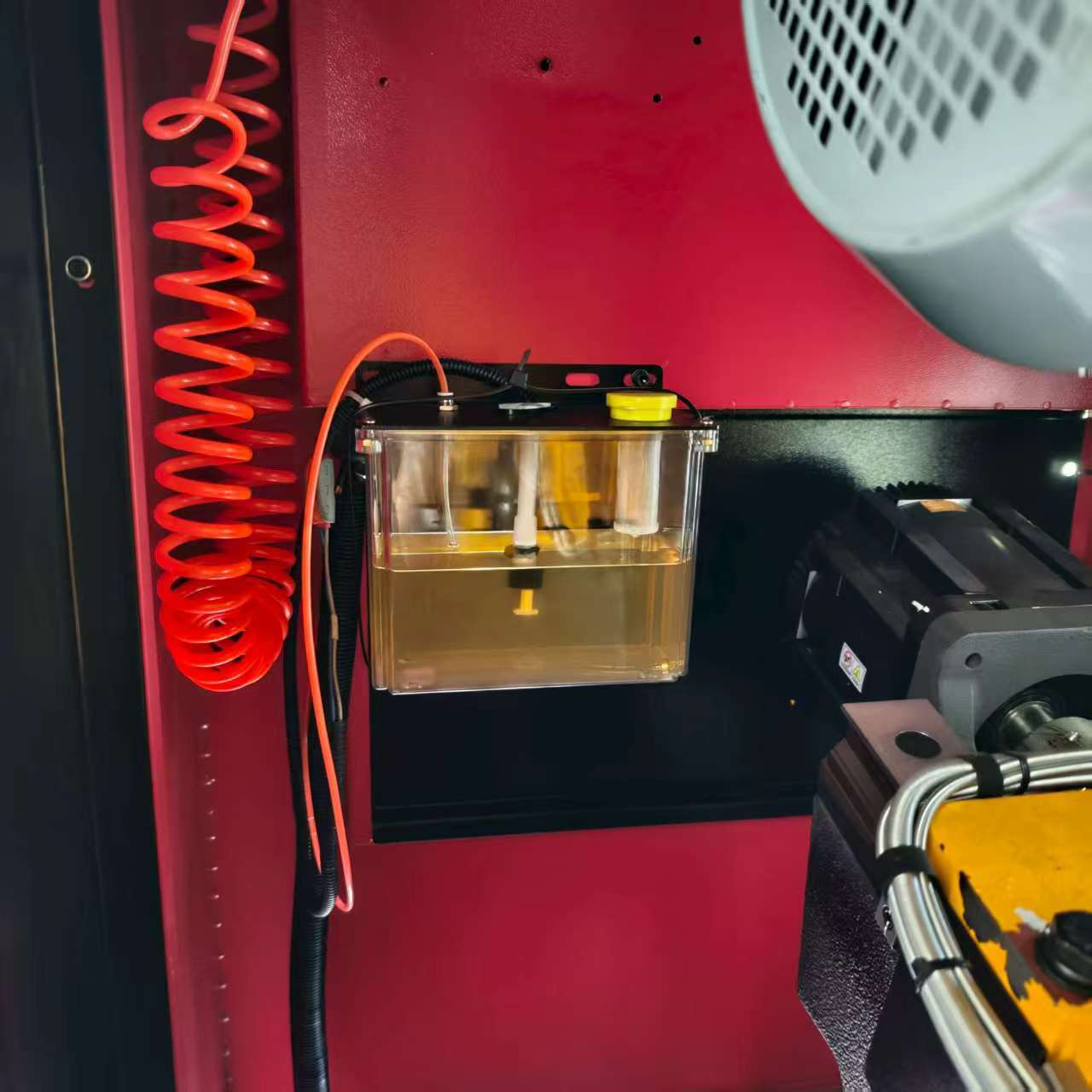

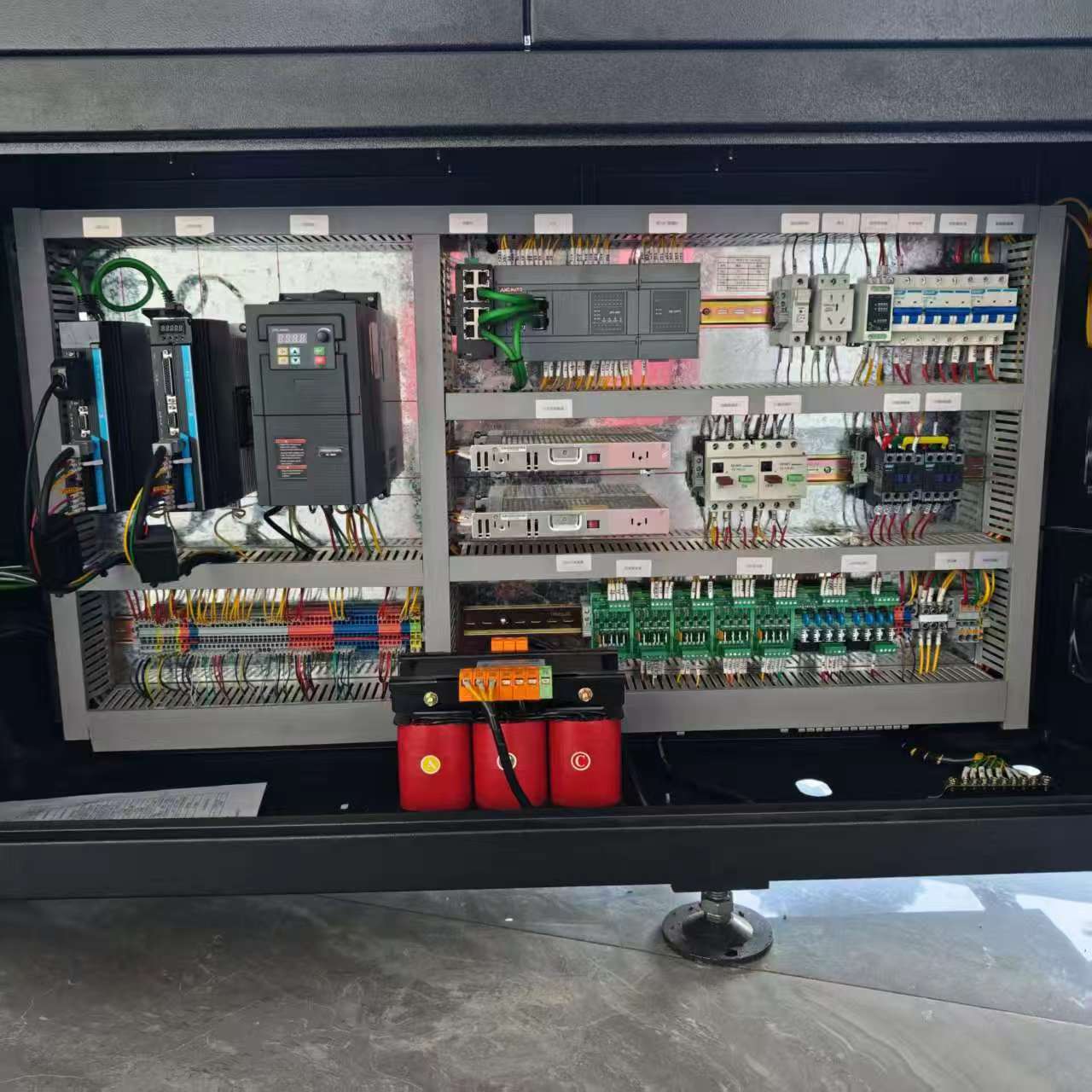

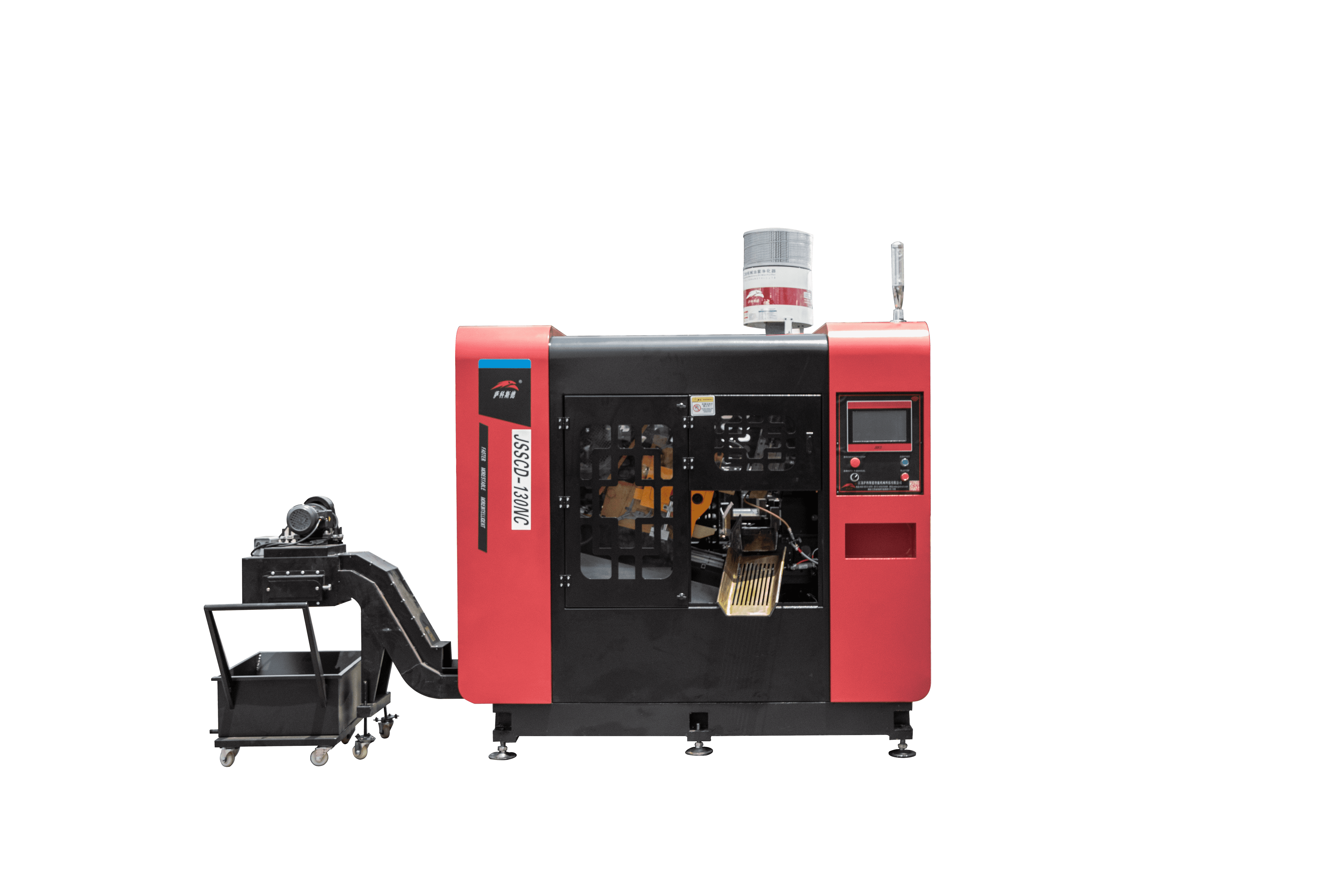

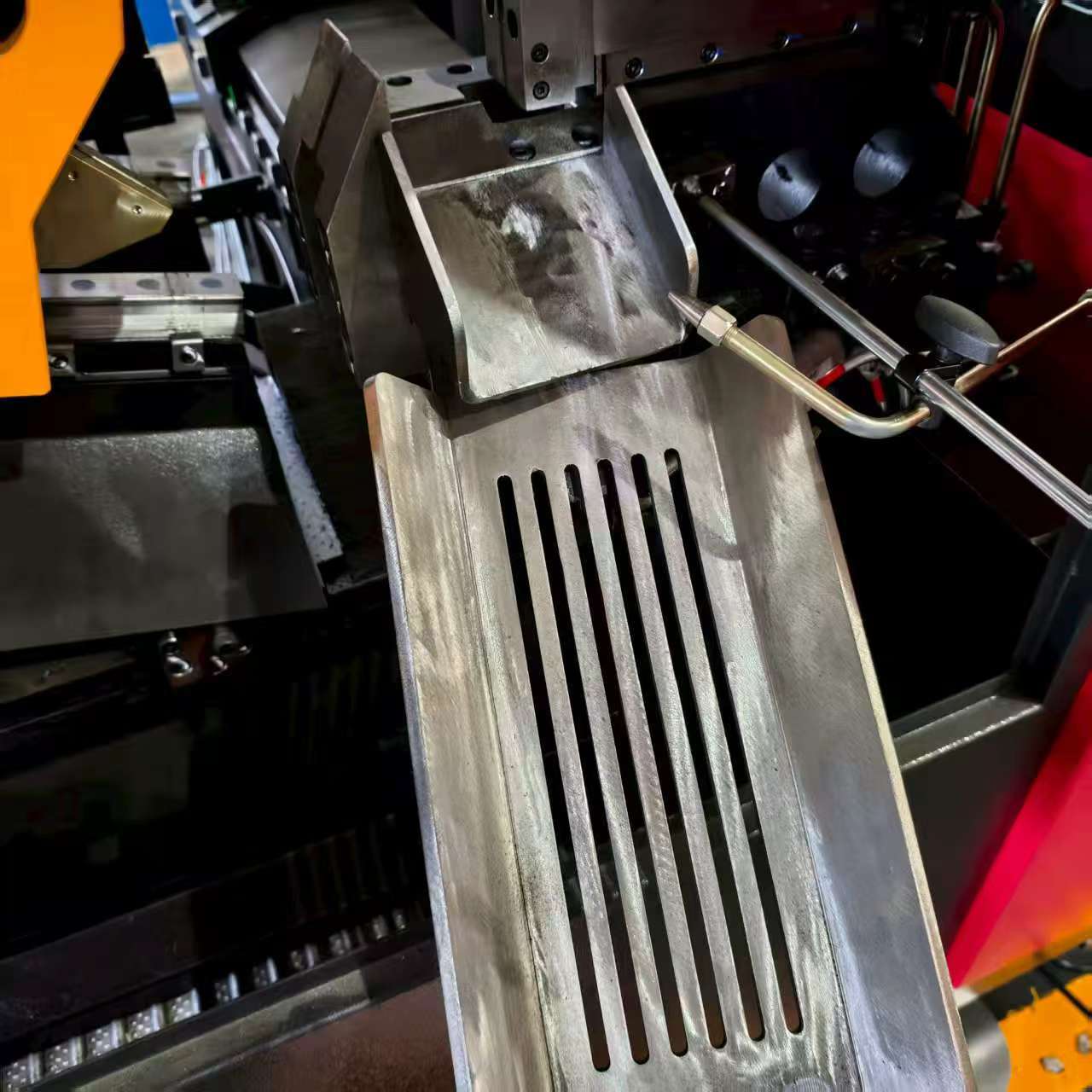

Horizontal Vertical Circular Saw Machine 400MM Circular Cold Saw 2KW Horizontal Vertical Circular Saw Machine 400MM Circular Cold Saw 2KW Horizontal Vertical Circular Saw Machine 400MM Circular Cold Saw 2KW Horizontal Vertical Circular Saw Machine 400MM Circular Cold Saw 2KW
Frequently Asked Questions
Q1: Are you a manufacturer or a trading company?
We are a professional manufacturer of saw blade grinders with a 30,000 square meter factory and dedicated technical team.
Q2: Where is your factory located?
Our factory is located in Nantong City, Jiangsu Province, China, approximately 1.5 hours from Shanghai Hongqiao station.
Q3: What is your factory acceptance test method?
You can send sample material for test cutting; we provide detailed cutting data and video documentation.
Q4: What is your method of transaction?
We typically use FOB (Free On Board) transactions.
Q5: How about your delivery time?
Standard delivery is 7-60 work days after order confirmation, depending on product type and quantity.
Q6: What are your payment terms?
Standard terms: 30% deposit, 70% balance before shipment. Other methods available upon request.
Q7: Does the band saw blade have any international certifications?
Yes, we have obtained CE and ISO international certifications.
