Specifications
Payment Terms :
FOB
Name :
JSSCD-120NC/P CNC High Speed Circular Saw Machine(Horizontal-Push)
Color :
Red，Black
Condition :
New
Dimension :
2250x1800x1890
Use :
Material cutting
Cuttable material :
Carbon steel，Stainless steel，Alloy steel，Aluminum，Aluminum alloy，Copper，Copper alloy，Titanium alloy，PA
Application :
Automobile manufacturing，Aerospace，Rail transit，Mechanical equipment，Hardware tools，Ship building，Building material，Pipeline engineering，Mold manufacturing，Electronics manufacturing
Mechanical control :
Intelligent control，Automation
Saw type :
Straight cut
Cutting precision :
±0.05mm
Feeding precision :
±0.1mm
FAT :
Sample trial cutting verification
Safety protection devices :
Emergency braking，Anti-splash shield
Hydraulic oil :
Reusable
Cutting debris removal device :
Chain plate chip conveyer
Place of Origin :
China
Brand Name :
JSSCD
Model Number :
JSSCD-120NC/P
MOQ :
1
Packaging Details :
depending on the machine model
Delivery Time :
7-60 work days
Certification :
HB24Q00435R0S HB24E0025 HB24S00242R0S8R0S
Supply Ability :
500 Sets Per Year
Description

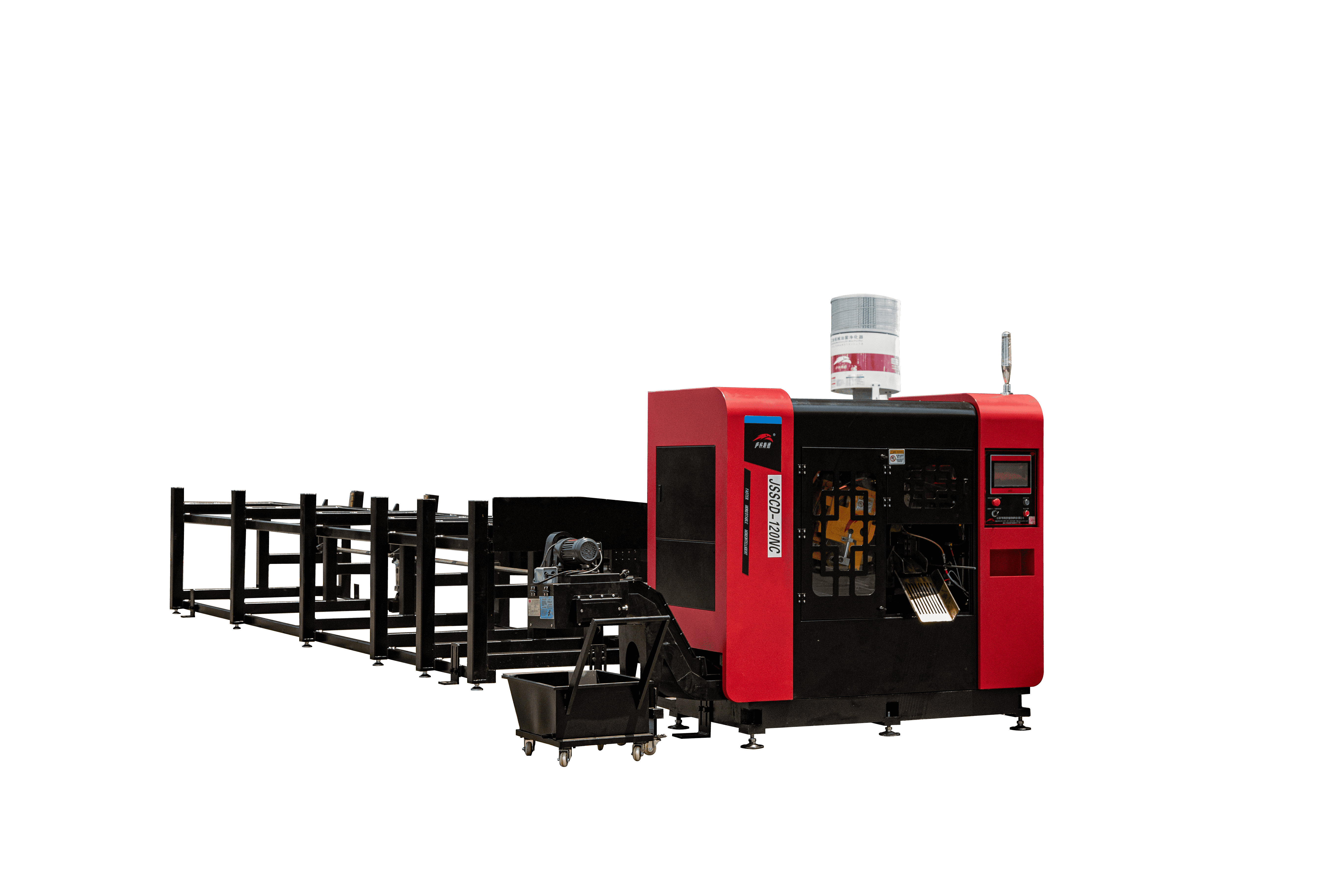

JSSCD-120NC/P CNC High Speed Circular Saw Machine (Horizontal-Push)
For demanding horizontal metal profile cutting operations, this CNC high-speed circular saw machine delivers superior performance with rapid cutting capability, sophisticated control, exceptional accuracy, and sustainable operation. Its robust construction makes it essential for modern metal fabrication workflows.
Enduring Accuracy and Robust Operation
The machine maintains sustained precision through innovative horizontal push cutting methodology, powered by an AC servo motor and ball screw assembly. Key features include:
  • High-performance workholding system with hydraulic horizontal/vertical clamping
  • Precision sustainment features including gear backlash mitigation and coordinated lubrication systems
  • Integrated saw blade chip extraction device for enhanced safety and maintenance
  • Carbide-tipped workpiece separator for clean, orderly piece exit
Streamlined Control and Effortless Operation
The sophisticated CNC control system governs essential parameters like cutting velocity and angular positioning, paired with an intuitive operator interface (HMI) for straightforward control and production automation.
Technical Specifications
Model Unit JSSCD-120NC/P
Mainframe dimensions mm 2250*1800*1890
Bar & round pipe mm 20-120
Angle bar & square bar mm 20-95
Saw blade size mm φ380*2.6*φ40
Spindle motor power KW 11(4P)
Spindle speed rpm 20-140
Feed servo motor power KW 2
Hydraulic drive motor power KW 2.25(4p)
Rated pressure of the hydraulic system mpa 5.5
Boosting Throughput with Automation
Optional high-capacity automatic material handling system facilitates uninterrupted, automated feeding, perfectly synchronizing with the machine's horizontal cutting action for extended batch runs.
Product Images
0.05mm Precision Large Diameter Circular Saw Automation Hydraulic Circular Saw Reusable
0.05mm Precision Large Diameter Circular Saw Automation Hydraulic Circular Saw Reusable
0.05mm Precision Large Diameter Circular Saw Automation Hydraulic Circular Saw Reusable
0.05mm Precision Large Diameter Circular Saw Automation Hydraulic Circular Saw Reusable
Frequently Asked Questions
Q1: Are you a manufacturer or a trading company?
We are a professional manufacturer of saw blade grinders with a 30,000 square meter factory and dedicated technical team.
Q2: Where is your factory located?
Our factory is located in Nantong City, Jiangsu Province, China, approximately 1.5 hours from Shanghai Hongqiao station.
Q3: What is your factory acceptance test method?
You can send sample material for test cutting. We'll provide detailed cutting data and a video of the operation.
Q4: What is your method of transaction?
We use FOB (Free On Board) transaction terms.
Q5: How about your delivery time?
Typically 7-60 work days after order confirmation, depending on items and quantity.
Q6: How about the payment term?
T/T 30% deposit, 70% balance before shipment. Other methods available upon request.
Q7: Does the band saw blade have any international certifications?
Yes, we have obtained CE and ISO international certifications.
