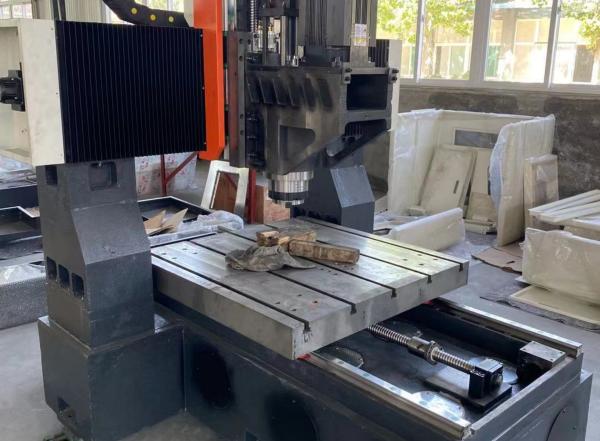

Small Size 1000x1000mm Workpiece Size Cnc Flange Drilling Machine 24 Tool Positions

Product Introduction:

This machine is suitable for drilling plate & pipe,baffle and flange in the petrochemical, boiler, refrigeration, wind power flange and other industries. It can also be used in the drilling of connecting plate in the steel structure such as building, bridge, tower and so on.

Product parameters:

Product Feature:

1. The machine is primarily composed of a robust machine bed and longitudinal sliding table, a gantry framework with a transverse sliding table, a vertical ram-type drilling power head, a precision worktable, an electrical control system, a hydraulic station, a cooling unit, a chip removal system, a centralized lubrication system, and other auxiliary components.

2. The equipment adopts a moving gantry configuration combined with a fixed worktable design, maximizing workspace utilization while optimizing production line layout and improving overall operational efficiency.

3. The machine bed and worktable are designed as separate structural units, significantly enhancing machine rigidity and operational stability. This design effectively minimizes vibration during high-speed drilling and milling operations, ensuring superior machining accuracy.

4. Both the longitudinal and transverse motion axes are equipped with high-precision roller-type linear guideways, offering excellent load-carrying capacity, positioning precision, and long-term stability throughout demanding machining applications.

5. The drilling spindle is driven by a dedicated servo motor through a synchronous belt transmission system, providing stepless speed control and outstanding low-speed torque characteristics. This advanced drive configuration enables heavy-duty cutting performance and is particularly suitable for high-efficiency machining using carbide cutting tools.

6. The spindle assembly incorporates a high-precision Taiwan-manufactured spindle with an internal coolant supply system. Featuring a BT40 taper interface and an automatic tool clamping mechanism based on butterfly spring technology, the spindle accommodates both drilling and milling tools through a drawbar retention system. Hydraulic tool release technology ensures fast, reliable, and efficient tool changes, reducing downtime and maximizing productivity.

The CNC Gantry Plate Drilling Machine is a highly efficient and versatile machining solution specifically engineered for the precision processing of plate-type components and structural steel elements. The machine is capable of machining flanges, circular plates, ring components, flat plates, and similar workpieces, provided that the material thickness falls within the specified processing capacity of the equipment.

Within steel structure fabrication plants, the machine performs high-precision drilling and milling operations on connection plates, base plates, and structural components, providing reliable support for the assembly and installation of steel frameworks. In the wind power industry, the equipment is widely used for machining tower flange sections and other critical wind turbine components, ensuring excellent dimensional accuracy and structural reliability under challenging operating conditions. For bridge construction projects, the machine is utilized to process bridge girders, connection plates, bearing components, and other structural elements. Its high machining accuracy contributes to secure assembly quality and long-term structural integrity, enabling bridge systems to withstand dynamic loads and demanding service environments throughout their operational lifespan.
