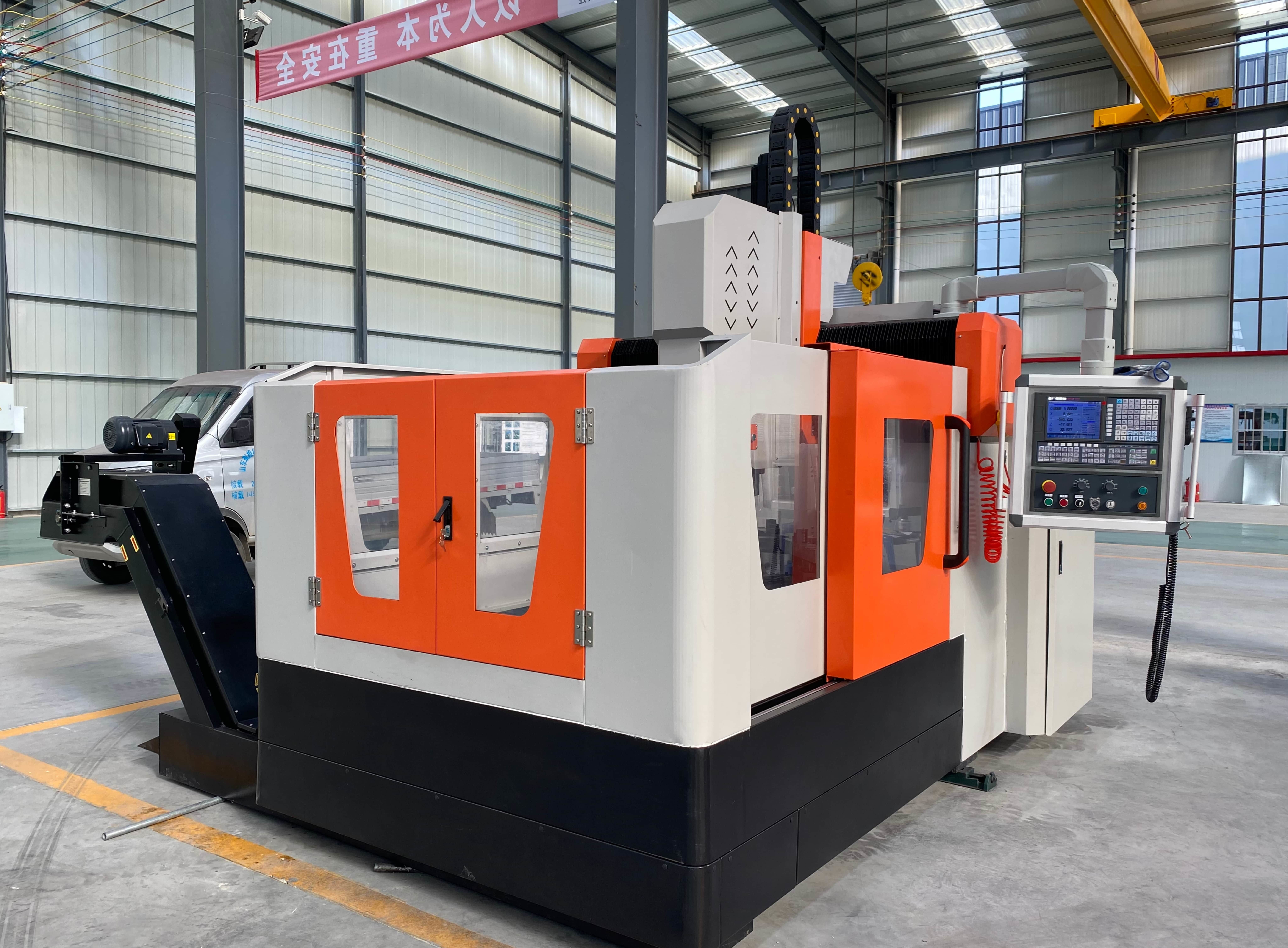

Model PHD1010 Cnc Gnatry Flange Plate Milling Drilling Machine Used In Plate Baffle Flange

Product Introduction:

This machine is suitable for drilling plate & pipe,baffle and flange in the petrochemical, boiler, refrigeration, wind power flange and other industries. It can also be used in the drilling of connecting plate in the steel structure such as building, bridge, tower and so on.

Product parameters:

Product Feature:

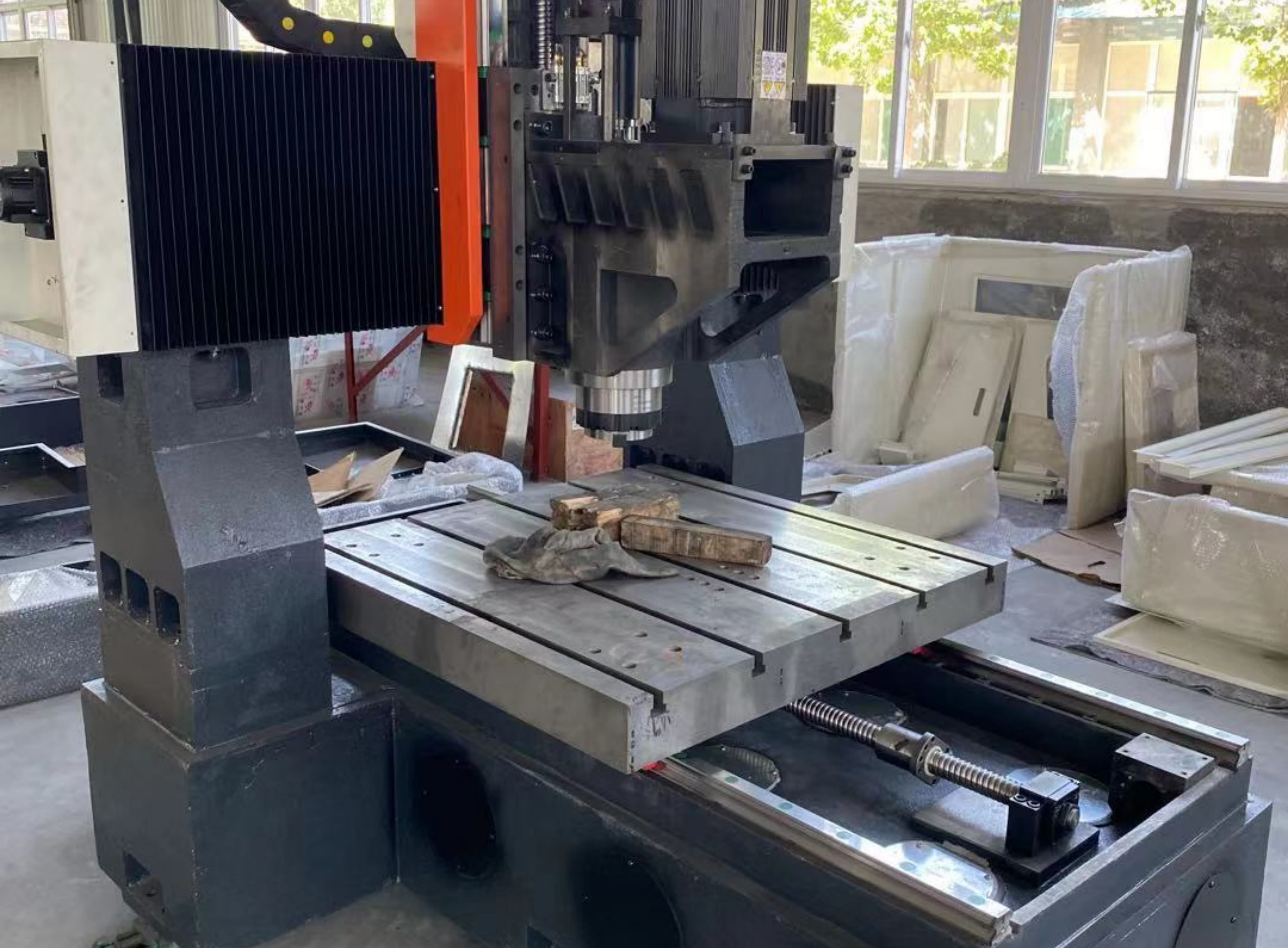

1. The machine mainly consists of the machine base and longitudinal slide table, gantry structure and transverse slide table, vertical ram-type drilling power head, worktable, electrical control system, hydraulic unit, cooling system, chip evacuation system, centralized lubrication system, and other supporting assemblies.

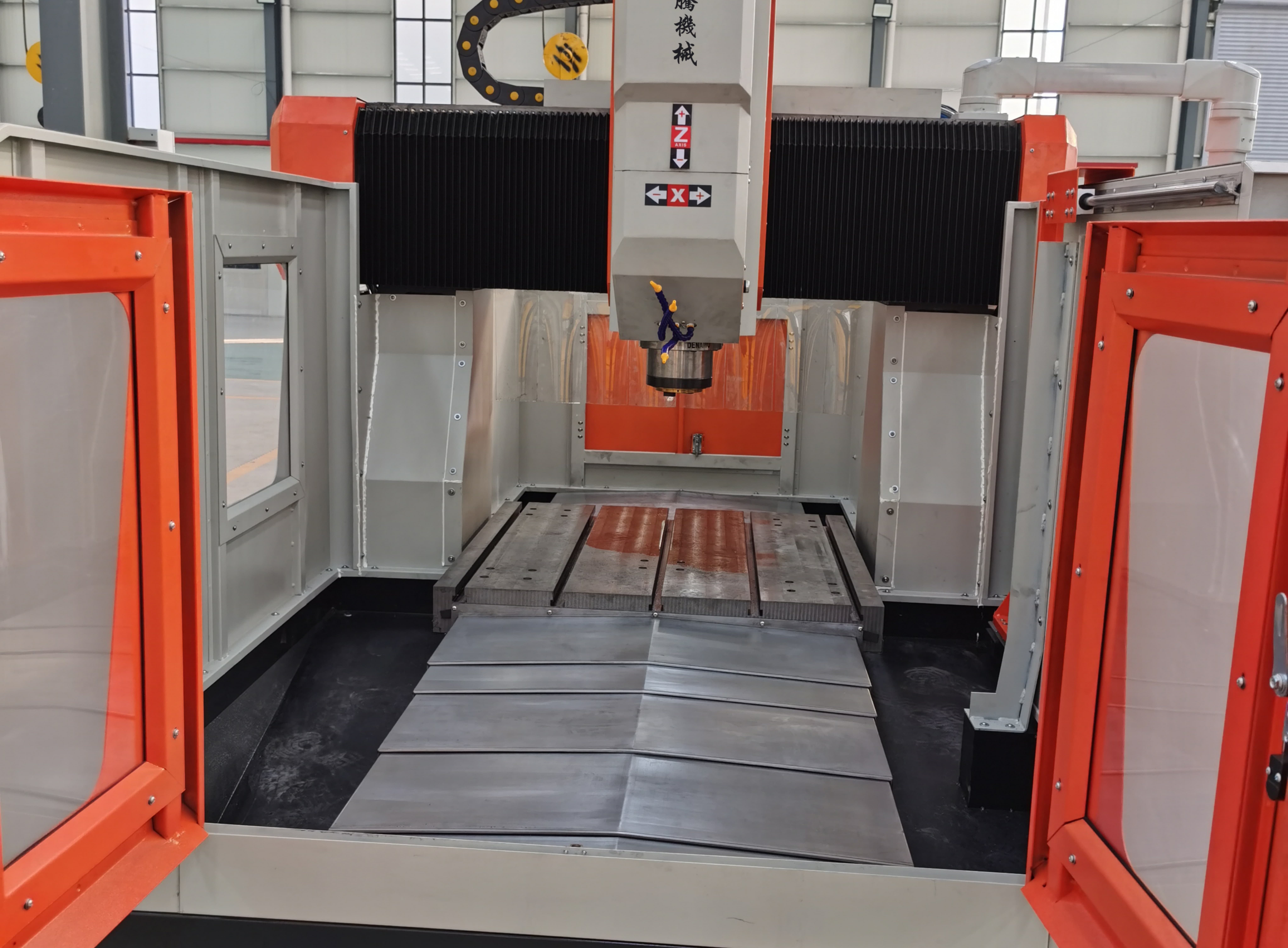

2. The equipment adopts a moving gantry design combined with a fixed worktable configuration, effectively optimizing floor space utilization and improving workshop layout efficiency.

3. The machine base and worktable are engineered as independent structures, enhancing the overall rigidity and operational stability of the equipment while significantly reducing vibration during high-speed drilling processes.

4. Both longitudinal and transverse axes are equipped with high-precision roller linear guideways, providing superior load-bearing capacity, positioning accuracy, and machine stability throughout machining operations.

5. The spindle is powered by a dedicated servo motor through a synchronous belt transmission mechanism, enabling stepless speed regulation and delivering excellent torque performance at low rotational speeds. This configuration supports heavy-duty cutting operations and is particularly suitable for high-speed machining with carbide tooling.

6. The drilling spindle incorporates a high-precision spindle manufactured in Taiwan and features an internal coolant delivery system. Equipped with a BT40 taper interface and an automatic tool-clamping mechanism utilizing butterfly spring technology, the spindle allows drills and milling cutters to be mounted through a drawbar system. Hydraulic tool release ensures quick, reliable, and efficient tool changes, minimizing machine downtime.

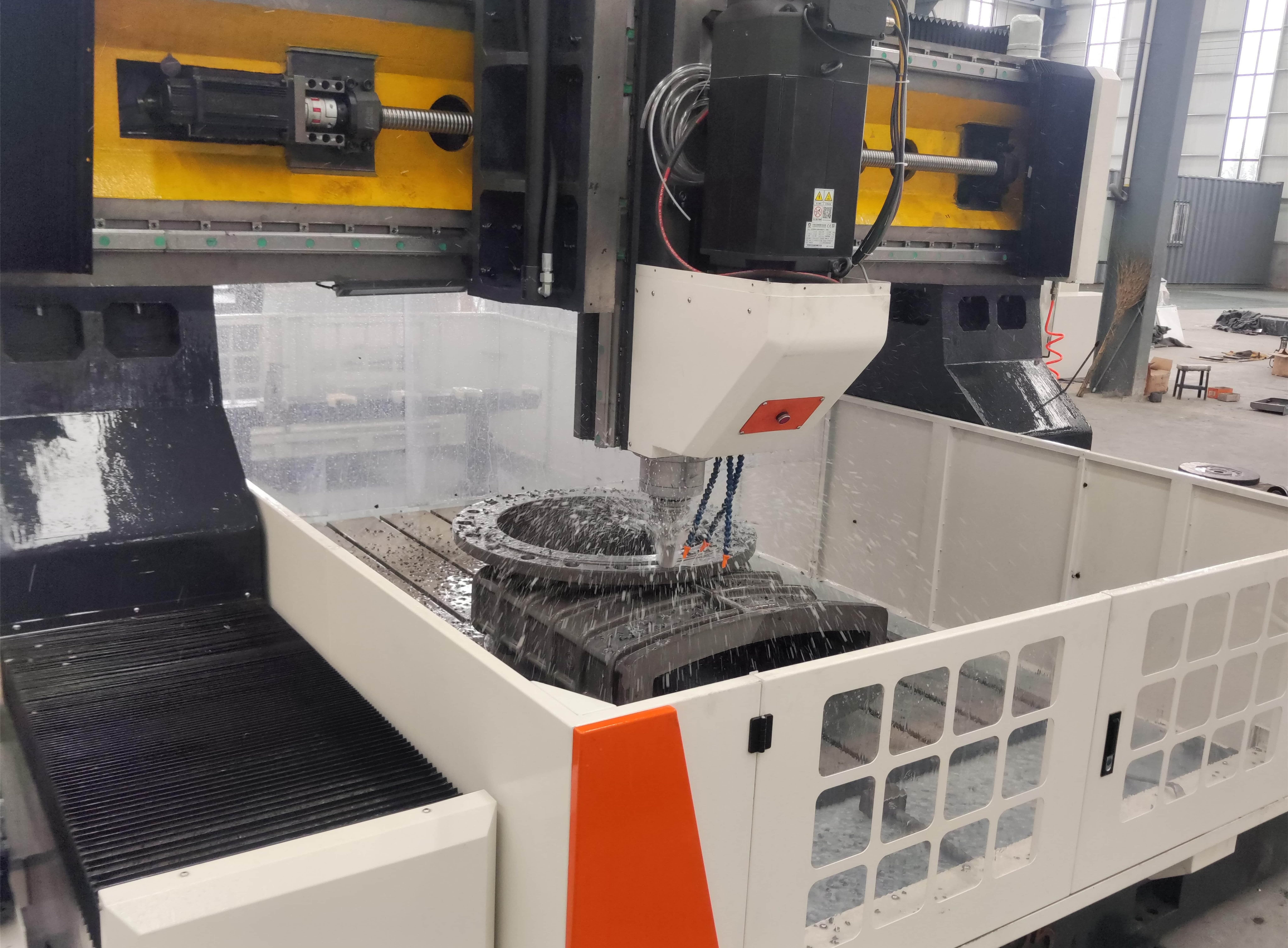

The CNC Gantry Plate Drilling Machine is a high-performance industrial solution specifically developed for the precision machining of plate-type workpieces and structural components. It is designed to process flanges, circular plates, rings, flat plates, and similar parts, provided that the material thickness falls within the machine’s designated machining capacity.

Within steel structure manufacturing facilities, this plate drilling machine delivers accurate drilling and milling operations on structural plates and connection elements, providing a dependable foundation for the assembly and installation of steel frameworks. In the wind energy sector, the equipment performs high-precision machining of wind turbine tower sections and flange components, ensuring their ability to withstand demanding environmental conditions, including strong winds and temperature variations. In bridge engineering applications, the machine is utilized for processing bridge girders, connection plates, and support structures, enabling secure and durable assembly capable of withstanding dynamic loading conditions throughout the service life of the bridge.
