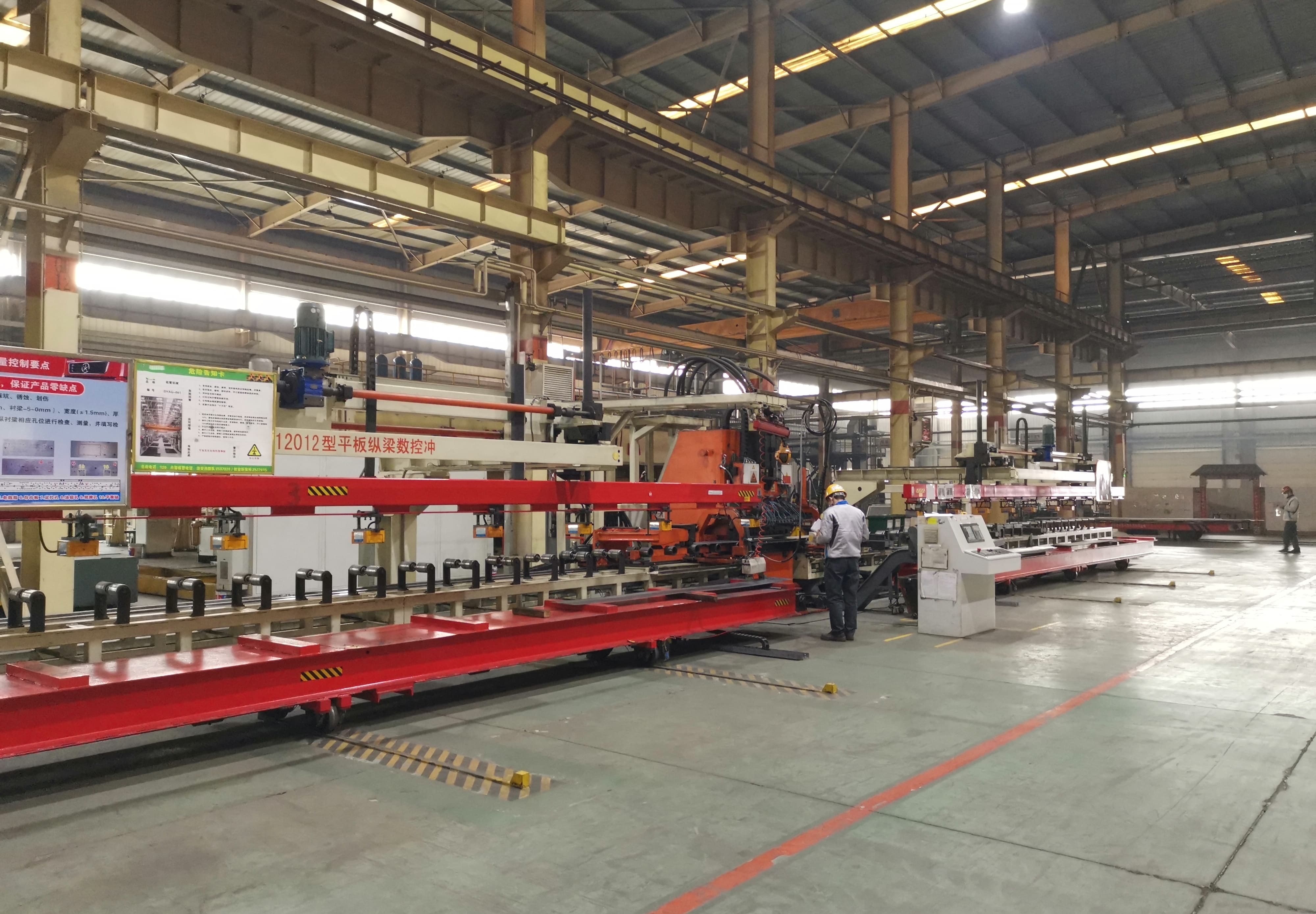

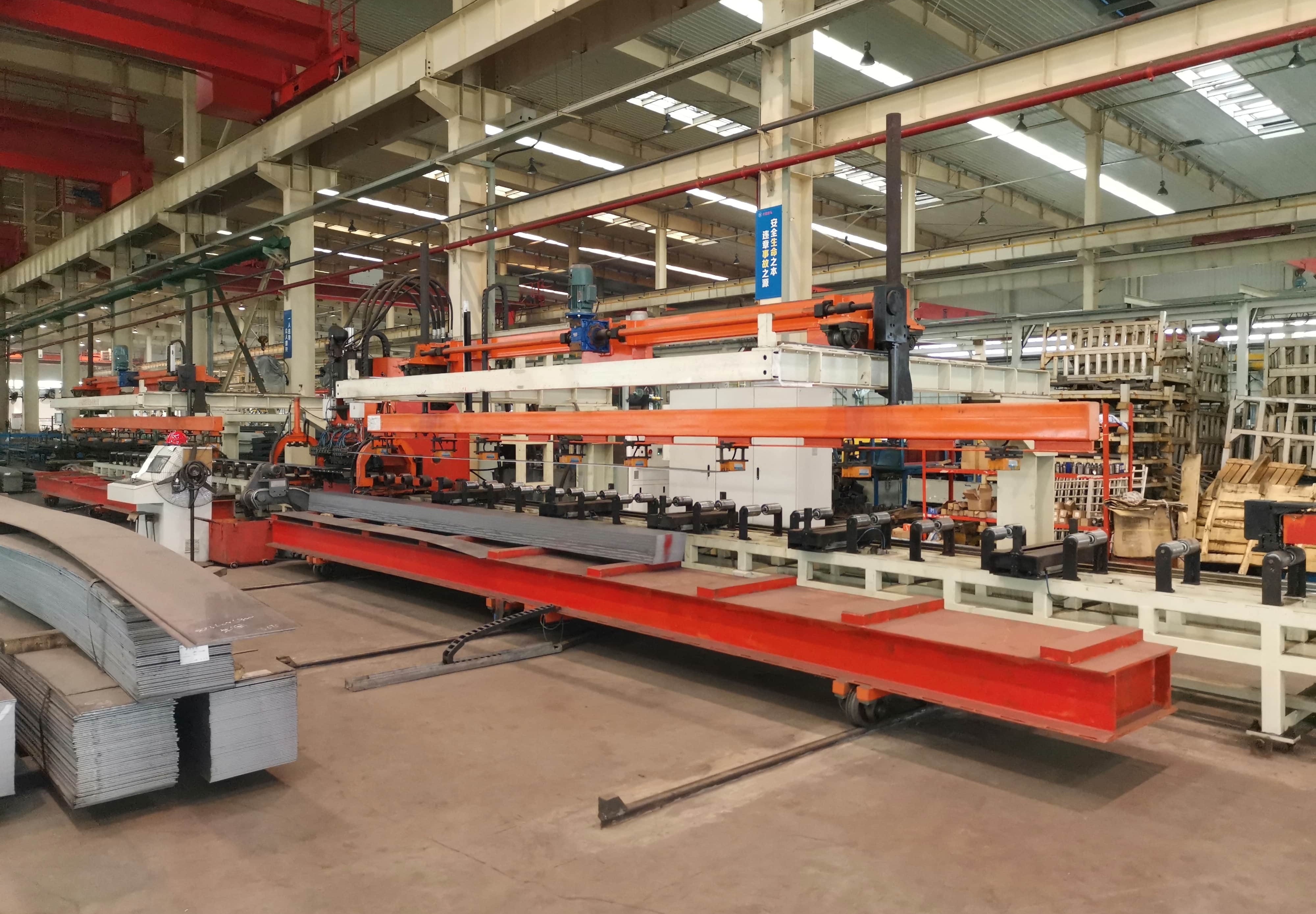

Heavy-Duty Automotive Frame Longitudinal Beam CNC Punching Production Line

Product Introduction:

The Automobile Longitudinal Beam Flat Plate CNC Punching Production Line is an advanced manufacturing solution specifically developed for punching flat longitudinal beams used in automotive chassis structures. Drawing upon both domestic and international technologies from comparable equipment, the system is engineered to satisfy the processing requirements of various vehicle frame designs worldwide. By integrating the advantages of multiple industry-proven technologies, this production line provides a highly adaptable solution for manufacturing different types of frame longitudinal beams while ensuring exceptional operational reliability, productivity, and processing efficiency.

Structural composition:

The equipment primarily consists of an automatic loading and unloading system, a servo-controlled centering device for variable-section plate compensation, a feeding mechanism, a punching unit, an automatic scrap discharge system, as well as hydraulic, electrical, and pneumatic subsystems.

Main technical parameters:

Product features:

1. The equipment combines the advanced 828D CNC control system with a high-performance servo-driven feeding mechanism, providing rapid processing capability while maintaining superior machining accuracy, repeatability, dimensional consistency, and stable performance throughout continuous production.

2. A servo-controlled automatic centering mechanism is integrated into the material support roller assembly, enabling efficient processing of longitudinal beams with different cross-sectional configurations. The system automatically compensates for height variations between 0 and 200 mm, ensuring precise workpiece alignment, secure positioning, and smooth, reliable material feeding.

3. The punching system supports the installation of up to 25 punching dies in different diameters, providing flexible tooling arrangements, efficient die replacement, and broad processing versatility to accommodate diverse product specifications and production requirements.

4. The entire manufacturing sequence, including material loading, punching, and finished-component unloading, is performed automatically. This highly integrated configuration minimizes operator intervention, reduces labor requirements, and enhances production efficiency, process consistency, and overall equipment reliability.

5. Punching scrap is automatically transported and collected through an integrated waste discharge system, helping maintain a clean working environment, preventing material accumulation, and ensuring stable, continuous, and uninterrupted production operations.

6. The intelligent programming system supports direct import of AutoCAD drawings and DXF files generated by widely used CAD platforms. Together with an intuitive Human–Machine Interface (HMI), the system automatically interprets design information and generates machining programs, simplifying programming operations, shortening preparation time, and reducing potential programming errors.

The product showcase presents a representative range of finished longitudinal beam components processed by this automated production system, covering various specifications widely utilized in mining vehicles, heavy-duty trucks, commercial transportation equipment, and specialized industrial vehicles. These demonstration workpieces clearly demonstrate excellent hole positioning accuracy, high-quality punching results, and consistent dimensional performance, providing customers, engineers, and quality control personnel with a direct reference for evaluating the machine’s machining capability, processing stability, and overall manufacturing quality.

This specialized CNC punching production system is specifically developed for high-precision processing of flat longitudinal beam components used in automotive manufacturing applications. It is extensively utilized for producing chassis longitudinal beams for heavy trucks, commercial vehicles, mining machinery, construction equipment, and other special-purpose transportation vehicles. By delivering accurate hole patterns, superior dimensional consistency, and reliable processing performance, the machine effectively meets the strict structural and assembly requirements of critical vehicle frame components, providing manufacturers with an efficient, dependable, and high-precision manufacturing solution.
