Precision CNC Plate Punching Marking And Drilling Machine For Steel Tower Components

Product Introduction:

Plate punching machine Used for punching, marking and drilling of steel plates in the field of steel tower. It is also used to punch, drill and mark of metal plates of other industries.

Product specification:

Product Features:

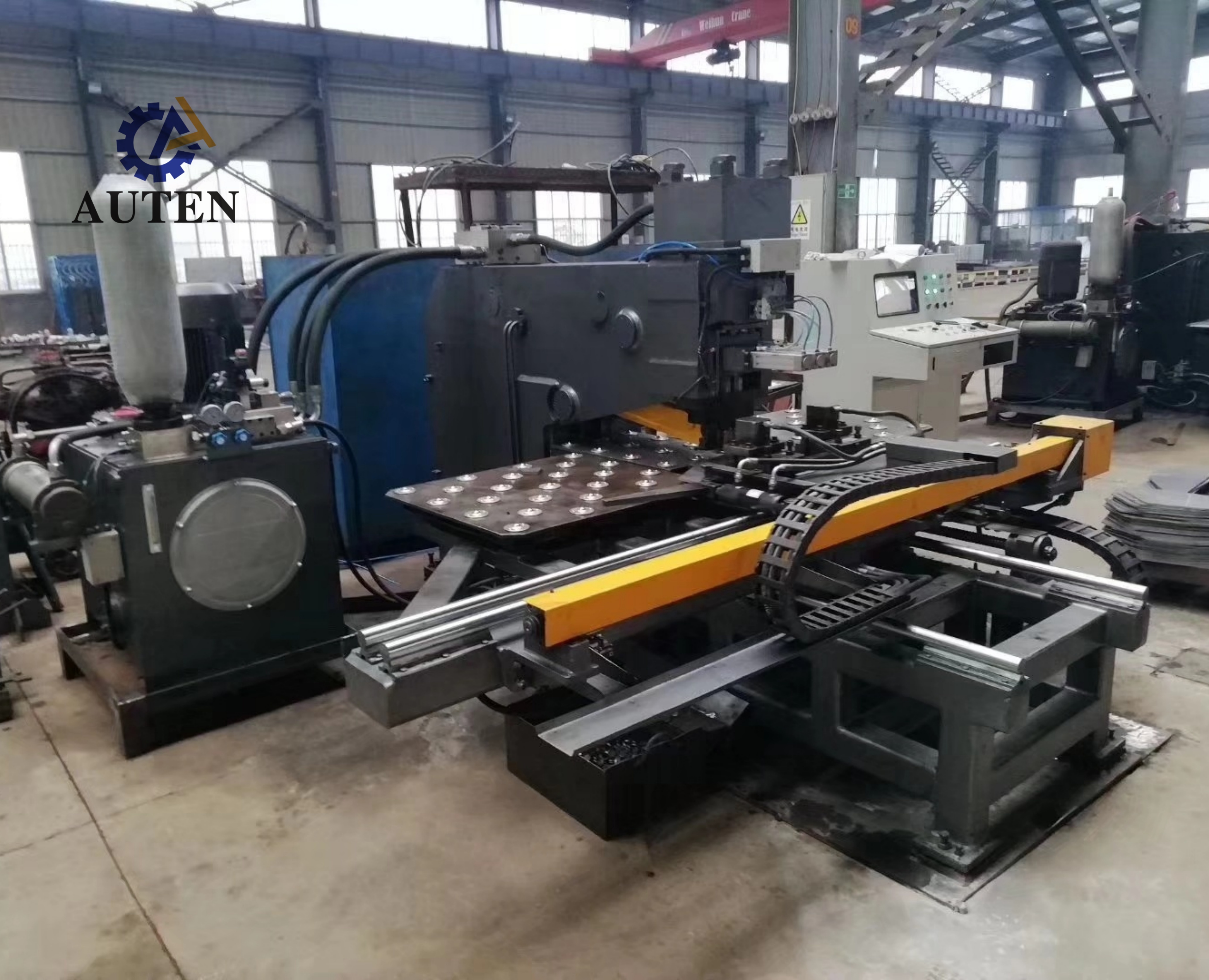

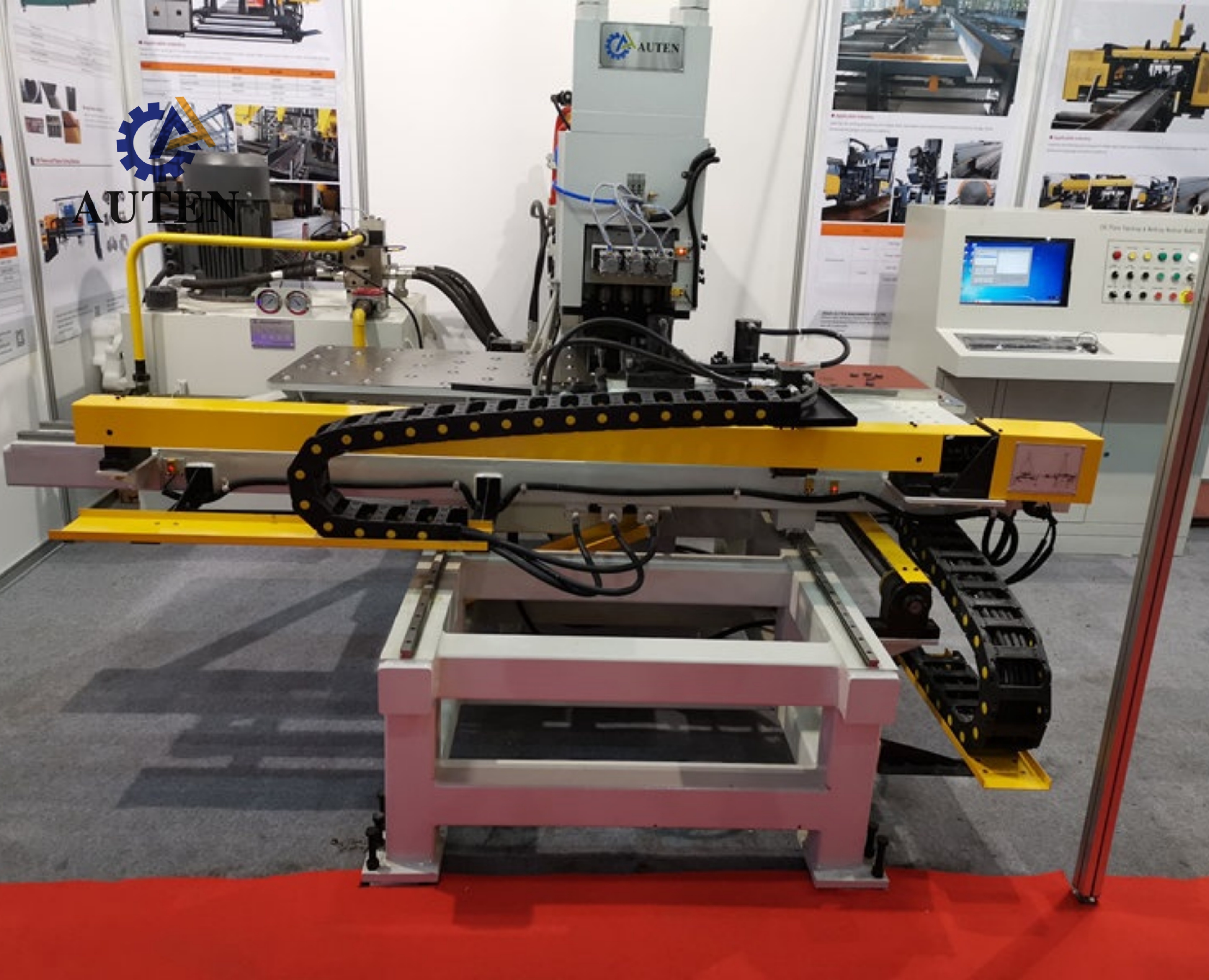

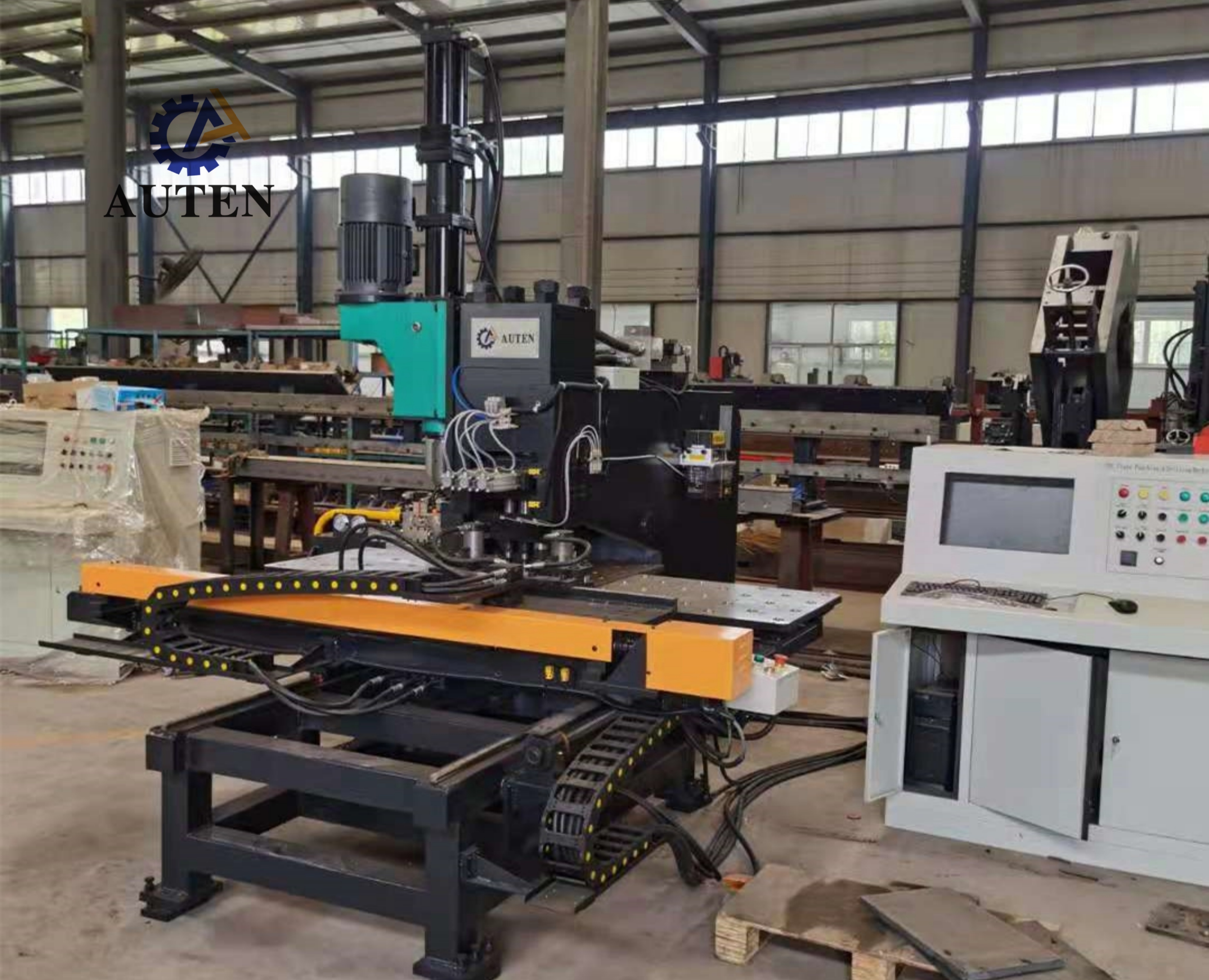

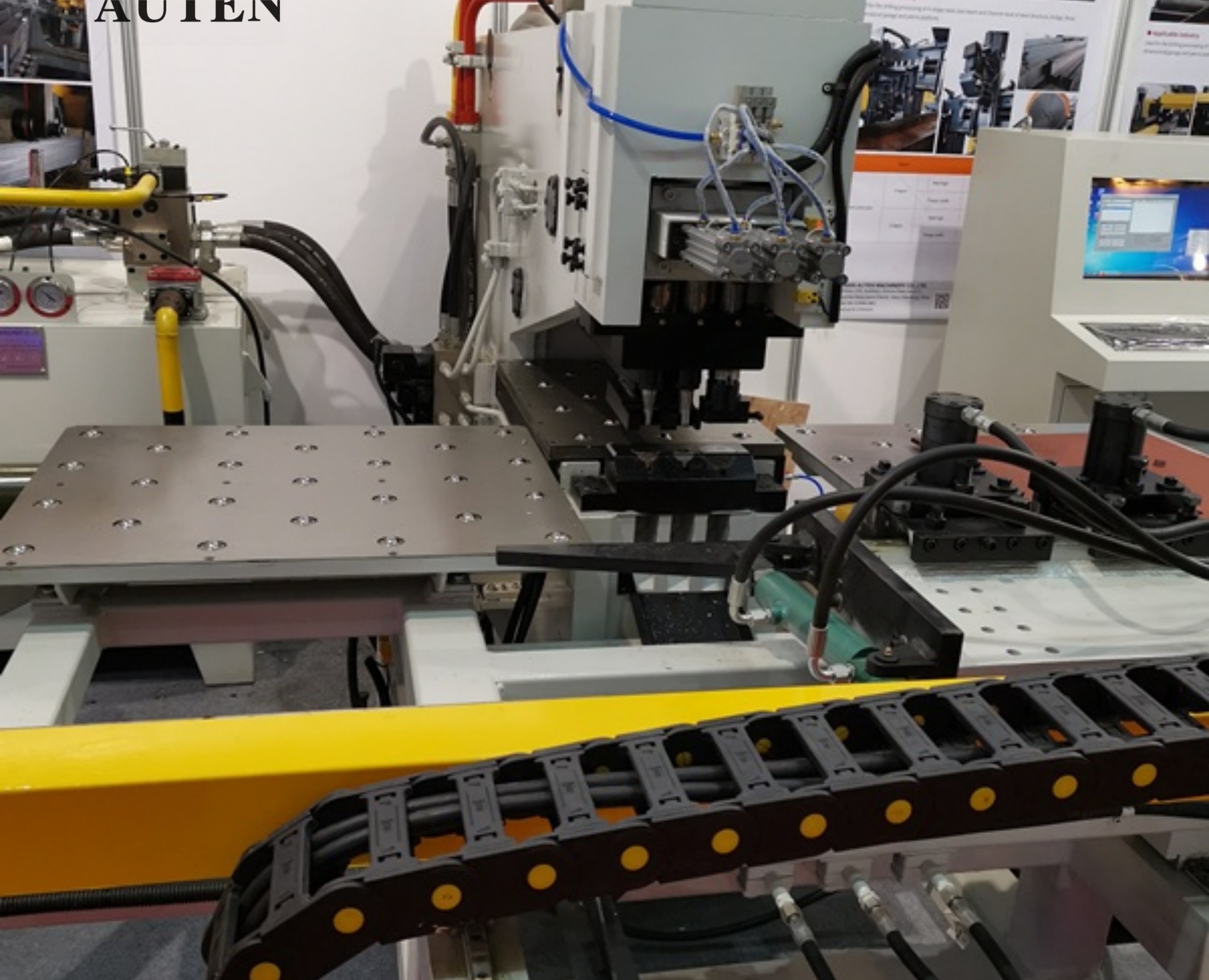

1. The machine frame adopts a C-type welded steel plate structure, providing excellent rigidity, high structural stability, and a spacious working area for convenient material handling. The equipment is configured with three automatic tool stations, including one dedicated marking station, with automatic station indexing to improve processing efficiency. The clamping system is designed to accommodate workpieces of various sizes and specifications, utilizing a zero-reference positioning block as the datum point, while a ball-transfer worktable ensures smooth and flexible material movement. The X and Y axes are driven by servo motors and precision ball screw mechanisms, with PLC-based CNC control accurately managing punching positions to achieve fully automated machining operations. Operators only need to input the workpiece program, which can be stored, recalled, and reused for repeated production.

2. The steel plate punching machine integrates advanced CNC technology with a servo-driven feeding system, delivering high processing efficiency, reliable operation, and consistent workpiece accuracy throughout continuous production.

3. Key functional modules adopt a modular structural design, simplifying maintenance procedures, facilitating component replacement, and reducing equipment downtime.

4. The machine is capable of completing punching, marking, and drilling operations on a single steel plate within one integrated machining process, significantly improving production efficiency and reducing material handling requirements.

5. The drilling unit features rapid approach, controlled low-speed cutting feed, and fast return functions, effectively reducing machining cycle time and enhancing overall working efficiency.

6. The programming system is designed for simple and convenient operation. Operators can directly input hole diameters, hole positions, and production quantities into the CNC system. The machine also supports machining programs generated by lofting software and enables direct CAD/CAM data conversion, greatly improving programming efficiency and production flexibility.

7. The equipment is equipped with an intelligent fault self-diagnosis system, which can automatically detect operating abnormalities, provide fault information, and assist in efficient troubleshooting and maintenance.

This cnc plate punching machine specialized metalworking system is specifically engineered to perform punching, marking, and drilling operations on steel plates within the steel tower manufacturing sector. It guarantees exceptional machining precision, adhering to rigorous tolerance standards and surface finish specifications. Beyond its primary use in the steel tower industry, this highly versatile equipment offers reliable punching, drilling, and marking capabilities for metal plates across a wide range of industrial sectors. It consistently ensures operational efficiency and processing accuracy for all types of metal workpieces, thereby streamlining workflows and enhancing product quality across various industrial applications.
