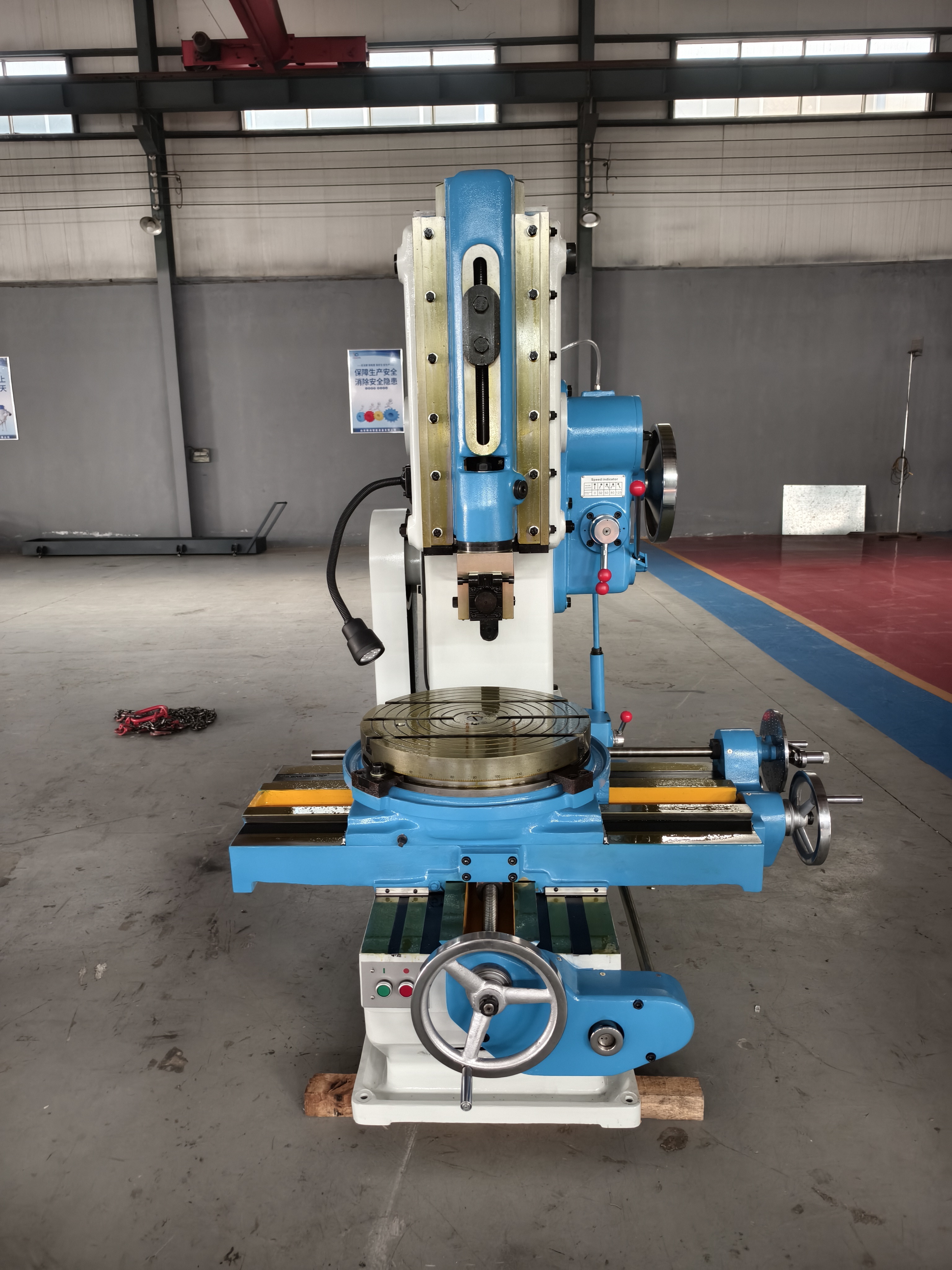

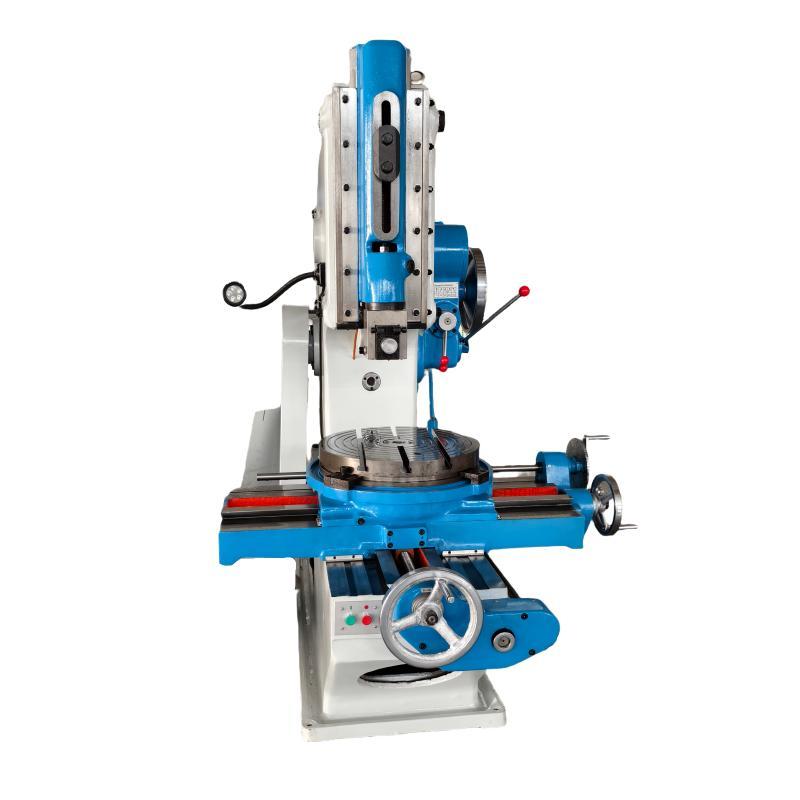

The B5020 vertical slotting machine is built for machining flat surfaces, forming surfaces, keyways and stamping dies on metal workpieces. It fits mass‑production factories, single‑piece & small‑batch workshops, repair shops and infrastructure construction‑site small‑part processing. The machine achieves grade‑3 machining accuracy. Main components include bed body, ram, rotary worktable, feed box, gearbox, electric system and lubrication unit. Its crank‑rocker mechanism converts gear rotary motion into reciprocating ram movement for slotting operations.

Technical Specifications

Why Choose Us?

• Proven Stable Mechanical Construction: The machine adopts mature split upper‑lower bed structure. The crank‑rocker mechanism reliably converts gear rotation into ram reciprocating slotting stroke, delivering steady cutting performance for long‑time shift‑work.

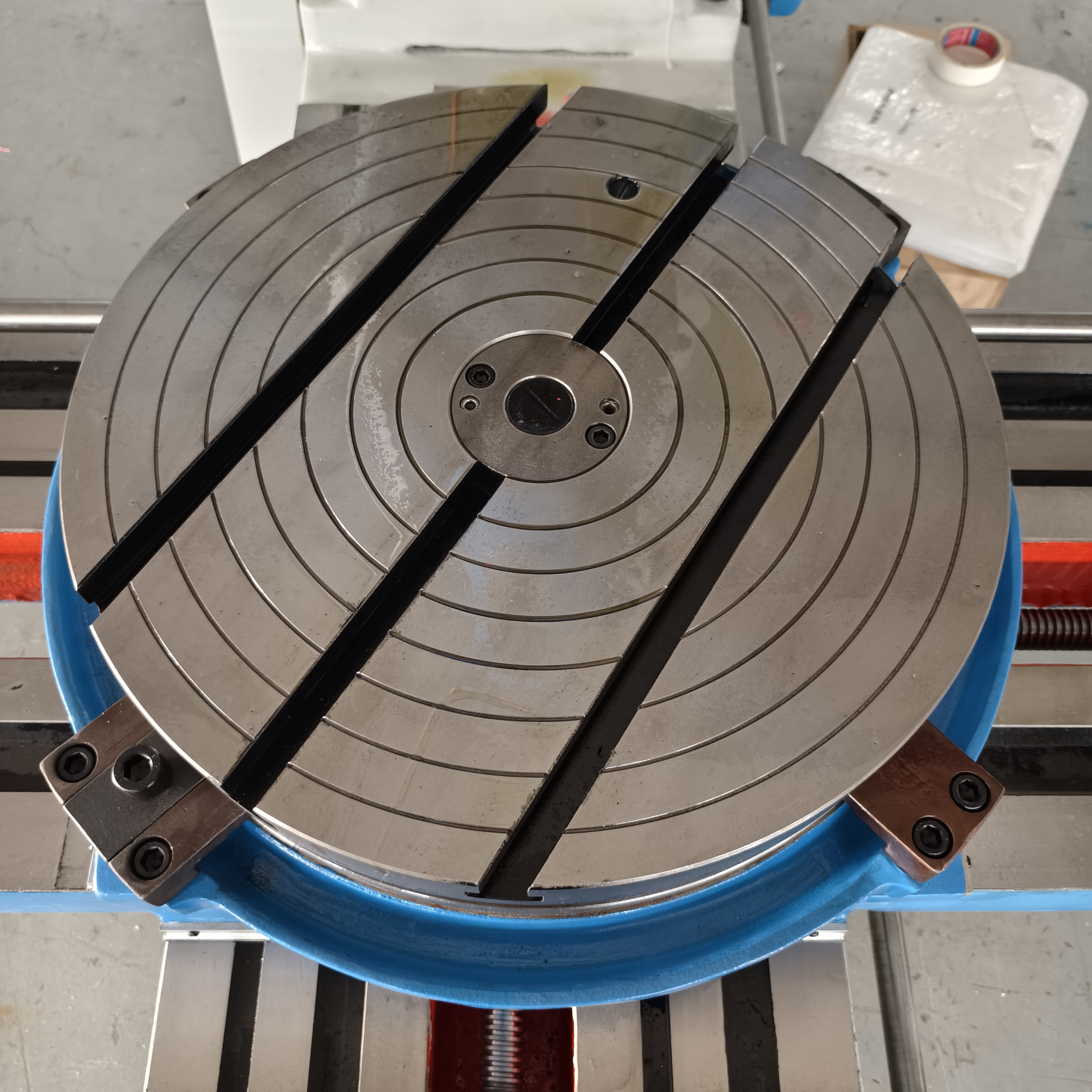

• Versatile Full‑Rotation Worktable: 500mm diameter rotary worktable supports ±360° full rotation. Both longitudinal and cross axes support motor‑power automatic feed as well as manual feed, flexible for multi‑angle positioning of complex workpieces.
• Solid Cutting Performance: Delivers 7500N maximum cutting force, supports workpiece load up to 500kg. Accepts 25*40mm standard tool shank, meets heavy‑duty metal slotting production requirements.
• Broad Production‑Scene Compatibility: Outputs grade‑3 standard machining accuracy. Suitable for mass‑production lines, small‑batch job shops, equipment repair workshops and on‑site component processing for construction projects.

Primary Applications

1. Mold Processing: Stamping die inner cavity and forming‑surface slotting operations.
2. Keyway Machining: Internal and external keyway slotting for various metal workpieces.
3. Mechanical Repair: Re‑processing of flat and forming surfaces for spare mechanical components.
4. Job‑Shop Manufacturing: Single‑piece and small‑batch production of special‑shaped metal parts.
