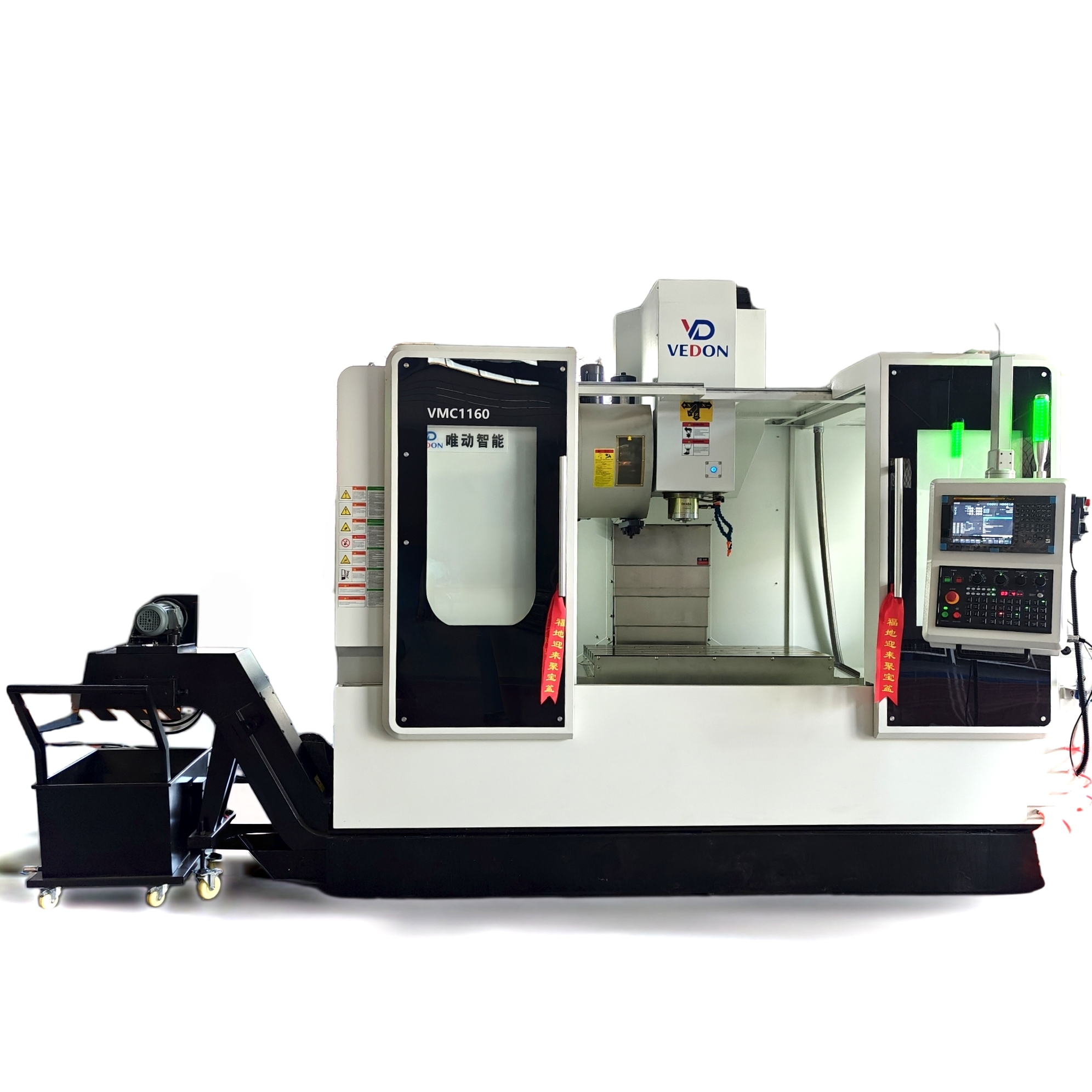

VMC1160 Heavy Duty Mold Machining Center
VMC1160 Heavy Duty Mold Machining Center
Specifications
Certification :
CE
X Axis Travel :
1100mm
Model Number :
VMC1160
Max Worktable Load :
800kg
MOQ :
1
Delivery Time :
30 days
Z Axis Travel :
600mm
Payment Terms :
T/T
Price :
USD 35,000.00 / set FOB
Max Spindle Speed :
12000rpm
Supply Ability :
10 units/month
Brand Name :
VEDON
Worktable Dimension :
1200×600mm
Packaging Details :
Plywood
Place of Origin :
China
Y Axis Travel :
600mm
Description
High-Rigidity Vertical Machining Center Solutions

Global mold factories, new energy manufacturers and automotive processing plants demand high-rigidity CNC equipment for large-size workpiece batch machining. Our VMC1160 vertical machining center equipped with Syntec 22MA PLUS control system and 12000rpm BT40 direct spindle delivers integrated milling, drilling, boring and tapping solutions for heavy metal workpieces. The whole machine adopts thick HT300 cast iron frame with optimized rib layout and complete stress relief treatment, paired with 45mm roller linear guides to guarantee long-term stable precision. Standard 4th rotary table, 70bar spindle through coolant and 24-station automatic tool changer greatly improve continuous processing efficiency. All key components adopt well-known brand parts, full CE safety enclosure, and we support customized configurations & stable bulk delivery for global wholesale partners.

Technical Specifications
Parameter Item VMC1160 Standard Specification
Worktable Dimension 1200×600mm
Max Worktable Bearing Load 800kg
Worktable T-slot Spec 5 slots ×18mm ×100mm
X Axis Travel 1100mm
Y Axis Travel 600mm
Z Axis Travel 600mm
Spindle Distance to Worktable 120–720mm
Spindle Taper BT40
Max Spindle Speed 12000rpm
Spindle Motor Power 11/15kW
X/Y/Z Servo Torque 18/18/28Nm (with brake)
A Axis Servo Torque 8Nm
X/Y/Z Rapid Feed 13.8rpm
Linear Cutting Feed Range 1–10000 mm/min
Tool Magazine Type Disc ATC
Standard Tool Capacity 24 pcs
X/Y/Z Positioning Accuracy ±0.004mm /300mm
A Axis Positioning Accuracy 20 arc seconds
X/Y/Z Repeat Accuracy ±0.003mm /300mm
A Axis Repeat Accuracy 4 arc seconds
Approx Net Weight 6500kg
Why Choose Us?
  • Ultra-Rigid Cast Frame: All main structural castings are HT300 high-strength iron, optimized via finite element analysis and full stress relief annealing. Six-sliding-block Z-axis design enhances rigidity for heavy rough cutting without deformation.
  • High-Speed Direct-Drive Spindle: Taiwan BT40 spindle runs up to 12000rpm, fitted with P4 grade precision bearings and independent oil cooling unit. Matched 70bar central through coolant to rapidly remove heat and chips during deep cutting.
  • Efficient 24-Station Disc ATC: OKADA disc tool magazine with automatic spindle taper air blowing, keeps tool mounting surface clean to maintain consistent precision during unattended cyclic production.
  • Standard 4-Axis Rotary Table: Equipped HW-250N 4th rotary table as standard, supports multi-angle 4-sided machining, perfect for complex curved and angular parts.
Primary Applications
  • Mold & Die: Large injection molds, die-casting molds, heavy stamping mold cavity rough & finish machining.
  • Automotive Parts: Engine housings, new energy battery trays, large structural alloy components.
  • Aerospace Components: Medium-size aluminum alloy brackets, multi-angle precision structural parts.
Frequently Asked Questions (FAQ)

Q1: Does this machine come with a 4th axis rotary table as standard?

A: Yes, HW-250N 4-axis rotary table is included in standard configuration, together with tailstock and manual chuck.

Q2: What documents will be delivered with the machine?

A: Complete operation manual, system instruction, factory inspection report and product quality certificate are delivered together.

Q3: What post-purchase technical support is available for overseas clients?

A: We provide remote digital diagnostics, comprehensive operation video manuals, and optional on-site installation and operator training delivered by senior engineers.
