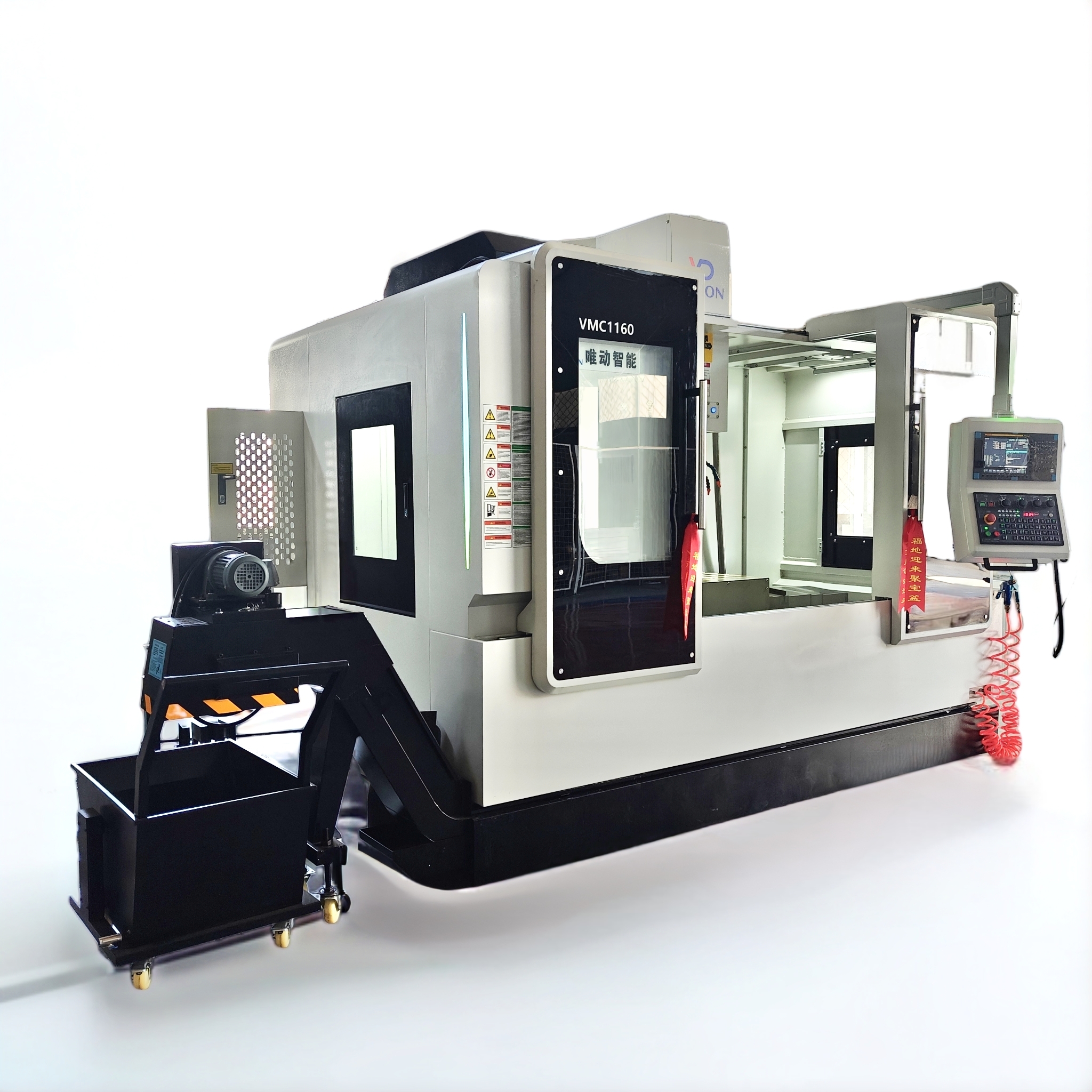

Serving mold factories and metal‑processing enterprises, the VMC1160 vertical machining center adopts finite‑element‑simulated heavy‑duty cast structure for balanced rigidity and weight. Equipped with FANUC 0i MF(3B) Plus CNC system and Taiwan Okada BT40 12000rpm belt‑drive spindle, this 3‑axis machine completes milling, boring, drilling, reaming and tapping in one‑time workpiece clamping. All main castings are HT300 cast iron with stress‑relief heat‑treatment. X/Y/Z axes adopt Taiwan HIWIN 45 mm roller linear guides with six‑slider Z‑axis support. It is equipped with 24‑station disc‑type tool magazine, spindle oil chiller, Renishaw tool setter and workpiece probe, automatic lubrication and cooling system, full‑closed safety guard. Suitable for plate, disc, shell‑shaped workpieces and mold production. We provide complete delivery documents and standard after‑sales support for bulk‑order customers.

• 3‑Axis Linear Guide Transmission: X/Y/Z axes adopt Taiwan HIWIN 45 mm roller linear guides; Z‑axis uses six‑load‑bearing slider structure. Servo motors directly couple with HIWIN precision ball screws. Z‑axis servo motor has power‑off brake for safety protection.
• FANUC CNC Control System: FANUC 0i MF(3B) Plus system with Chinese‑English bilingual interface and handheld MPG. Built‑in fault self‑diagnosis. Electric cabinet fitted with heat exchanger; main electric components are Schneider brand.
• Measuring & Auxiliary Devices: Standard Renishaw TS27R tool setter and OMP60 workpiece measuring probe. Timed quantitative centralized automatic lubrication with low‑oil‑level alarm. Circulating cooling system, oil mist collector, air‑gun and water‑gun are provided.

• Mold & Die: Injection molds, die‑casting molds, precision stamping mold cavity processing.
• Plate & Shell Parts: Plate‑shaped, disc‑shaped and shell‑shaped metal component multi‑process machining.
• Automotive Parts: Mechanical housings, brackets and medium‑size alloy components.
