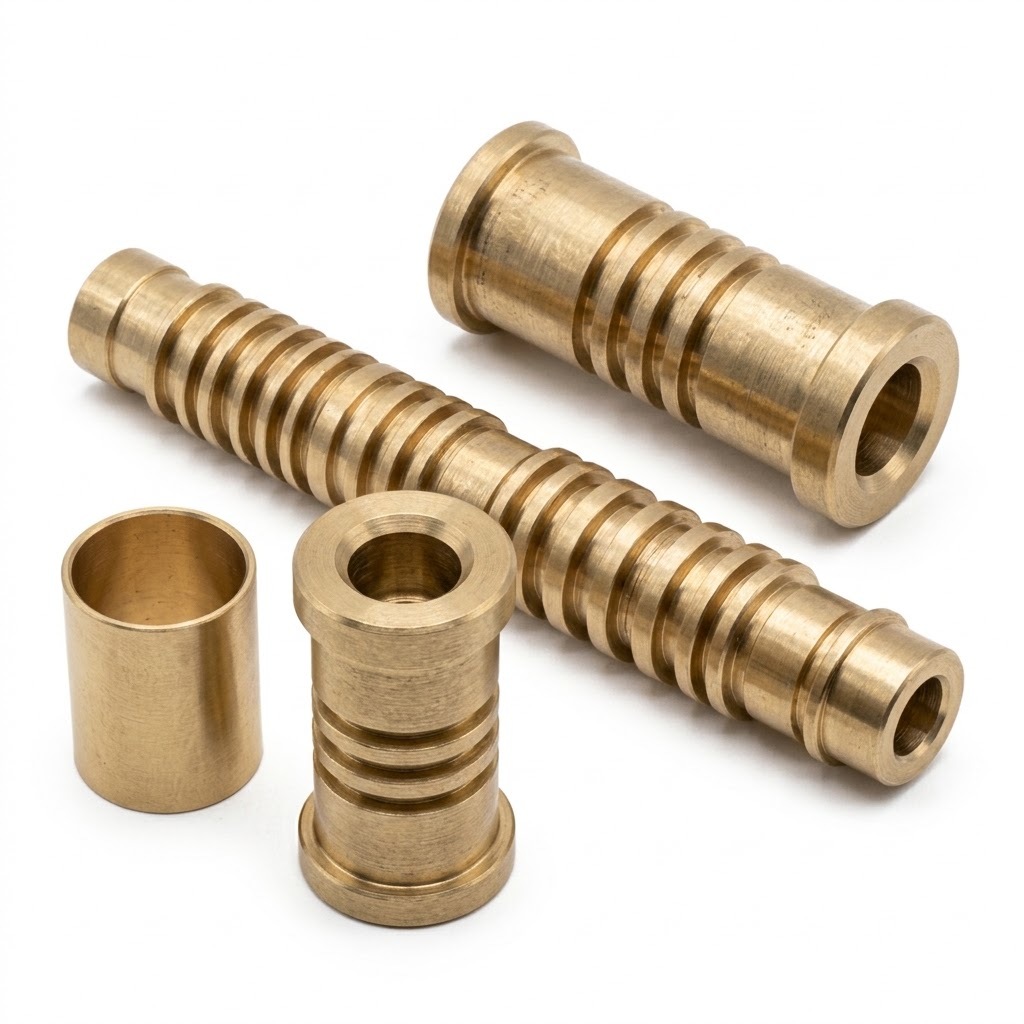

CNC Brass Pneumatic Valve Spool Precision Turned Flow-Control Part
CNC Brass Pneumatic Valve Spool Precision Turned Flow-Control Part
CNC Brass Pneumatic Valve Spool Precision Turned Flow-Control Part
CNC Brass Pneumatic Valve Spool Precision Turned Flow-Control Part
CNC Brass Pneumatic Valve Spool Precision Turned Flow-Control Part
CNC Brass Pneumatic Valve Spool Precision Turned Flow-Control Part
CNC Brass Pneumatic Valve Spool Precision Turned Flow-Control Part
CNC Brass Pneumatic Valve Spool Precision Turned Flow-Control Part
Specifications
Model Number :
Custom
Material :
Brass Alloy, Grade per Drawing
MOQ :
1
Delivery Time :
7-14 days
Surface Treatment :
Fine Turning, Polishing or Plating as specified
Certification :
ISO9001:2015
Tolerance :
±0.01mm
Packaging Details :
Accept buyer's request for customized packaging
Payment Terms :
L/C,D/A,D/P,T/T
Brand Name :
Shiye
Application :
Pneumatic Valves, Air-Flow Control
Place of Origin :
China
Processing :
CNC Turning, Groove Turning, Cross-Drilling as required
Price :
According to the drawings
Quality Control :
Micrometers, Diameter Gauges, Thread Gauges
Supply Ability :
10000Pcs/ Month
Description

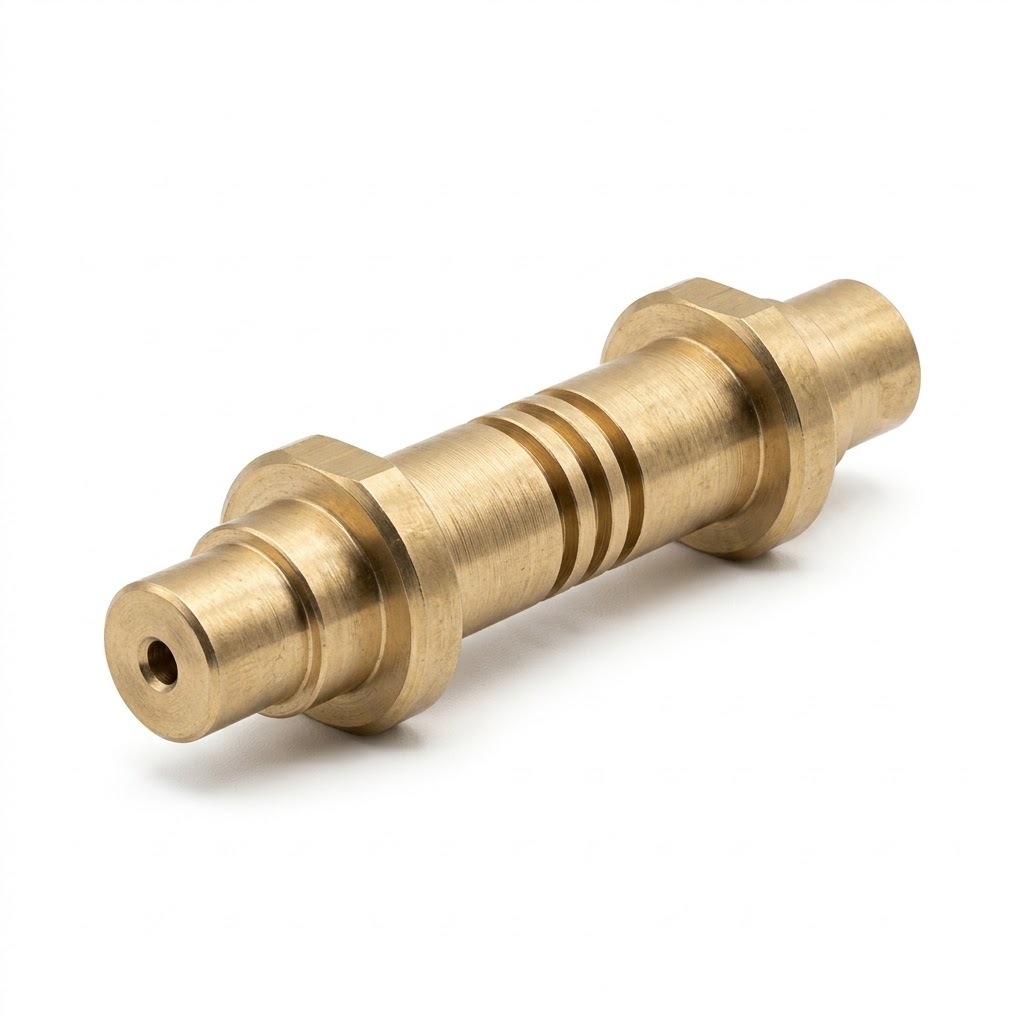

This custom CNC turned brass valve spool is intended for pneumatic directional valves used in automated assembly fixtures, where compressed air must be switched to extend or retract clamping cylinders during component positioning and fastening operations.
Its stepped lands and circumferential grooves define the spool geometry and the interfaces with the mating valve body. The critical checks are the land diameters, groove widths, concentricity, surface finish and clearance specified on the drawing.
Brass offers good machinability, but the alloy should be selected according to working pressure, air or fluid compatibility, wear conditions and seal materials. Before ordering, provide the valve-body bore dimensions, operating conditions and required port arrangement so the spool can be manufactured to the intended fit.

CNC Brass Pneumatic Valve Spool Precision Turned Flow-Control Part

For more custom copper and metal components, explore our Copper CNC Machining capabilities or Custom CNC Machining Services.

Need a Similar Custom Part?

Have a drawing or CAD file for a similar component? Send us your requirements, material and quantity for a quotation. Request a CNC Machining Quote
