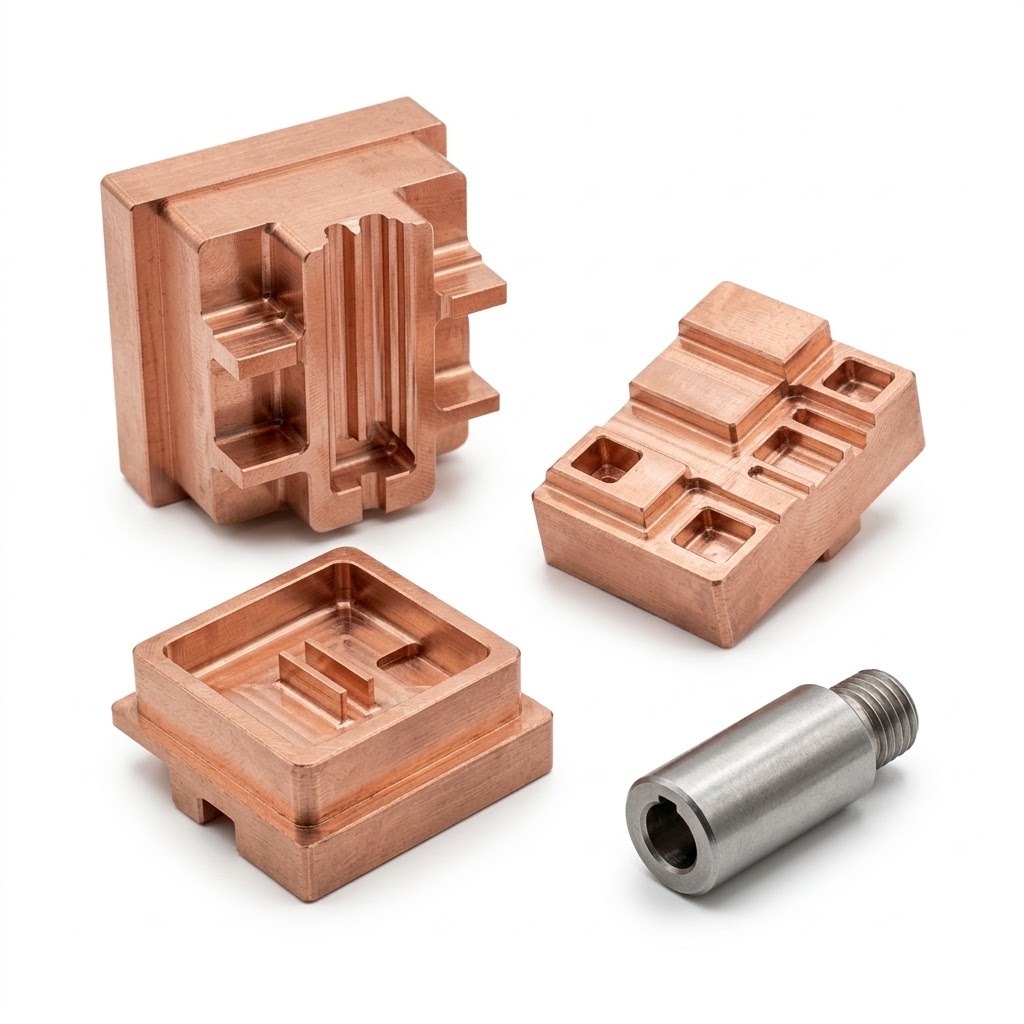

CNC C110 Copper EDM Electrode for Precision Mold Cavity Machining
CNC C110 Copper EDM Electrode for Precision Mold Cavity Machining
CNC C110 Copper EDM Electrode for Precision Mold Cavity Machining
CNC C110 Copper EDM Electrode for Precision Mold Cavity Machining
CNC C110 Copper EDM Electrode for Precision Mold Cavity Machining
CNC C110 Copper EDM Electrode for Precision Mold Cavity Machining
CNC C110 Copper EDM Electrode for Precision Mold Cavity Machining
CNC C110 Copper EDM Electrode for Precision Mold Cavity Machining
Specifications
Model Number :
Custom
MOQ :
1
Delivery Time :
7-14 days
Quality Control :
Electrode Profile Inspection, CMM Measurement, Critical Feature Verification, Bore Inspection as Required
Processing :
CNC Milling, Profile Machining, Drilling as Required
Certification :
ISO9001:2015
Packaging Details :
Accept buyer's request for customized packaging
Payment Terms :
L/C,D/A,D/P,T/T
Material :
C110 Copper or Grade Specified on Drawing
Surface Treatment :
Fine Machined Finish, Edge Deburring
Place of Origin :
China
Brand Name :
Shiye
Price :
According to the drawings
Tolerance :
±0.01mm
Supply Ability :
10000Pcs/ Month
Application :
Injection Mold Inserts, Sinker EDM Cavity Machining
Description

This custom CNC machined C110 copper electrode is designed for sinker EDM operations used to produce deep cavities, narrow ribs and intricate details in hardened injection mold inserts. The electrode's working face transfers the required negative geometry into the tool steel through controlled electrical discharge.
Copper offers good electrical conductivity and is widely used for EDM electrodes, while the final geometry must account for the specified spark gap, electrode wear and flushing conditions.
Before production, confirm the mold cavity drawing, electrode compensation allowance, mounting reference, required surface finish and whether flushing holes are needed. The electrode profile should be inspected against the compensated CAD model before EDM setup.

CNC C110 Copper EDM Electrode for Precision Mold Cavity Machining

For more custom copper tooling and precision conductive components, explore our Copper CNC Machining

For complex cavity profiles and multi face machining, see our CNC Multi-Axis Machining.
