CNC Alloy Steel Robot Cycloidal Reducer Pin Carrier for Robotic Joint Drives
CNC Alloy Steel Robot Cycloidal Reducer Pin Carrier for Robotic Joint Drives
CNC Alloy Steel Robot Cycloidal Reducer Pin Carrier for Robotic Joint Drives
CNC Alloy Steel Robot Cycloidal Reducer Pin Carrier for Robotic Joint Drives
CNC Alloy Steel Robot Cycloidal Reducer Pin Carrier for Robotic Joint Drives
CNC Alloy Steel Robot Cycloidal Reducer Pin Carrier for Robotic Joint Drives
CNC Alloy Steel Robot Cycloidal Reducer Pin Carrier for Robotic Joint Drives
CNC Alloy Steel Robot Cycloidal Reducer Pin Carrier for Robotic Joint Drives
Specifications
Model Number :
Custom
MOQ :
1
Delivery Time :
7-14 days
Quality Control :
Pin Bore Pitch Inspection, CMM Measurement, Concentricity Verification, Hardness Testing as Required
Processing :
CNC Milling, Precision Drilling, Thread Machining, Internal Passage Machining
Certification :
ISO9001:2015
Packaging Details :
Accept buyer's request for customized packaging
Payment Terms :
L/C,D/A,D/P,T/T
Material :
4140 Alloy Steel or Grade Specified on Drawing
Surface Treatment :
Heat Treatment and Protective Finish as Specified
Brand Name :
Shiye
Place of Origin :
China
Price :
According to the drawings
Tolerance :
±0.01mm
Supply Ability :
10000Pcs/ Month
Application :
Robot Cycloidal Reducers, Industrial Rotary Joint Drives
Description

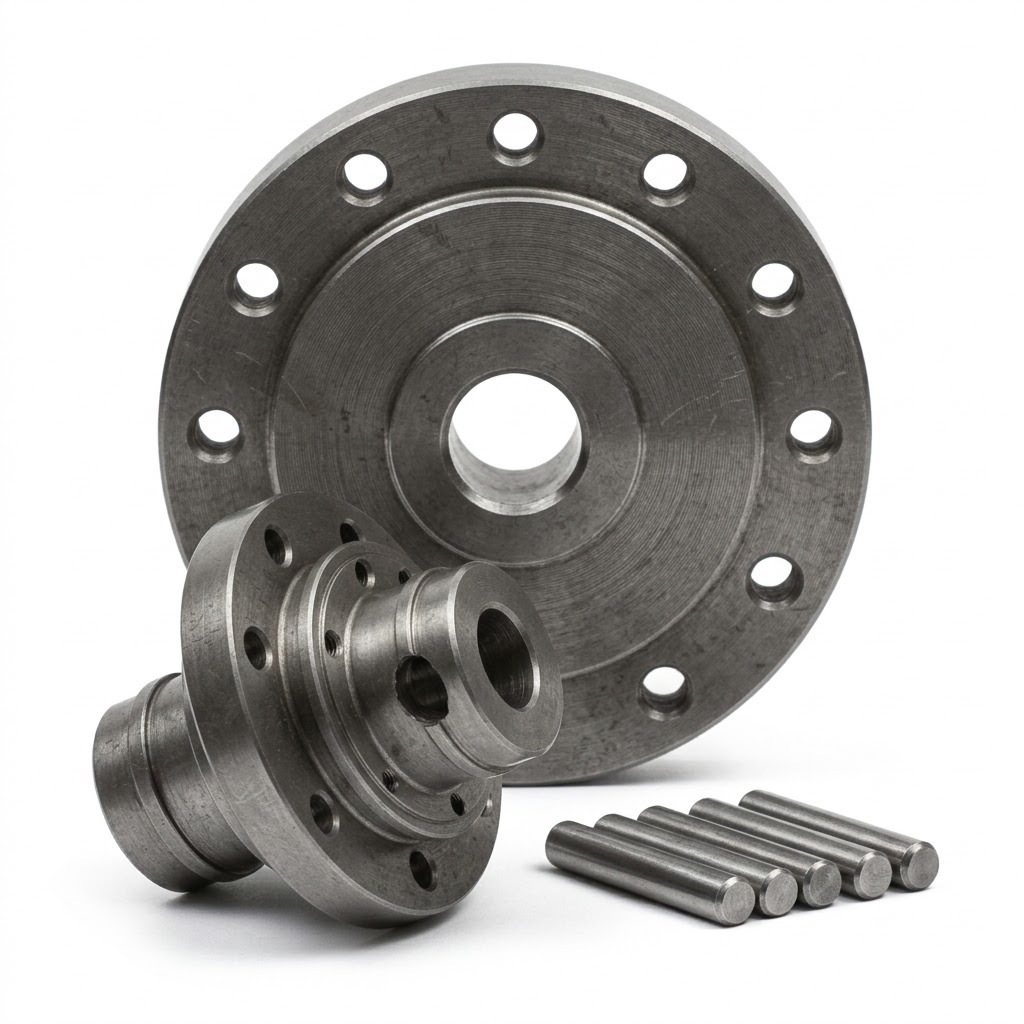

This custom CNC machined pin carrier is designed for cycloidal reducers used in industrial robot joints and precision rotary positioning systems. The circular pin pattern provides mounting locations for the specified output pins, while the central bore and stepped hub establish the locating interface within the reducer assembly.
Alloy steel can provide the strength required for loaded transmission components when the material condition and heat treatment are selected for the intended duty. The final design must match the reducer's pin arrangement, output torque, bearing layout and mounting geometry.
Before production, confirm the pin circle diameter, hole count, pin fit, central bore, face runout and material hardness requirements. Since heat treatment can change critical dimensions, the inspection plan should define which features are measured before and after treatment.

CNC Alloy Steel Robot Cycloidal Reducer Pin Carrier for Robotic Joint Drives

For more custom robot reducer and precision transmission components, explore our CNC Robot Parts

For precision bores and multi face transmission components, see our CNC Multi-Axis Machining.

Need a Similar Custom Part?

Have a drawing or CAD file for a similar component? Send us your requirements, material and quantity for a quotation. Request a CNC Machining Quote
