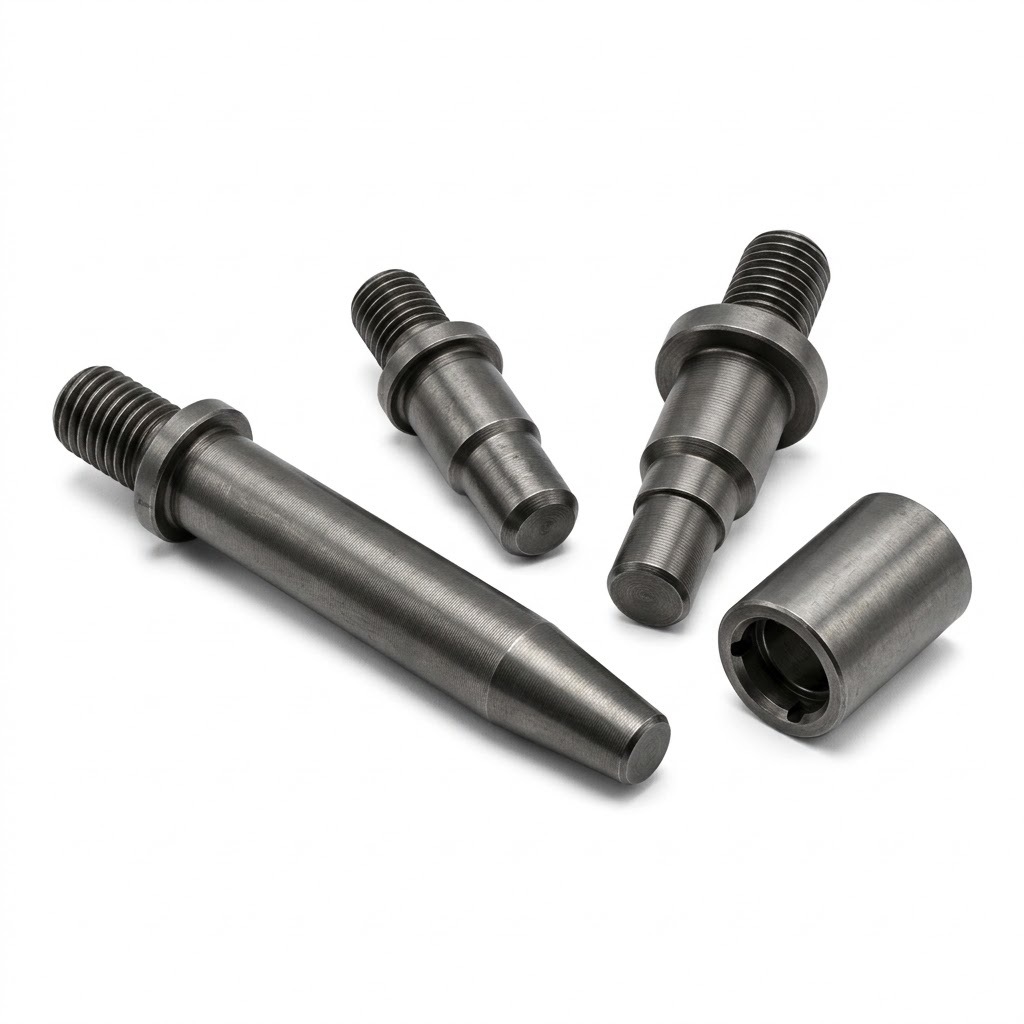

CNC Hardened Steel Robot Tool Changer Locking Pin for Automated End Effectors
CNC Hardened Steel Robot Tool Changer Locking Pin for Automated End Effectors
CNC Hardened Steel Robot Tool Changer Locking Pin for Automated End Effectors
CNC Hardened Steel Robot Tool Changer Locking Pin for Automated End Effectors
CNC Hardened Steel Robot Tool Changer Locking Pin for Automated End Effectors
CNC Hardened Steel Robot Tool Changer Locking Pin for Automated End Effectors
CNC Hardened Steel Robot Tool Changer Locking Pin for Automated End Effectors
CNC Hardened Steel Robot Tool Changer Locking Pin for Automated End Effectors
Specifications
Model Number :
Custom
MOQ :
1
Delivery Time :
7-14 days
Quality Control :
Diameter Measurement, Groove Inspection, Thread Gauging, Hardness Verification as Required
Processing :
CNC Turning, Groove Machining, Thread Machining, Finish Grinding as Specified
Certification :
ISO9001:2015
Packaging Details :
Accept buyer's request for customized packaging
Payment Terms :
L/C,D/A,D/P,T/T
Material :
4140 Alloy Steel or Grade Specified on Drawing
Surface Treatment :
Heat Treatment and Protective Finish as Specified
Brand Name :
Shiye
Place of Origin :
China
Price :
According to the drawings
Tolerance :
±0.01mm
Supply Ability :
10000Pcs/ Month
Application :
Robot Tool Changers, Automated End Effector Exchange Systems
Description

This custom CNC machined locking pin is designed for robotic quick change systems used in automated machine tending, pallet loading and end effector exchange. The locating diameters guide the pin into its mating interface, while the locking groove works with the specified locking mechanism to retain the tool during operation.
Hardened alloy steel can improve wear resistance for repeatedly engaged locating and locking surfaces. The heat treatment condition and final surface treatment must match the design's load, wear and fit requirements.
Before production, confirm the tool changer model, mating bore dimensions, locking mechanism geometry, pin insertion depth, required hardness and lubrication conditions. Critical checks include the locating diameters, locking groove position, concentricity and dimensional changes after heat treatment.

CNC Hardened Steel Robot Tool Changer Locking Pin for Automated End Effectors

For more custom robot tool changer and end effector components, explore ourCNC Drone Parts

For precision turned parts and multi face interfaces, see our CNC Multi-Axis Machining.

Need a Similar Custom Part?

Have a drawing or CAD file for a similar component? Send us your requirements, material and quantity for a quotation. Request a CNC Machining Quote
