CNC Stainless Steel Surgical Retractor Ratchet Pawl for Reusable Instruments
CNC Stainless Steel Surgical Retractor Ratchet Pawl for Reusable Instruments
CNC Stainless Steel Surgical Retractor Ratchet Pawl for Reusable Instruments
CNC Stainless Steel Surgical Retractor Ratchet Pawl for Reusable Instruments
CNC Stainless Steel Surgical Retractor Ratchet Pawl for Reusable Instruments
CNC Stainless Steel Surgical Retractor Ratchet Pawl for Reusable Instruments
CNC Stainless Steel Surgical Retractor Ratchet Pawl for Reusable Instruments
CNC Stainless Steel Surgical Retractor Ratchet Pawl for Reusable Instruments
Specifications
Model Number :
Custom
MOQ :
1
Delivery Time :
7-14 days
Quality Control :
Ratchet Tooth Profile Inspection, Pivot Bore Measurement, Engagement Fit Verification, Material and Hardness Checks as Required
Processing :
CNC Milling, Precision Drilling, Thread Machining, Internal Passage Machining
Certification :
ISO9001:2015
Packaging Details :
Accept buyer's request for customized packaging
Payment Terms :
L/C,D/A,D/P,T/T
Material :
420 Stainless Steel or Grade Specified on Drawing
Surface Treatment :
Passivation and Surface Finishing as Specified
Brand Name :
Shiye
Place of Origin :
China
Price :
According to the drawings
Tolerance :
±0.01mm
Supply Ability :
10000Pcs/ Month
Application :
Reusable Surgical Retractors, Medical Instrument Locking Mechanisms
Description

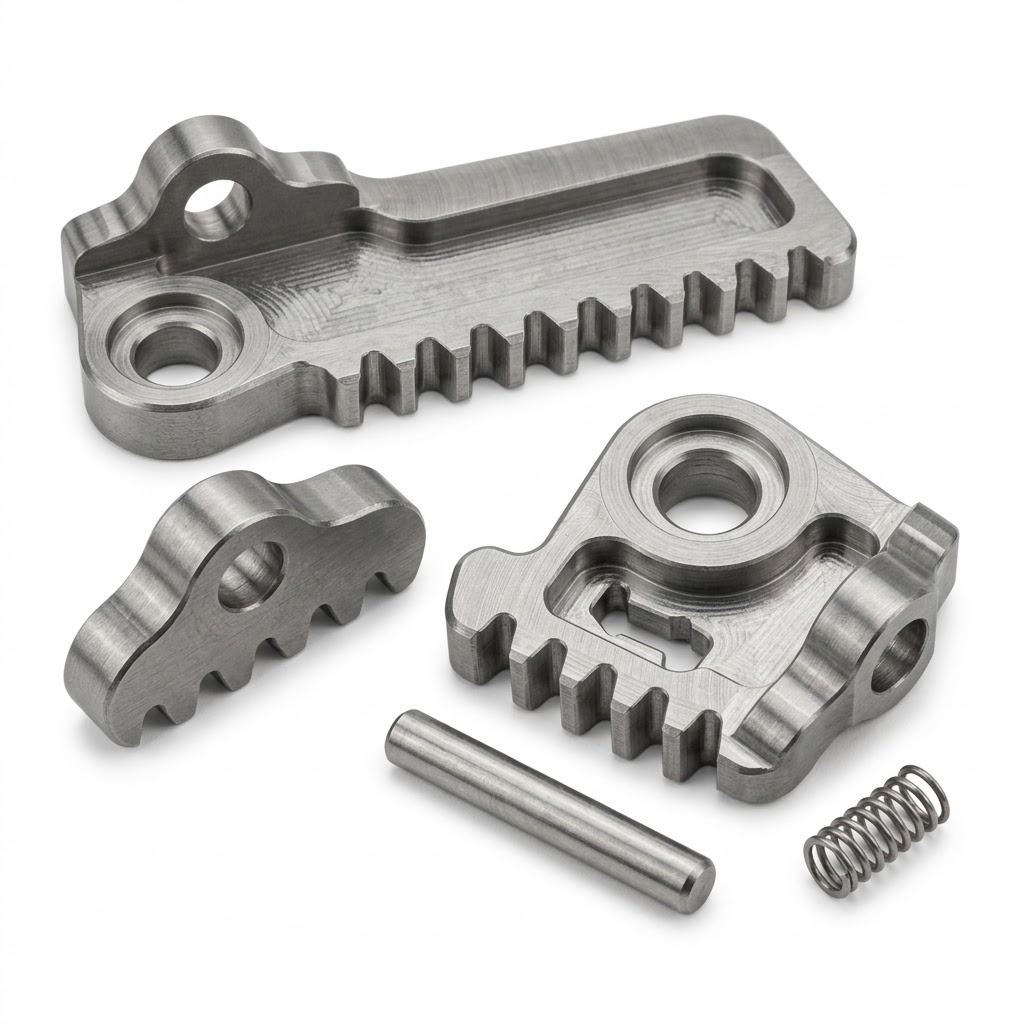

This custom CNC machined ratchet pawl is designed for reusable surgical retractor handles and other medical instrument mechanisms that need to hold a selected opening position during use. Its locking teeth engage with a mating rack or ratchet element, while the pivot bore controls the pawl's movement and the spring contact feature supports the specified engagement action.
The stainless steel grade, hardness and surface finish should be chosen according to the instrument design, wear requirements and cleaning or sterilization process. Material selection alone does not establish medical suitability.
Before production, confirm the mating tooth geometry, pivot diameter, spring contact point, engagement clearance and required surface condition. Tooth engagement and release should be verified within the complete mechanism, while material traceability and reprocessing compatibility should follow the device manufacturer's specifications.

CNC Stainless Steel Surgical Retractor Ratchet Pawl for Reusable Instruments

For more custom medical instrument mechanism components, explore our CNC Medical Parts

For precision tooth profiles, small bores and complex machined surfaces, see our CNC Multi-Axis Machining.

Need a Similar Custom Part?

Have a drawing or CAD file for a similar component? Send us your requirements, material and quantity for a quotation. Request a CNC Machining Quote
