High-Speed USB2.0 Interface BF2013 endoscope Camera module
High-Speed USB2.0 Interface BF2013 endoscope Camera module
High-Speed USB2.0 Interface BF2013 endoscope Camera module
High-Speed USB2.0 Interface BF2013 endoscope Camera module
High-Speed USB2.0 Interface BF2013 endoscope Camera module
High-Speed USB2.0 Interface BF2013 endoscope Camera module
High-Speed USB2.0 Interface BF2013 endoscope Camera module
High-Speed USB2.0 Interface BF2013 endoscope Camera module
High-Speed USB2.0 Interface BF2013 endoscope Camera module
High-Speed USB2.0 Interface BF2013 endoscope Camera module
Specifications
Brand Name :
SincereFirst
Model Number :
SF-G2013EJ23 DVP +SF-WiFiE3
Certification :
CE, FCC, RoHS, REACH, ISO
Place of Origin :
Guangdong , China
MOQ :
5pcs
Price :
Negotiable
Payment Terms :
L/C,Western Union,T/T,MoneyGram,Paypal and Others
Supply Ability :
350000 pcs / month
Delivery Time :
7 - 15 Work Days
Packaging Details :
Package, Carton Box
Product Name :
DVP Interface Endoscope Camera Module
Sensor :
BF2013
Focusing Range :
20-60mm
FOV(D) :
D88
Max Image Circle :
4.8mm
F. NO :
2.8
Warranty :
10 Years
Type :
Endoscope Module With WIFI Board
Keywords :
WIFI Endoscope Module
Description

High-Speed USB2.0 Interface BF2013 endoscope Camera module

High-Speed USB2.0 Interface BF2013 endoscope Camera module

Product Description:

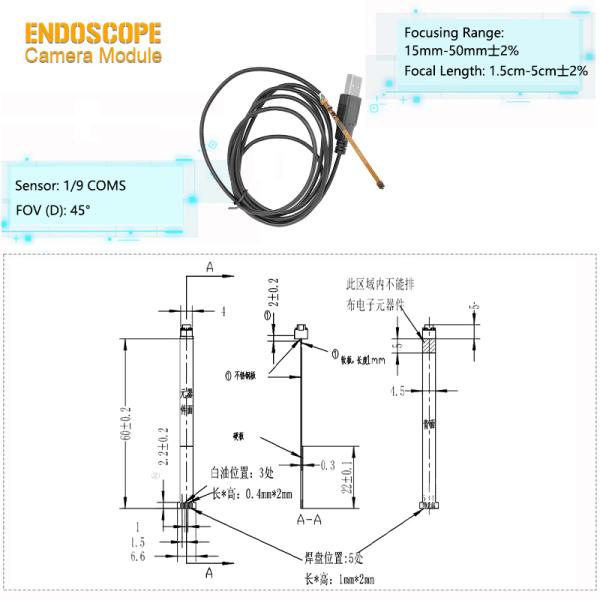

  • This is an endoscope camera module equipped with the BF2013CMOS chip, supporting an image output of 30 FPS at a resolution of 653×493. The module size without the casing is only 2mm, and it uses a USB2.0 interface for output. It is also equipped with 6 LED lights. It is mainly applied in scenarios such as industrial inspection, pipeline maintenance, and medical diagnosis.

Features:

1. 2-millimeter ultra-small module size
2. Supports stable output of 653* 493p@30FPS HD images
3. Output via USB2.0 interface, compatible with multiple operating systems
4. Six adjustable LED fill lights



Technical Parameters:

Product Name

USB2.0 Endoscope Camera Module

Sensor

BF2013
Focus Range 15-50mm

FOV(D)

D45°

Max Image Circle

 4.8mm

Format

YUV&MJPG

Features

６Lanes Endoscope Camera Module

Interface

 USB Interface

Warranty

10 Years

F. NO

 2.8

Applications:

Medical Field: For internal inspection of medical equipment, such as surgical instruments, maintenance and repair of medical equipment.
Industrial Machinery: For internal inspection and maintenance of factory equipment, such as troubleshooting inside pipes and machines.

High-Speed USB2.0 Interface BF2013 endoscope Camera module

Customized Process:

1. You can provide drawings or samples, as well as request documentation and developed by our engineering staff.
2. Communication or Meeting
3. We will communicate with you in detail to determine somewhat product you need and try to set the most suitable product for you
according to your needs.
4. Sample Development
5. Determine the details of the development sample and the delivery time. Communicate at any time to ensure smooth progress.
6. Sample Testing
7. Test and age on your application, feedback test results, no need to modify, mass production.

About US:

High-Speed USB2.0 Interface BF2013 endoscope Camera module

Cooperative Brands & Customers:

High-Speed USB2.0 Interface BF2013 endoscope Camera module

Why Chooes US:

High-Speed USB2.0 Interface BF2013 endoscope Camera module

Detail Pictures:

High-Speed USB2.0 Interface BF2013 endoscope Camera module

High-Speed USB2.0 Interface BF2013 endoscope Camera moduleHigh-Speed USB2.0 Interface BF2013 endoscope Camera module
