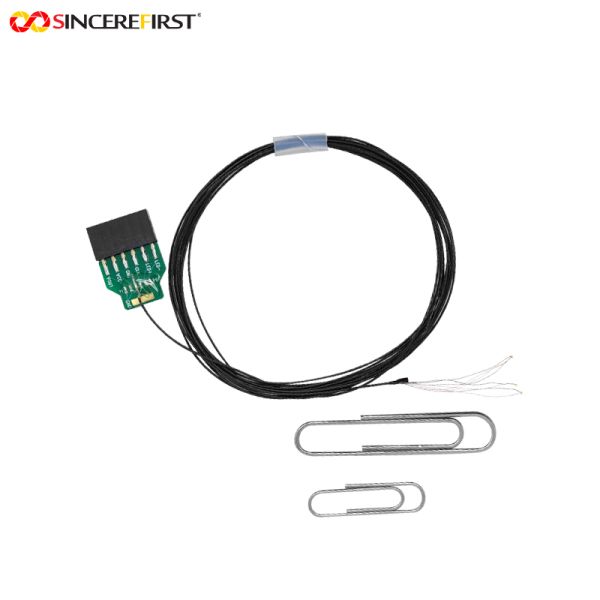

Medical 1MP OCHFA20 Sensor 720X720 Pixel Endoscope Camera Module

Product Description:

It's a Medical 1MP OCHFA20 Sensor 720×720 Pixel Endoscope Camera Module, designed for high‑precision endoscopic and microscopic inspection.It integrates a 1/18‑inch miniature sensor to deliver 720×720 HD resolution, with 1.008μm pixel size and 120° wide‑angle FOV for clear panoramic imaging in confined spaces.It is a separate wiring harness that connects the fill light to the main unit, enabling fill light function without increasing the device size while allowing flexible placement of the fill light.Stable performance in low‑light conditions and low‑latency real‑time video streaming meet the instant imaging requirements of medical and industrial inspection.The lightweight structure is suitable for endoscopic diagnosis, pipeline inspection, and scientific microscopy in dry or controlled environments.

Features:

1.Ultra-Miniature Sensor Structure:Featuring a 1/18-inch sensor, it achieves a breakthrough with an ultra-slim 1.5mm lens diameter, enabling access to confined spaces as narrow as 3mm or less, significantly expanding detection scenarios.

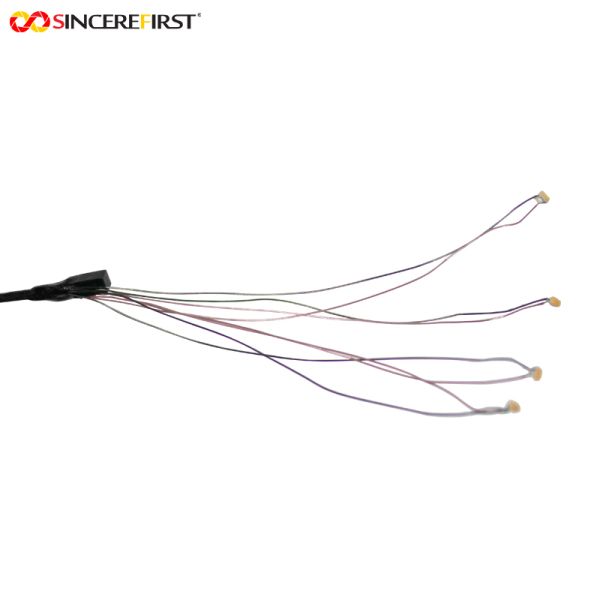

2.Flexible Split Fill Light Harness:Separate wiring harness that connects the fill light to the main unit, enabling fill light function without increasing the device size

3.Real-Time Dynamic Imaging:Millisecond-level low-latency transmission ensures synchronization between surgical operations and image display, meeting the needs of dynamic detection.

4.Lightweight Specialized Design:Plastic material density is significantly lower than that of glass and metal. Combined without Steel Shell design, this achieves the ultimate in lens lightweighting, making it perfectly suited for miniature detection and portable devices.

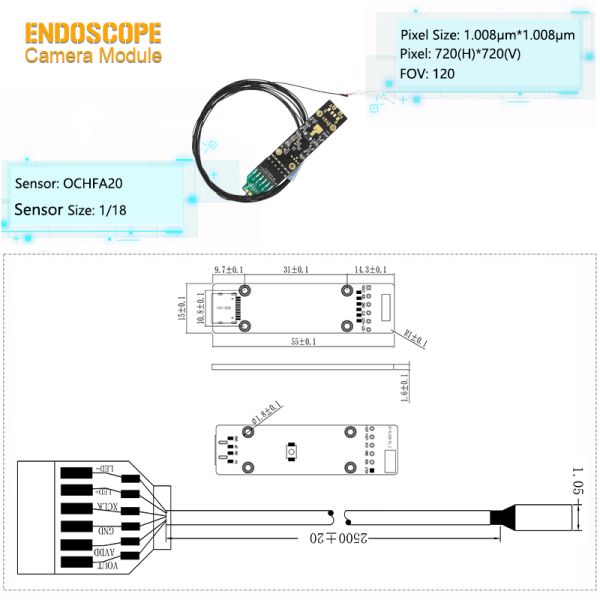

Technical Parameters:

Applications:

• Medical Diagnostics: Suitable for disposable endoscopes and minimally invasive surgical instruments, with its 1/18" ultra-miniature sensor enabling high-definition imaging in narrow anatomical cavities, while medicalgrade waterproofing and sterilization compliance meet clinical hygiene standards
• Industrial Inspection: Deployed in pipeline borescopes, precision machinery fault detection, and electronic assembly inspection, the 720×720 resolution paired with a 120° wide-angle lens supports clear internal imaging in confined spaces, aiding accurate defect identification
• Used in laboratory animal imaging, microorganism observation, and material microstructure analysis, the realtime video transmission and adjustable LED lighting provide stable imaging support for experimental data acquisition
• Veterinary Medicine: Applied in pet internal examinations and livestock reproductive monitoring, the compact design adapts to non-human anatomical structures, while durable construction withstands repeated disinfection cycles in veterinary practice.

Customized Process:

1. You can provide drawings or samples, as well as request documentation and developed by our engineering staff.
2. Communication or Meeting
3. We will communicate with you in detail to determine somewhat product you need and try to set the most suitable product for you
according to your needs.
4. Sample Development
5. Determine the details of the development sample and the delivery time. Communicate at any time to ensure smooth progress.
6. Sample Testing
7. Test and age on your application, feedback test results, no need to modify, mass production.
