12MP High-Performance CMOS Sensor Led Endoscope Camera Module

Product Description:

• This is a 12MP high-performance CMOS sensor LED endoscope camera module, equipped with a high-performance CMOS color image sensor. Boasting 12MP high pixels, it can output a high-definition resolution of 3840x3104 and supports a maximum smooth frame rate of 30FPS, providing a clear and stable foundation for image presentation. The sensor size reaches 1/3.06 inch, with a pixel size of 1.12μm x 1.12μm. Combined with the F2.2 large aperture design, it effectively enhances light intake and image quality. The module features an 80.9° field of view, with a depth of field ranging from 3.5cm to infinity, and supports auto-focus to flexibly capture details at different distances. It adopts a USB2.0 interface and is compatible with the UVC protocol, ensuring convenient connection and strong adaptability. With an integrated design, the lens has a diameter of only 12.5mm and is supplied as a bare module. The lens integrates 8 LED beads to meet lighting needs, and SMT technology and AA processes are used in production to ensure product accuracy and reliability.

Features:

1. HD Imaging Quality: 12MP high pixels paired with 3840x3104 resolution, F2.2 aperture enhances light intake, and 30FPS frame rate ensures smooth images without motion blur.
2. Wide and Flexible Field of View: 80.9° field of view combined with a depth of field from 3.5cm to infinity, plus auto-focus, easily adapts to different observation distances.
3. Flexible Lens Design: The 12.5mm slim lens allows easy access to narrow spaces, and 8 integrated LED beads solve the problem of observation in dark environments.

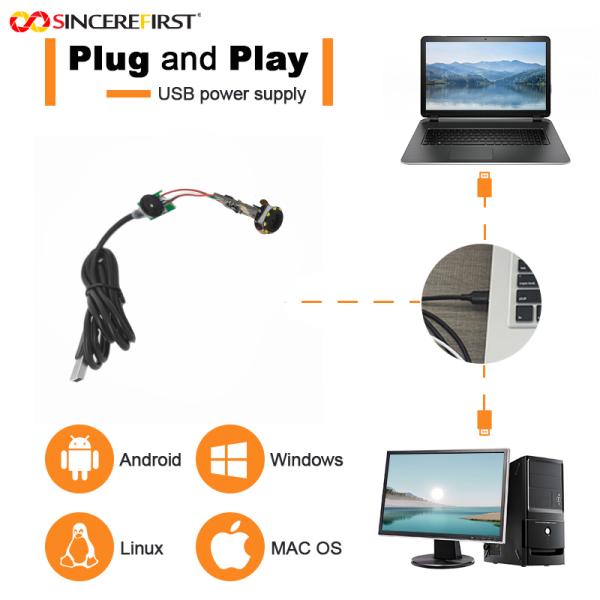

4. Strong Compatibility: Supports UVC protocol and USB2.0 interface, enabling plug-and-play compatibility with multiple systems; the bare module design facilitates secondary development.

5. Stable Quality: Adopts SMT technology and AA processes to ensure product consistency and stability.

Technical Parameters:

Applications:

Industrial Inspection: Penetrates into pipelines and mechanical cavities to detect defects such as welds and corrosion; LED beads ensure imaging in lightless environments.
Medical Field: Suitable for minimally invasive examinations; high-pixel images help observe subtle lesions, and it is compatible with medical equipment systems.
Security Inspection: Equipped on pipeline robots for real-time monitoring of concealed areas such as underground pipe networks and cable tunnels.
Cultural Relic Restoration: Penetrates into gaps or internal structures of cultural relics, clearly records details to assist in formulating restoration plans, and supports customized installation.

Customized Process:

1. You can provide drawings or samples, as well as request documentation and developed by our engineering staff.
2. Communication or Meeting
3. We will communicate with you in detail to determine somewhat product you need and try to set the most suitable product for you
according to your needs.
4. Sample Development
5. Determine the details of the development sample and the delivery time. Communicate at any time to ensure smooth progress.
6. Sample Testing
7. Test and age on your application, feedback test results, no need to modify, mass production.
