Low Pressure Temperature Altitude Climate Test Chamber For National Defense
Low Pressure Temperature Altitude Climate Test Chamber For National Defense
Low Pressure Temperature Altitude Climate Test Chamber For National Defense
Low Pressure Temperature Altitude Climate Test Chamber For National Defense
Low Pressure Temperature Altitude Climate Test Chamber For National Defense
Low Pressure Temperature Altitude Climate Test Chamber For National Defense
Specifications
Brand Name :
Komeg
Model Number :
KU-215S
Certification :
CE approval
Place of Origin :
China
MOQ :
1pcs
Price :
Negotiation
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
100pcs /day
Delivery Time :
35 day after confirm the order
Packaging Details :
rigid poly foam and wooden box
Temp Range :
-70℃ ～ +100℃
Temp Deviation :
≦ ± 2.0℃
Normal pressure :
0.5kPa
Interior material :
Stainless steel
Exterior Material :
Baked Painting Steel
Power Supply :
AC380V/50H
Description

215L Low Pressure Temperature Altitude Climate Test Chamber For National Defense

OEM &ODM are welcome ,pls kindly contact:anna@komegtech.com

Application

Test chamber with simulated temperature and altitude (low pressure) environment climate is mainly used

for weather resistance tests in aviation, aerospace, electronics, national defense, scientific research and

other fields. Through the use of high-temperature, low-temperature, damp-heat, low-pressure single

climatic factors or multiple climatic factors, it is used to evaluate the reliability of products or material

components used, stored and transported under the corresponding temperature, damp heat, and low

pressure environment. The test piece is energized for the measurement of electrical performance

parameters.

Main technical specification
Temp. range

-70℃ ～ +150℃
Temp. deviation

≤±2.0℃
Temp. fluctuation

±0.5℃
Temp. uniformity

≦2.0℃Overall average
Heating and cooling rate

Heating up &Cooling down: from 0.7℃ -1.0℃ (Overall average)
Chamber size

Inner W 60 × H 60 × D60 mm

Exterior Size according to design
Insluation box

wall material: high-quality carbon steel with surface spray

inner wall material: SUS304 # matte stainless steel plate

insulation materials: rigid polyurethane foam insulation layer + glass fiber
Door

Single door,Left open , heating wire is installed at the door frames to prevent

condensation at low temperatures
Obverstion Window

coated insulating glass
Lighting Device

1 PC 11W/AS220V installed in the inspection window

Other specification

Ⅵ. Cooling System
1. Working mode

Mechanical compression refrigeration
2. Compressor

Europe and the United States imported hermetic compressor
3. Refrigerant

Environmental-friendly refrigerant: R404A
4. Blower

Axial Fan
5. Evaporator

Fin-type multi-stage automatic load capacity adjustment, No frost in

long-term use of low temperature and humidity conditions
6. Optional accessories

Remote monitoring computer and software, video monitoring system,

fast back pressure device, rapid pressure relief device, nitrogen assist

device
7.Refrigerant flow control

Adjust energy consumption output and control automatically to the

refrigeration system.

Feathers

1. GB/T10590-2006 high and low temperature / low pressure test chamber technical conditions


2. GB/T2423.25-1992 Comprehensive test of low temperature/low pressure


3. GB/T2423.26-1992 Comprehensive test of high temperature/low pressure


4. GJB150.2-86 low/low pressure (height) test

5. Scalable APP Mobile Platform Management


6. Specially designed water ring low pressure control technology to efficiently balance pressure control.

7. Multiple protection facilities, configure wireless remote alarm device

8. Modern design latest modular manufacturing technology, perfect control ability

9. LCD touch screen, there is a fault dialogue menu, fault text commentary exclusion menu


10.Built-in radiation hood design effectively guarantees low temperature uniformity

Photos show

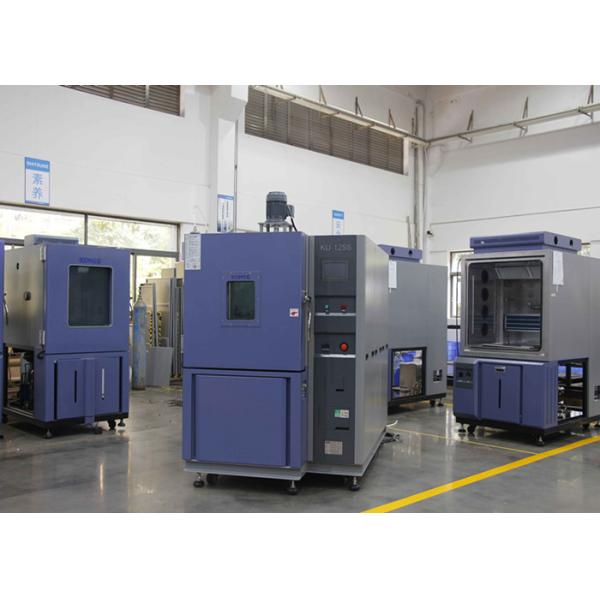

Low Pressure Temperature Altitude Climate Test Chamber For National Defense
