Low & High Temperature Low Pressure Altitude Climatic Test Chamber
Low & High Temperature Low Pressure Altitude Climatic Test Chamber
Low & High Temperature Low Pressure Altitude Climatic Test Chamber
Low & High Temperature Low Pressure Altitude Climatic Test Chamber
Low & High Temperature Low Pressure Altitude Climatic Test Chamber
Low & High Temperature Low Pressure Altitude Climatic Test Chamber
Specifications
Brand Name :
Komeg
Model Number :
KU576
Certification :
CE approval
Place of Origin :
China
MOQ :
1pcs
Price :
Negotiation
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
100pcs /day
Delivery Time :
35 day after confirm the order
Packaging Details :
rigid poly foam and wooden box
Temp Range :
-40℃ ～ +150℃
Temp Deviation :
≦ ± 2.0℃
Pressure range :
Normal Pressure ～1k Pa
Interior material :
Stainless steel
Exterior Material :
Baked Painting Steel
Heat up time :
-20℃ ～ +100℃ within 35 min
Description

1000L Low&High Temperature Altitude Climate Test Chamber For Test Electrical

OEM &ODM are welcome ,more information , pls kindly contact :anna@komegtech.com

Application

High and low temperature low pressure test chamber is an electronic technology product (including components, materials and instrumentation) mainly used in aviation, aerospace, electronics, defense, scientific research and other industrial sectors to determine the electrician. Under the single or simultaneous action of high and low temperature and low pressure, the storage and transportation reliability test can be carried out, and the test pieces can be electrified at the same time to test the electrical performance parameters.

Standards Implement and Met

GB11159-89
GB10590-89
GB15091-89
GB/T2423.25-1992
GB/T2423.26-1992
GJB150.0-86

Main technical specification
Temp. range

-70℃ ～ +100℃
Temp. deviation

≤±2.0℃
Temp. fluctuation

±0.5℃(Normal pressure ,no load )
Temp. uniformity

≦2.0℃ (Normal pressure ,no load )
Heating and cooling rate

0.7℃-1.0℃(whole process average)
Chamber size

inner W 100 × H100 × D100 cm

Exterior Size W 181 × H 209 × D 266 cm
Pressure range

Normal pressure ～ 0.5k Pa
Blood presure rate

Normal pressure ～ 1k Pa ,within 30 min ( no load ,dry inside the chamber)
Rovery rate ≦10K pa/min
Sensor

PT-l00

Other specification

Control system

PLC+PID
Accuracy range

Setting Accuracy: Temperature ±0.1°C, Indicating Accuracy: Temperature ±0.1°C,

Resolution: ±0.1°C
Temperature Sensor Platinum resistor PT100Ω/MV
Heating system

Fully self-contained system, Nichrome electric heating heater
Cooling system

French Schneider
Cycling system Temperature and low noise air conditioning motor. Multi-leaf centrifugal wind wheel
Operation interface

There are digital display, real-time curve, operation selection, timing setting, program

setting, alarm, parameter setting, etc.
Curve recording function

The set value, sampling value, and sampling time of the device can be saved; the

maximum storage time is 30 days. At the same time, there are a total of 5 real-time curves

with different capacity and resolution for 30 days, 7 days, 24 hours, 8 hours,

and 1 hour and real-time data can be displayed to meet the different needs of users.

,

Power

AC 3ψ4W 380V 50Hz (R, S, T, N plus ground) (voltage fluctuation ≦ ± 10%)

Grounding

Grounding resistance≦4Ω

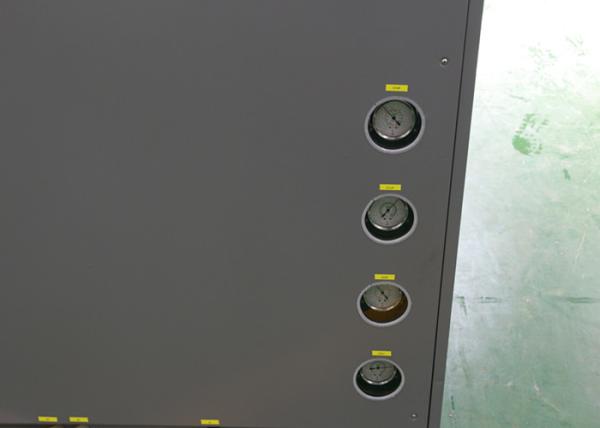

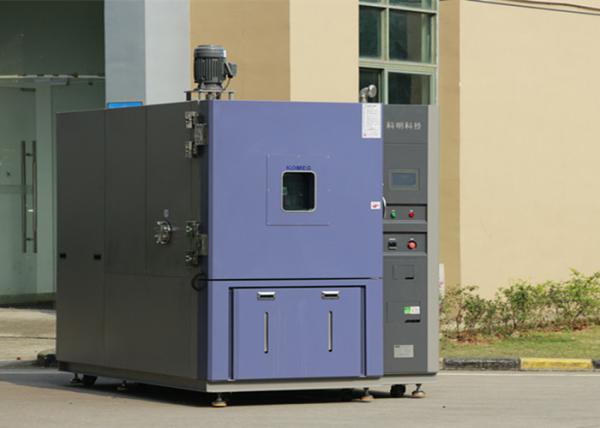

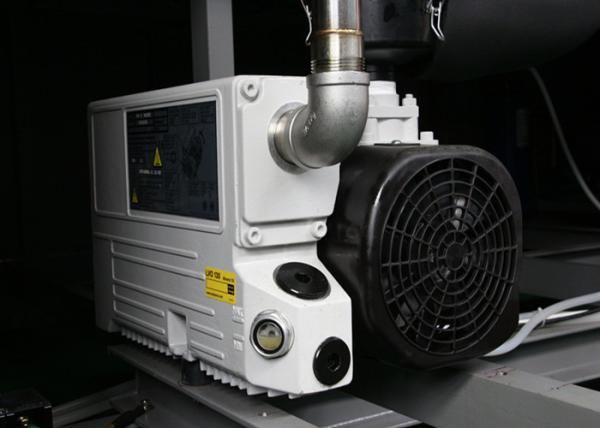

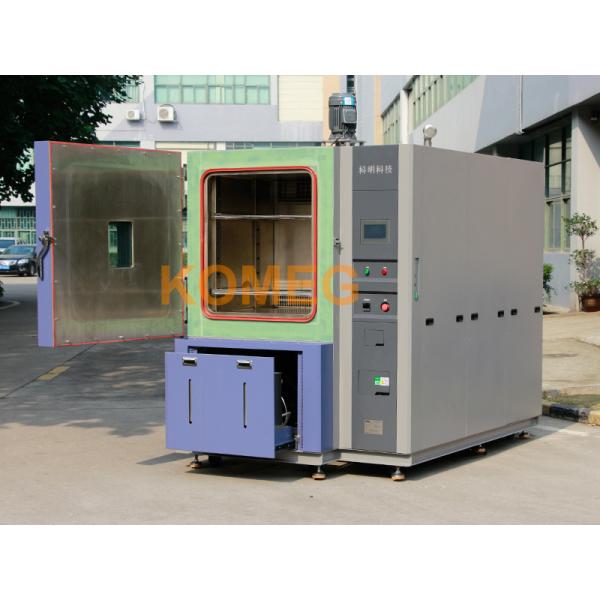

Photos show

Low & High Temperature Low Pressure Altitude Climatic Test Chamber
