High Precision Altitude Test Chamber Touch Screen Controller 2300L Temperature Attitude Chamber
High Precision Altitude Test Chamber Touch Screen Controller 2300L Temperature Attitude Chamber
High Precision Altitude Test Chamber Touch Screen Controller 2300L Temperature Attitude Chamber
High Precision Altitude Test Chamber Touch Screen Controller 2300L Temperature Attitude Chamber
High Precision Altitude Test Chamber Touch Screen Controller 2300L Temperature Attitude Chamber
High Precision Altitude Test Chamber Touch Screen Controller 2300L Temperature Attitude Chamber
High Precision Altitude Test Chamber Touch Screen Controller 2300L Temperature Attitude Chamber
High Precision Altitude Test Chamber Touch Screen Controller 2300L Temperature Attitude Chamber
Specifications
Brand Name :
KOMEG
Model Number :
KU-2300S
Certification :
CE/ROHS/FCC/
Place of Origin :
China
MOQ :
1Set
Price :
Negotiation
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
1, 000~1, 500 SETS / YEAR
Delivery Time :
30 days after confirm the order
Packaging Details :
Rigid foam and wooden box
Product Name :
High Altitude Simulation Test Chamber
Application :
Steady And Transient State Testing
Exterior Material :
Baked Painting Steel
Interior Material :
Stainless Steel
Temp Range :
-70℃ ～ +100℃
Pressure range :
Constant voltage~0.5kPa
Description

High precision touch screen controller 2300L temperature attitude testing chamber

Applications


High and low temperature low pressure is suitable for the product (machine), spare parts, materials of

high temperature, low temperature, high, high and low temperature cycling test and temperature level

test, high temperature test, the test box can be used to test the heat of test samples and non heat

dissipating specimens. For the test of heat dissipation test sample, the radiating power of the altitude low

pressure test chamber can not exceed that of the test box. Because of the dynamic value of refrigerating

volume, it changes with the change of temperature.

Features

● Temperature range from -70 to 170℃

● Altitude range ground to 100,000 feet

● External pressure type box body structure and stainless steel tank design, rational air circulation

system and scientific layout of heating, refrigerating system.

● Adopts international brand of imported parts for cooling system to improve operation reliability

● High precision and stable performance with touch screen controller, friendly Man-Machine interface.

● Multiple layers of safety device to easy maintenance.

● Viewing window and cable ports available

● Vacuum pump sized for climb/dive rate required by application

Specifications

Model KU-2300S
Inner Size (D*W*H)mm W261*H239*D266
Performance Temp range -70℃～+150℃
Temp constancy ±0.5％
Temp deviation ≥100℃, ±3.0℃(at constant pressure with empty load)
＜100℃, ±2.0℃(at constant pressure with empty load)
Cooling rate 0.7℃～1.0℃/min(Overall average)
Pressure range Constant pressure ～1kPa
Pressure constancy When ≥40kPa, ±2kPa, 4kPa～40pKa ±0.5kPa, when≤4kPa, ±0.1kPa
Depressurization rate Constant pressure～1kPa≤30mins(Normal temp)
Pressure recovery rate 10kPa/Min(adjustable)
Material Exterior material Cold-rolled steel sheet(Rust proof&Plastic Spray treated)/Stainless Steel plate
Interior material Stainless steel(SUS304)
Pressurized parts High quality steel plate(Rust proof & Plastic spray treated)
Insulation material High quality glass wool
Cooling System Compressor Semi-Hermetic Compressor
Cooling Mode Water cooled
Temp regulating method Balanced Temperature & Humidity Control System (BTHC)
Pump Rotary vane type vacuum pump
Heater Iron-chrome wire heater
Sight window Circular viewing glass incorporating heat generator
Temp Sensor Pt-100
Controller Touch Screen Controller
Safety Devices Over pressure, over heat and over current protection for compressor, over temp. protection, over load protection for blower, Hydraulic and Water lack Protection, leakage protection, phase-lack protection, Pump failure alarm
Standard Accessory Sight window, Cable Port( 1 located on the left side), Baffle, Baffle frame*2
Power AC380V/50Hz, 3Phase 5 wires+ Ground Wire.
Note: 1. We reserve the right to change specifications without prior notice 2. Customized sizes and configurations available

Main Features of our high altitude test chamber:

1. 5.6" LCD touch screen color controller, Korea Samvontech brand.

2. 120 patterns*1200 steps, circulation Setting: Max. 9999 cycles.

3. PID+SSR / SCR controller.

4. RS-232 / RS-485 / USB / Ethernet / RJ45 communication interface.

5. Pressure range: atmosphere pressure to 0.5KPa

6. Inner cable port of 50mm/100 mm can meet the requiremnt of power- on test for user's product.

7. SUS#304 stainless steel plate inner chamber.

8.1 year free parts warranty, extended warranty is also available.

Environmental test chamber Standard


B10592-89 Technical requirements for high and low temperature test chamber
GB2423.1-1989 Low temperature test
GB2423.2-1989 High temperature test mode

Prouduct Display

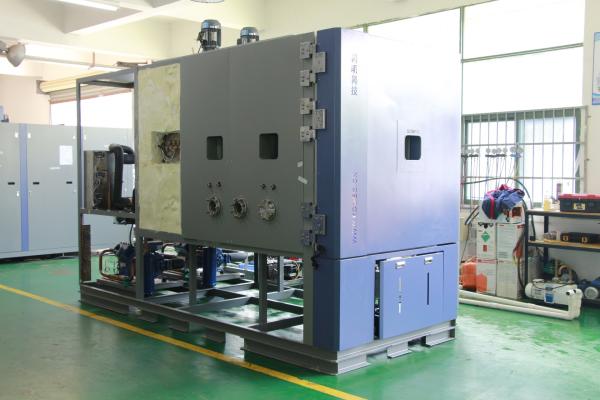

High Precision Altitude Test Chamber Touch Screen Controller 2300L Temperature Attitude Chamber

High Precision Altitude Test Chamber Touch Screen Controller 2300L Temperature Attitude Chamber

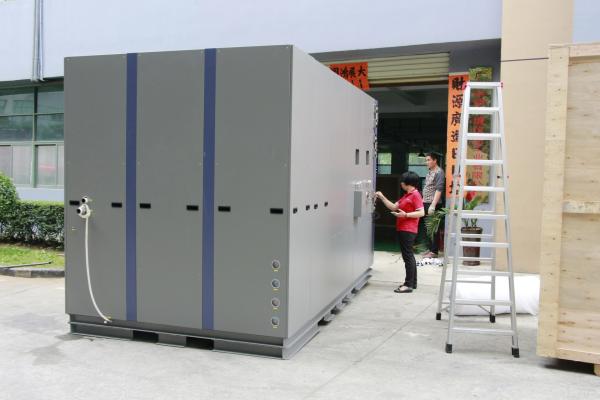

Packing and Shipment:

(1).Strong standard wood case, inner plastic films wrapped for temperature and humidity test chamber
(2).Usually we delivery the equipment by air,by sea or by express. it depends on customer.
High Precision Altitude Test Chamber Touch Screen Controller 2300L Temperature Attitude Chamber

After-sale Service:

If you face any problems in future during testing process we promise we will give you a reply within 48

hours and solution provide within 3 working days. We can offer operation video and English operation

muanual. We can provide video-conference. If customers require on-site service, the transport and travel

expense shall be borne by customer.
