Specifications
Brand Name :
KOMEG
Model Number :
KST-966B
Certification :
CE,UL
Place of Origin :
China
MOQ :
1SET
Price :
Negotiation
Payment Terms :
L/C, T/T, Western Union, MoneyGram
Supply Ability :
1000 sets a year
Delivery Time :
30 days after confirm the order
Packaging Details :
Rigid foam and wooden box
High Temp. chamber :
+60ºC～+200ºC
Test. chamber :
-40ºC～+150ºC
Interior Material :
SUS304
Exterior Material :
Baked Painting Steel Or SUS304
Insulation material :
Rigid polyurethane Foam + glass fiber wool
Ambient Temp :
+5ºC～+35ºC
Description

High temp +60ºC～+200ºC 996L water cooled 3-Zone thermal shock chamber

Product Description

three chamber in total: test space, high temp. chamber and low temp. chamber;

Advantage: slight limitation for test sample’s weight, the test sample keep still, this can reduce the impact

to samples by moving it, can be used for on-load testing.

Compared with 2-zone type, relatively low failure rate, low cost.

Disadvantage: long conversion time.

Features of Different Cooling Mode for thermal shock chambers

Since the cold chamber need huge cooling capacity for shocking, the chamber’s cooling mode is often

designed as air-cooled or water-cooled.

Air-cooled type need installation environment:

The room must be equipped with exhauster and air conditioner to make sure heat dissipation timely.

It’s applied to small power products and cool areas.

Water-cooled type need installation conditions:

The customer must prepare water pipe and water tower (located outside) accordingly.

The water must be pure, or it will block the pipes and result in some maintenance trouble with time going.

It’s often applied to large system with the features of better heat dissipation, longer service time, low

noise but slightly higher price if count the fee of water tower and water pipes.

Product Specifications

Interior size(W*H*D)mm 1600*1600*1500
Exterior size(W*H*D)mm 3700*4400*5000
Pre-cooling time +20ºC～-55ºC, Within 60 min
Test. chamber -40ºC～+150ºC
High Temp. chamber +60ºC～+200ºC
Pre-heating time +60ºC～+200ºC, Within 20 min
Recovery time High-Temp Exposure 30 min
Low-Temp Exposure 30 min
Recovery time within 5 min
Safety device NFB(No fuse breaker), over pressure, over heat and over current protection for compressor, over temperature protection, over load protection for blower, dry heat protection
Standard accessory Cable port(portΦ50mm)*1, shelves*2
Interior material Stainless steel plate(SUS 304)
Exterior material Baked painting steel or stainless steel(SUS304)
Insulation material Rigid polyurethane Foam + glass fiber wool
Refrigeration system Water Cooled
Semi-hermetic compressor, cascade refrigeration system, CFC free refrigerant(HFC-507 and HFC-23)
Controller Panel:7-inch LCD Touch panel, Chinese or English display selectable
Operation model: Program or fix point running
Memory capacity:120programs,1200steps, all repeat 999cycles,part repeat 99 cycles.
Accuracy:Temp.:0.1% of F.S±1 digit Humidity:0.1% of F.S±1 digit
Input:Temp.:pt-100 Humidity:pt-100 or ～5V DCV
Ambient Temp. +5ºC～+35ºC
Power AC 380±10％ 50Hz ,3 phase 4 wires +Ground Wires
Note:
1. We reserve the right to change specifications without prior notice
2. Customized sizes and configurations available

Product Standards Implement and Met

GB/T 2443.1-2001 Test A: Low temp. Test;

GB/T 2443.2-2001 Test B: Low temp. Test;

GB/T 2443.22-2002 Test N: Low temp. Test;

GJB 150.3-1986 High Temp. Test;

GJB 150.4-1986 Low temp. Test;

GJB 150.5-1986 Temp. Impact Test;

(Load refer to 5.5.5 no active load)

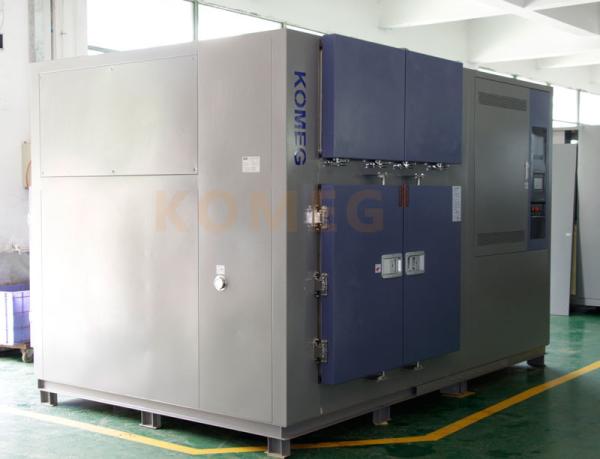

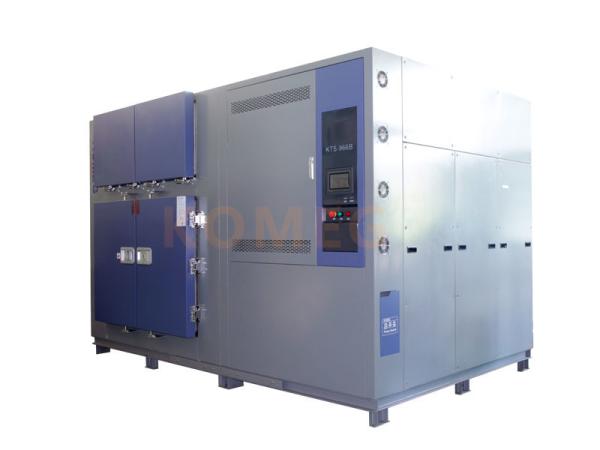

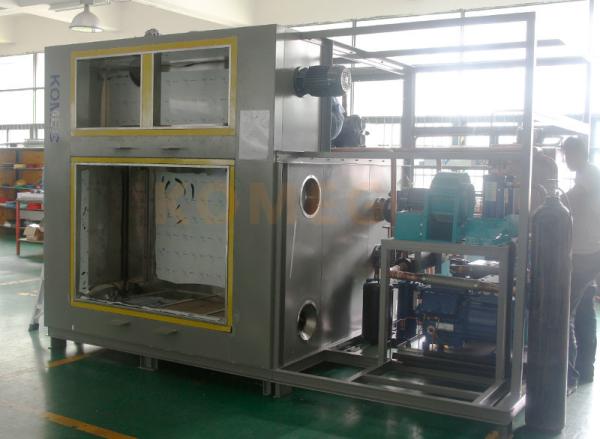

Product details

996 L Water Cooled Thermal Shock Test Chamber , Thermal Shock Test Machine

Product Packaging


Each set protected with resin fiber and PP film, then put into strong wooden

case with operation mannual and video inside.

996 L Water Cooled Thermal Shock Test Chamber , Thermal Shock Test Machine

Product After-sale service

If you face any problems in future during testing process we promise we will

give you a reply within 48 hours and solution provide within 3 working days. We

can offer operation video and English operation muanual. We can provide

video-conference. If customers require on-site service, the transport and travel

expense shall be borne by customer.
