High-low Temperature Thermal Shock Chamber For Battery Home Electronic Appliance
High-low Temperature Thermal Shock Chamber For Battery Home Electronic Appliance
High-low Temperature Thermal Shock Chamber For Battery Home Electronic Appliance
High-low Temperature Thermal Shock Chamber For Battery Home Electronic Appliance
High-low Temperature Thermal Shock Chamber For Battery Home Electronic Appliance
High-low Temperature Thermal Shock Chamber For Battery Home Electronic Appliance
Specifications
Brand Name :
komeg
Model Number :
KTS-100A/B/D
Certification :
CE
Place of Origin :
China
MOQ :
1pcs
Price :
Negotiable
Payment Terms :
Western Union, L/C, T/T
Supply Ability :
100pcs/day
Delivery Time :
35 days after order confirmed
Packaging Details :
foam and wooden box
Interior Material :
stainless steel
Ambient Temp :
+5℃ ～ +35℃
Exterior Material :
baked painting steel
Insulation Material :
Rigid Poly Foam and Glass Fiber Wool
Controllor :
Touch Screen controller
Refrigeration system :
Air Cooled
Description

Description :

High-low Temperature Thermal Shock Chamber For Battery Home Electronic Appliance

ODM and OEM are welcome

Specification:

High Temp chamber +60℃ ～ +200℃
Temp Deviation ≦±2.0℃
Temp Fluctuation ±0.5℃
pre heat time

From +60℃ up to 200℃ within 20 min
pre-cool time

+20℃～ -55℃ within 60min (A style )

From+20℃～ -70℃ within 60min (B style)

From+20℃～ -70℃ within 60min (D style)

Ambient temp

+5℃ ～ +35℃
Inside Dimension

W50XH45XD45cm
Outer Dimension

W151XH198XD202cm
Cable port

Φ50mm*1 located on each side of chamber, with rubber stopper and stainless steel cover

Cooling system

Compressor

German Bock /Bizr hermetic compressor
Refrigerant

Environmental-friendly refrigerant: R404A ,R23 comply with Environmental rules safe and non-toxic
Condenser

Shell and Tube condenser(Water -cooled)
Evaporator

Fin-type multi-stage automatic load capacity adjustment, No frost in long-term use of

low temperature and humidity conditions
Other accessories

Use internationally-known brand, such as high precise expansion valve, oil extractor,

dryer and many other accessories.
Refrigerant flow control Adjust energy consumption output and control automatically to the refrigeration system.
Refrigeration Technology

1.Nitrogen welding, two-stage rotary vane vacuum pump, ensure that the internal

cooling system clean and reliable.

2.water tray located at the bottom of the compressor to ensure condensate water

through pipe freely at the rear of the chamber.
Sensor

High precision DIN class A, dry ball φ4.8mm SUS # 304 PT 100Ω

Application:

1.Temperature Humidity Test chamber are widely used in testing various types of materials for their tolerances of heat, cold, dry and humidity.

2. It is applicable for quality inspection for all types of electronic products, electric appliance, and products from communication ,instruction , automobile, plastic, metal, food, chemical, building materials, medical and aerospace industries.

3. Unique shape with high performance material, whether you’re testing aerospace products, electronic instrumentation, materials, electrical and electronic products and various electronic components, our High low alternating temp. humidity test chamber can give you a perfect solution.


For more detail information ,kindly contact : anna@komegtech.com whats app ,wechat :+86-18029096856

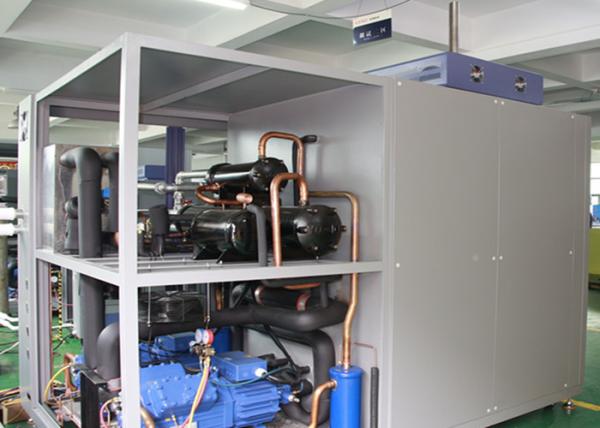

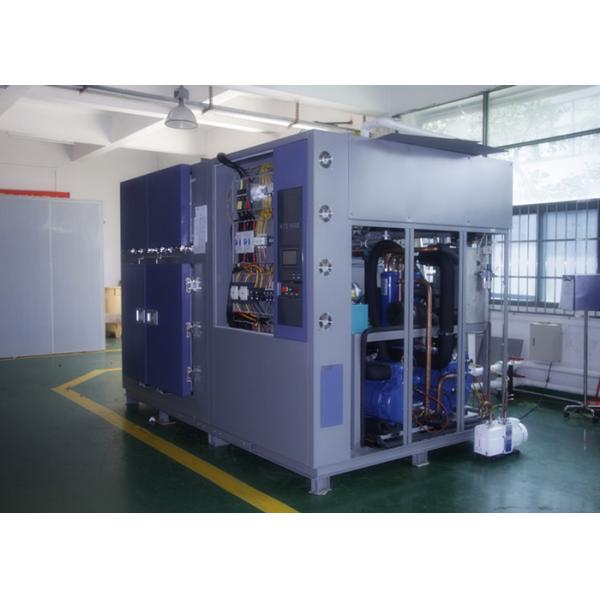

Photos show

High-low Temperature Thermal Shock Chamber For Battery Home Electronic Appliance
