Temperature Altitude Test Chamber Single Door Stainless Steel 576L Temp Range 40℃～+150℃
Temperature Altitude Test Chamber Single Door Stainless Steel 576L Temp Range 40℃～+150℃
Temperature Altitude Test Chamber Single Door Stainless Steel 576L Temp Range 40℃～+150℃
Temperature Altitude Test Chamber Single Door Stainless Steel 576L Temp Range 40℃～+150℃
Temperature Altitude Test Chamber Single Door Stainless Steel 576L Temp Range 40℃～+150℃
Temperature Altitude Test Chamber Single Door Stainless Steel 576L Temp Range 40℃～+150℃
Temperature Altitude Test Chamber Single Door Stainless Steel 576L Temp Range 40℃～+150℃
Temperature Altitude Test Chamber Single Door Stainless Steel 576L Temp Range 40℃～+150℃
Specifications
Brand Name :
KOMEG
Model Number :
KU-576
Certification :
CE/ROHS/FCC/
Place of Origin :
China
MOQ :
1Set
Price :
Negotiation
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
1, 000~1, 500 SETS / YEAR
Delivery Time :
30 days after confirm the order
Packaging Details :
Packed in carton firstly,and then reinforced with wooden case for outer packing
Pressure range :
Constant pressure ～1kPa
nsulation material :
High quality glass wool
Controller :
Touch Screen Controller
Exterior material :
Cold-rolled steel sheet(Rust proof&Plastic Spray treated)/Stainless Steel plate
Interior material :
Stainless steel(SUS304)
Compressor :
Semi-Hermetic Compressor
Description

Temp range:40℃～+150℃ single door stainless steel 576L temperature attitude testing chamber


Applications

High and low temperature low pressure is suitable for the product (machine), spare parts, materials of

high temperature, low temperature, high, high and low temperature cycling test and temperature level

test, high temperature test, the test box can be used to test the heat of test samples and non heat

dissipating specimens. For the test of heat dissipation test sample, the radiating power of the altitude low

pressure test chamber can not exceed that of the test box. Because of the dynamic value of refrigerating

volume, it changes with the change of temperature.

Specifications

Model KU-576
Inner Size (D*W*H)mm 800*700*900
Capacity(KW) 11
Chamber Volume(L) 576
Performance Temp range -40℃～+150℃ -70℃～+150℃
Temp constancy ±0.5％
Temp deviation ≥100℃, ±3.0℃(at constant pressure with empty load)
＜100℃, ±2.0℃(at constant pressure with empty load)
Cooling rate 0.7℃～1.0℃/min(Overall average)
Pressure range Constant pressure ～1kPa
Pressure constancy When ≥40kPa, ±2kPa, 4kPa～40pKa ±0.5kPa, when≤4kPa, ±0.1kPa
Depressurization rate Constant pressure～1kPa≤30mins(Normal temp)
Pressure recovery rate 10kPa/Min(adjustable)
Material Exterior material Cold-rolled steel sheet(Rust proof&Plastic Spray treated)/Stainless Steel plate
Interior material Stainless steel(SUS304)
Pressurized parts High quality steel plate(Rust proof & Plastic spray treated)
Insulation material High quality glass wool
Cooling System Compressor Semi-Hermetic Compressor
Cooling Mode Water cooled
Temp regulating method Balanced Temperature & Humidity Control System (BTHC)
Pump Rotary vane type vacuum pump
Heater Iron-chrome wire heater
Sight window Circular viewing glass incorporating heat generator
Temp Sensor Pt-100
Controller Touch Screen Controller
Safety Devices Over pressure, over heat and over current protection for compressor, over temp. protection, over load protection for blower, Hydraulic and Water lack Protection, leakage protection, phase-lack protection, Pump failure alarm
Standard Accessory Sight window, Cable Port( 1 located on the left side), Baffle, Baffle frame*2
Power AC380V/50Hz, 3Phase 5 wires+ Ground Wire.
Note: 1. We reserve the right to change specifications without prior notice 2. Customized sizes and configurations available


Standards Implement and Met


GB/T10589-1989Technical conditions for low temperature testing room

GB/T10586-1989Technical conditions of hot and humid testing room

GB/T10592-1989Temperature attitude Testing room

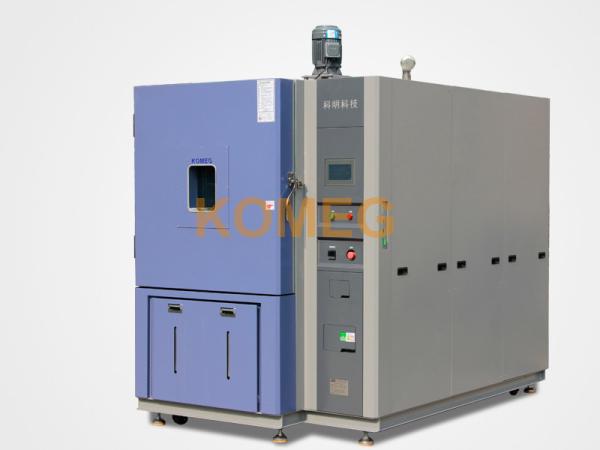

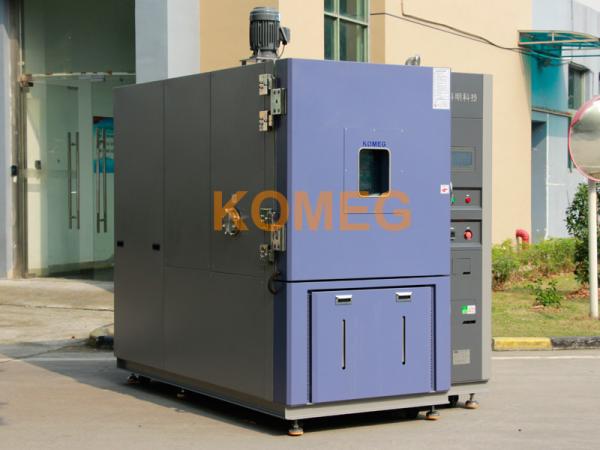

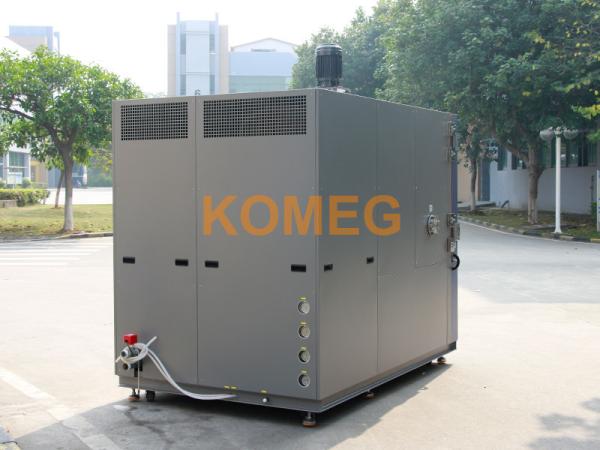

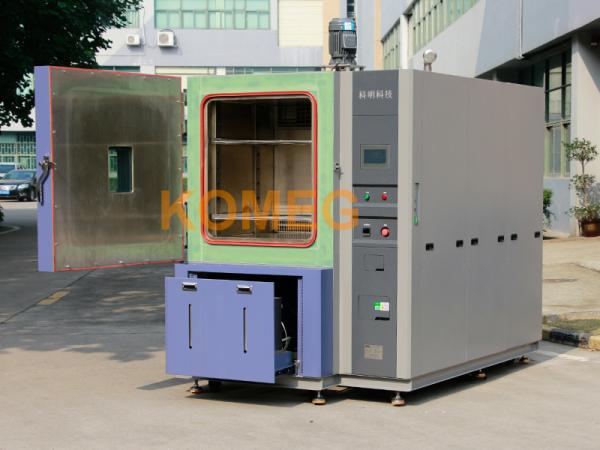

Prouduct Display

Temperature Altitude Test Chamber Single Door Stainless Steel 576L Temp Range 40℃～+150℃

Packing and Shipment:

(1).Strong standard wood case, inner plastic films wrapped for temperature and humidity test chamber
(2).Usually we delivery the equipment by air,by sea or by express. it depends on customer.
Temperature Altitude Test Chamber Single Door Stainless Steel 576L Temp Range 40℃～+150℃
Pre-sales service

1) More than 20 years manufacturer experience and 8 years export experience.
2) Acceptable customization for all kinds of special specification products.
3) We value very inquiry sent to us, ensure quick and competitive offer.
4) We put your order into our tight production schedule,ensure your punctual delivery time.
5) We are a sales team, with more than 4 years experience, more professional and reliable.
6) Welcome to view our factory at any moment .
After-sales service

1) We deal with your complains within 24 hours.
2) Training how to install the machine, training how to use the machine.
3) Engineers available to service machinery overseas.
4) All staffs in our company with philosophy of " integrity, dedication, truth-seeking, enterprise", would be
dedicated to provide high quality service and products for you.
