Temperature Rapid Change Test Machine Water Cooled 225L 5 ºC /Min
Temperature Rapid Change Test Machine Water Cooled 225L 5 ºC /Min
Specifications
Brand Name :
KOMEG
Model Number :
ESS-225SL5
Certification :
CE/ROHS/FCC
Place of Origin :
China
MOQ :
1 SET
Payment Terms :
L/C, T/T
Delivery Time :
35 WORKING DAYS
Packaging Details :
Strong Plywood Case
Internal Volume :
225L
Temp. Rate Of Change :
5 ºC /Min
Temperature Range :
-70 ºC～+100 ºC( Rapid Temp Change -40 ºC～+85 ºC Full Linear Control)
Cooling Mode :
Water Cooled
Temp Constancy :
±3.0 ºC
Ambient Temp. :
+5ºC~+35ºC
Description

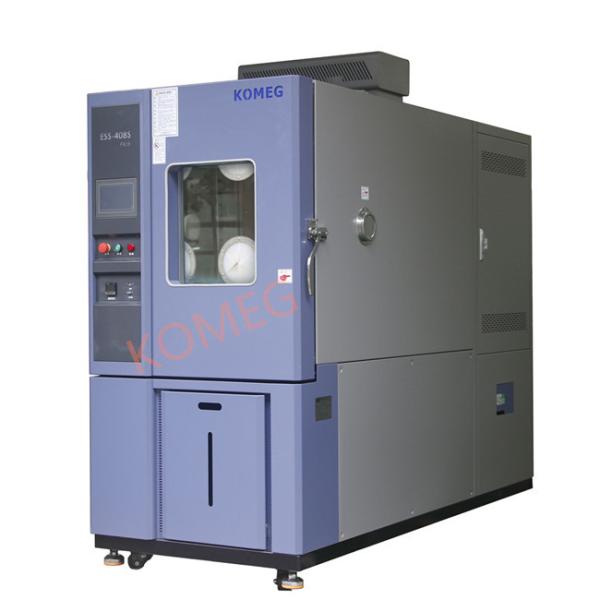

Thermal Cycling Chamber Temperature Rapid Change Test Machine

Temperature Rapid Change Test Machine Water Cooled 225L 5 ºC /Min

This equipment is widely applied for electronic and electric products, components and materials by constant high low temperature, temperature change , rapid rate temperature change ,damp heat etc environmental simulation reliability test .

ESS Chamber Standard Compliance

1. ESS Chamber Manufacturing standard :

GB/T10586-2006 Specifications for damp heat chambers

GB/T10592-1989 Specification for low/high temperature test chambers

2. ESS Chamber Inspection Standard :

GB/T5170.2-1996 Inspection methods for basic parameters of environmental testing equipments for electric and electronic products. Temperature testing equipments;

GB/T5170.5-1996 Inspection on methods for basic parameters of environmental testing equipments for electric and electronic products--Damp heat testing equipments

3. ESS Chamber Testing Standard Compliance :

GB/T5170.2-2008 Inspection methods for environmental testing equipments for electric and electronic products-Temperature testing equipments

GB/T2423.1-2008(IEC60068-2-1:2007)Environmental testing - Part 2: Test methods - Tests A: Cold

GB/T2423.2-2008(IEC60068-2-2:2007)Environmental testing for electric and electronic products Test methods - Tests B:Dry Heat

GB/T2423.22 Environmental testing for electric and electronic products-Part 2:Test methods-Test N:Change of temperature

IEC 60068-2-14 2009 Environmental testing -- Part 2-14: Tests -- Test N: Change of temperature

GB/T5170.2-2008 Inspection methods for environmental testing equipments for electric and electronic products-Temperature testing equipments

Temperature Rapid Change Test Machine Water Cooled 225L 5 ºC /Min

Main Features:

Temperature Rapid Change Test Machine Water Cooled 225L 5 ºC /Min

Temperature Rapid Change Test Machine Water Cooled 225L 5 ºC /Min

Other Features:

Rational Construction and fast cooling rate
Frequency conversion control of wind speed.

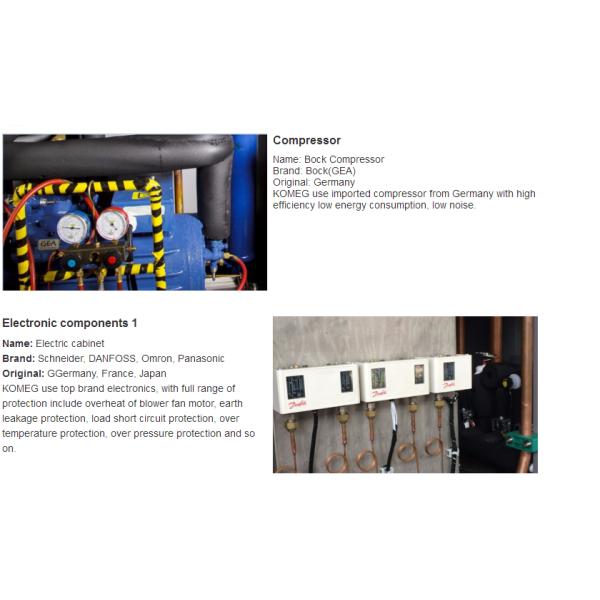

Adopts international brand of imported parts for cooling system to improve operation reliability

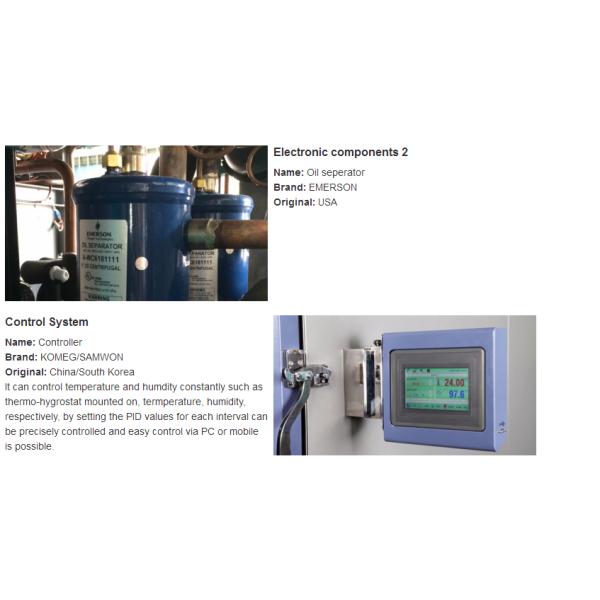

Touch screen controller, friendly Man-Machine interface and safety device to ensure simple operation and easy maintenance.

Temperature Rapid Change Test Machine Water Cooled 225L 5 ºC /Min

Model ESS-SL
225SL5
Working Chamber Volume(L) 225L
Temp Rate of Change( ºC /Min) 5 ºC /Min
Temperature Range -70 ºC～+100 ºC( Rapid Temp Change -55 ºC～+85 ºC Full Linear Control)
Humidity Constancy ±0.5 ºC
Temp Constancy ±3.0 ºC
Exterior Material Cold-rolled steel sheet (Rust proof & Plastic Spray treated )/ Stainless Steel
Interior Material Stainless Steel Plate(SUS 304)
Insulation Material Rigid Polyurethane Foam
Safety Devices over pressure,over heat and over current protection for compressor, over temp. protection,
Compressor Semi-Hermetic Compressor
Cooling Mode Water Cooled
Control system Balanced Temperature & Humidity Control System(BTC type)
Heater Iron-chrome wire heater
Blower Centrifugal Blower
Observation Window Glass incorporating heat generator
Temp Sensor Pt-100
Controller Touch screen programmable controller
Ambient Temp. +5ºC~+35ºC
Power AC 380V/50Hz 3phase 5 wires+ Ground wire
Note: 1. We reserve the right to change specifications without prior notice 2. Customized sizes and configurations available

Temperature Rapid Change Test Machine Water Cooled 225L 5 ºC /Min

Temperature Rapid Change Test Machine Water Cooled 225L 5 ºC /Min
