Specifications
Brand Name :
KOMEG
Model Number :
ESS-225SL5
Certification :
CE, , ISO
Place of Origin :
China
MOQ :
1SET
Price :
negotiation
Payment Terms :
T/T, negotiable
Supply Ability :
1, 000 SETS / YEAR
Delivery Time :
50 days upon your deposit
Packaging Details :
Strong Plywood Case
Product Name :
Repid Temp Change chamber
Application :
reliability testing, research & development testing, failure analysis
Working Chamber Volume (L) :
225L
Power Source :
AC380V
Cooling Mode :
Water Cooled
Temp. Rate of Change ºC /Min :
5 ºC /Min
Description

Good Stability High Performance 5 ºC /Min 225L Rapid-Rate Thermal Cycling Chamber

1. Overview of Environmental Test Chamber:

An environmental chamber, also called climatic chamber or climate chamber, is an enclosure used to test the effects of specified environmental conditions on biological items, industrial products, materials, and electronic devices and components.

Such a chamber can be used:

1) as a stand-alone test for environmental effects on test specimens

2) as preparation of test specimens for further physical tests or chemical tests

3) as environmental conditions for conducting testing of specimens

4) Temperature adaptability test under the condition of rapid change, or gradient for electrical, electronic, instruments and other products or spare parts, particularly applies to environmental stress screening test(ESS)

2. Advantages:

Rational Construction and fast cooling rate

Frequency conversion control of wind speed.

Adopts international brand of imported parts for cooling system to improve operation reliability

Touch screen controller, friendly Man-Machine interface and safety device to ensure simple operation and easy maintenance.

3. Standards Implemented and Met

GB10592-89 Technical requirements for high and low temperature test chamber

GB2423.1-1989 Low temperature test

GB2423.2-1989 High temperature test mode

3. Material:

Interior material: Stainless Steel Plate SUS304#

Exterior material: Baked Painting Steel Plate or Stainless Steel SUS304#

Insulation material: Rigid polyurethane Foam and Glass Fiber Wool

Standrad Accessories:

Sight window *1 (Adiabatic glass window)

cable port(diameter 50mm)*2,

Samples shelves *2 sets

Chamber lamp *1

Power cable: 2 meters long

4. Specifications

Model

ESS-SL

225SL5

Working Chamber Volume(L)

225L

Temp Rate of Change( ºC /Min)

5 ºC /Min

Temperature Range

-70 ºC～+100 ºC( Rapid Temp Change -55 ºC～+85 ºC Full Linear Control)

Humidity Constancy

±0.5 ºC

Temp Constancy

±3.0 ºC

Exterior Material

Cold-rolled steel sheet (Rust proof & Plastic Spray treated )/ Stainless Steel

Interior Material

Stainless Steel Plate(SUS 304)

Insulation Material

Rigid Polyurethane Foam

Safety Devices

over pressure,over heat and over current protection for compressor, over temp. protection,

Compressor

Semi-Hermetic Compressor

Cooling Mode

Water Cooled

Control system

Balanced Temperature & Humidity Control System(BTC type)

Heater

Iron-chrome wire heater

Blower

Centrifugal Blower

Observation Window

Glass incorporating heat generator

Temp Sensor

Pt-100

Controller

Touch screen programmable controller

Ambient Temp.

+5ºC~+35ºC

Power

AC 380V/50Hz 3phase 5 wires+ Ground wire

Note: 1. We reserve the right to change specifications without prior notice 2. Customized sizes and configurations available

5. Controller:

7 inch Digital Touch Screen

127 program, running for extremely long time 999 hours per segment, maximum 3200 times circulation

support RS485,LAN (internet access), GPRS (mobile phone) etc. communication mode. Convenient for remote monitoring and data sampling.

6. About KOMEG Factory

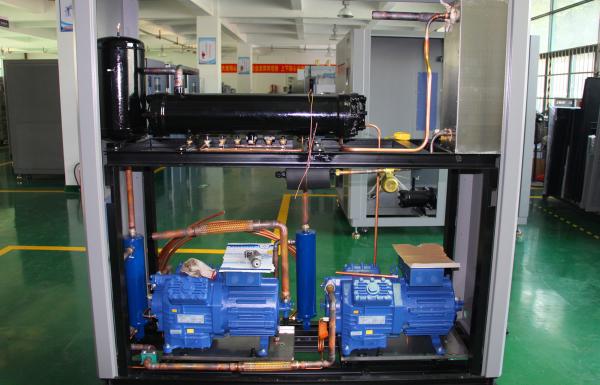

Debugging Area:

Low temperature Stability Rapid Rate Thermal Cycling Chamber 225L GB2423.1-1989

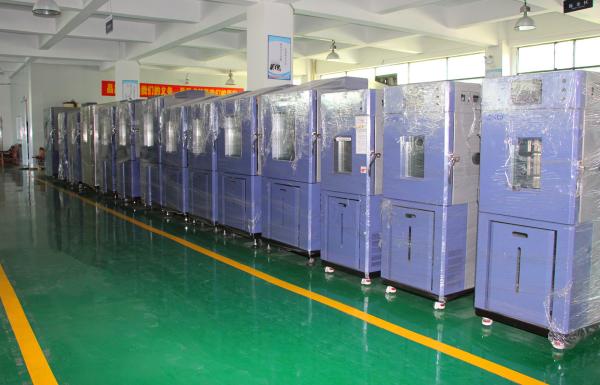

Finished Products Area:

Low temperature Stability Rapid Rate Thermal Cycling Chamber 225L GB2423.1-1989
