Specifications
Brand Name :
Jinzhenboiler
Model Number :
2×28
Certification :
CE
Place of Origin :
China
MOQ :
1 set
Price :
USD 9000-10000 set
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
100 set per month
Delivery Time :
30 days
Packaging Details :
wooden package
product :
AAC Autoclave
Designed pressure :
1.1Mpa-1.4Mpa
Designed temperature :
187℃-198℃
Working medium :
Saturation steam
Steam :
Provide by boiler
Width :
2619mm-3254mm
Total length :
22650mm-33560mm
Height :
2695mm-4117mm
Automatic/manual :
Optional
Type :
AAC Brick making machine
Processing :
Brick Production Line
Brick Raw Material :
CONCRETE
Applicable Industries :
AAC brick Manufacturing Plant, aac brick factory
Method :
Autoclaved Aerated Concrete
Brick size :
400*100*200 mm
Description

Professional custom-made steam autoclave reactor for AC fly ash / sand block production line

Design Pressure :1.0-3.8 Mpa
Design Temperature :187-225°C
Length :According to the customers demands
Application : AAC Plant (Autoclaved Aerated Concrete Plant)
Brief Intro :AAC autoclave is large pressure vessel for steam curing, has excellent thermal insulating quality. It has the advantages of good treat efficiency, large capacity, reasonable layout, and safety & convenient operation, etc.

Autoclave for AAC plant is large pressure vessel for steam curing, has excellent thermal insulating quality, and it supporting the use of steam boilers. The autoclave is a horizontal cylinder device, when curing the aerated concrete, there is hydrothermal reaction (CaO-SiO2-H2O) happened in autoclave. It has the advantages of wide applicability, good treat efficiency, large capacity, reasonable layout, and safety operation, etc. Jinzhen Boiler could design and manufacture various forms of autoclave according to customers’ requirements.

Except AAC plant, the autoclave could also be used for wood preservation, maintenance and steaming of lime-sand brick, fly-ash brick, new light wall material, concrete tubular pile and other building products, moreover, it can used for the products steaming in chemical industry, medicine, rubber, wood corrosion prevention, gypsum, glass, thermal insulation materials, textile, war industry and other area.

AAC Autoclave Advantages

1. High quality materials

The autoclave cover uses monoblock Q345R steel plate for compression moulding, and the flange of autoclave cover and body use Q345R steel plate for integral forgoing, to ensure the high quality.

2. Advanced processing technology

Double-side automatic submerged arc welding are used for the weld joint of autoclave cover head and flange, and then heat treatment and strict nondestructive testing are processed for all weld joint of pressure parts, eliminate forging stress and welding stress.

3. Special and convenient structure

There are two open types, and the door could be designed as manual operated or automatic operated.

1) Side open type using the rotating arm type door - opening structure. Flexible rotation, low post operation, simple and convenient opening.

2) Upper open type door using the lever type door-opening structure, lower leverage connect with kettle door, the top part equipped with counterweight device, open portable and occupies small space.

4. Safe operation

Equipped with sophisticated safe interlock protection device, utmost avoid the potential wrong operation, to ensure the safe operation.

5. Boiler customization

Jinzhen boiler could customize the autoclave based on the requested length, width, or pressure.

Autoclave technical specifications sheet
Model FGZCS1.0-1.65×21 FGZCS1.3-2×21 FGZCS1.3-2×27 FGZCS1.3-2×31 FGZCS1.3-2.5×27 FGZCS1.3-2×31
Internal diameter(m) 1.65 2 2 2 2.5 2.5
Effective length(m) 21 21 27 31 27 31
Max working temperature(°C) 184 194 194 194 194 194
Max working pressure(Mpa) 1 1.3 1.3 1.3 1.3 1.3
Designed pressure(Mpa) 1.1 1.4 1.4 1.4 1.4 1.4
Designed temperature(°C) 187 198 198 198 198 198
Working medium Saturation steam
Total length(mm) 22650 23300 29300 33300 29560 33560
Wide(mm) 2691 2980 2980 2980 3254 3254
Height(mm) 2695 3340 3340 3340 4117 4117

Usage
1, chemical industry - lipidic chemical industry, reaction jug, polymerization, distillation, enrichment.
2, plastic industry - plastic firing, extrusion stereotypes.
3, textile industry - resin stenters, dyeing machine and dry room, high temperature machine

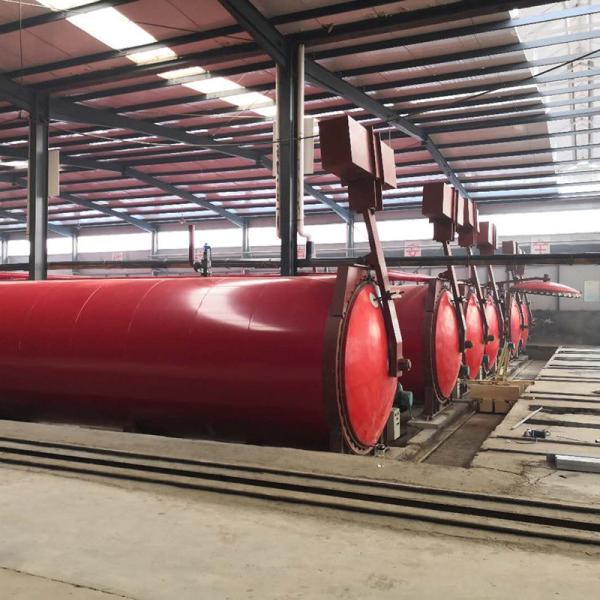

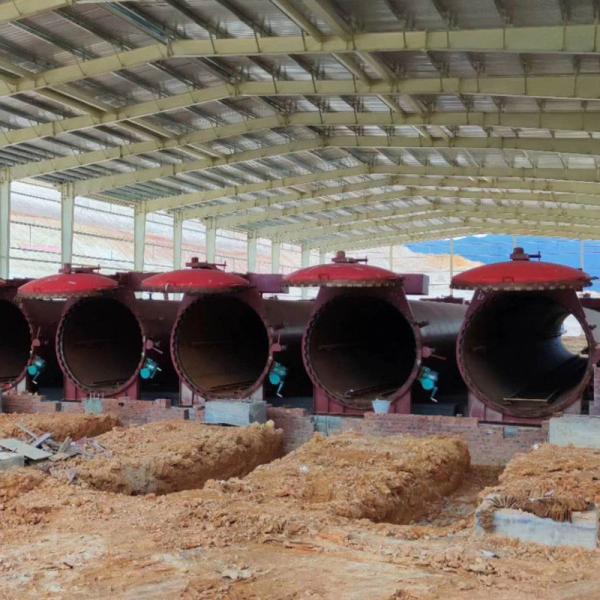

Autoclave picture

Professional Custom-Made Steam Autoclave Reactor For AC Fly Ash / Sand Block Production LineProfessional Custom-Made Steam Autoclave Reactor For AC Fly Ash / Sand Block Production Line

Professional Custom-Made Steam Autoclave Reactor For AC Fly Ash / Sand Block Production LineProfessional Custom-Made Steam Autoclave Reactor For AC Fly Ash / Sand Block Production LineProfessional Custom-Made Steam Autoclave Reactor For AC Fly Ash / Sand Block Production Line

Professional Custom-Made Steam Autoclave Reactor For AC Fly Ash / Sand Block Production Line
