Design Pressure :1.0-3.8 Mpa
Design Temperature :187-225°C
Length :According to the customers demands
Application : AAC Plant (Autoclaved Aerated Concrete Plant)
Brief Intro :AAC autoclave is large pressure vessel for steam curing, has excellent thermal insulating quality. It has the advantages of good treat efficiency, large capacity, reasonable layout, and safety & convenient operation, etc.

AAC Autoclave is a large pressure vessels used for steaming aerated concrete, sand-lime, fly ash brick or standard brick, the autoclave complete the hydrothermal reaction of CaO-SIO2-H2O.it is also widely used for other required pressure steam curing of the production project. Such as high-strength gypsum, insulation materials, rubber, high-strength glass, cement, pipe piles and timber, pharmaceutical, chemical and other industries. According to user requirements, our company can also design and manufacture of various forms of autoclave in order to meet the needs of the user a variety of purposes.

1. This machine is horizontally set, the cover is made of a 16mnr steel plate, the flanges used in the cover and body of the machine is forged from a 16mnr steel bar.

2. Strictly non-destructive Testing and heat treatment should be performed to the welding lines in the pressure sustaining parts according to relevant specifications.

3. As for the length of autoclave body, gauge size inside the autoclave, open form of the autoclave door, it can be made according to the customer's requirement.

Jinzhen boiler could customize the autoclave based on the requested length, width, or pressure.

1.Autoclavedoor seal uses professional manufacturers of imported rubber sealing ring, easy installation, good sealing, long service life.

2.Autoclave body bearing aimed at different position, Settings are fixed supprort, activities bearing, special bearings at the end of the three forms. Better meet the kettle body heat bilges cold shrink, guarantee the autoclaved autoclave normal work and service life.

1.Autoclavedoor seal uses professional manufacturers of imported rubber sealing ring, easy installation, good sealing, long service life.

2.Autoclave body bearing aimed at different position, Settings are fixed supprort, activities bearing, special bearings at the end of the three forms. Better meet the kettle body heat bilges cold shrink, guarantee the autoclaved autoclave normal work and service life.

Autoclave Kettle belongs large pressure vessel equipment, used for maintenance and steaming of lime-sand brick, fly-ash brick, aerated concrete blocks, new light wall material, and concrete tubular pile and other building products, presently, autoclave not only used in silicate building products, it was also used for the products steaming in chemical industry, medicine, rubber, wood, gypsum, glass, thermal insulation materials, textile, war industry and other areas.

Usage
1, chemical industry - lipidic chemical industry, reaction jug, polymerization, distillation, enrichment.
2, plastic industry - plastic firing, extrusion stereotypes.
3, textile industry - resin stenters, dyeing machine and dry room, high temperature machine

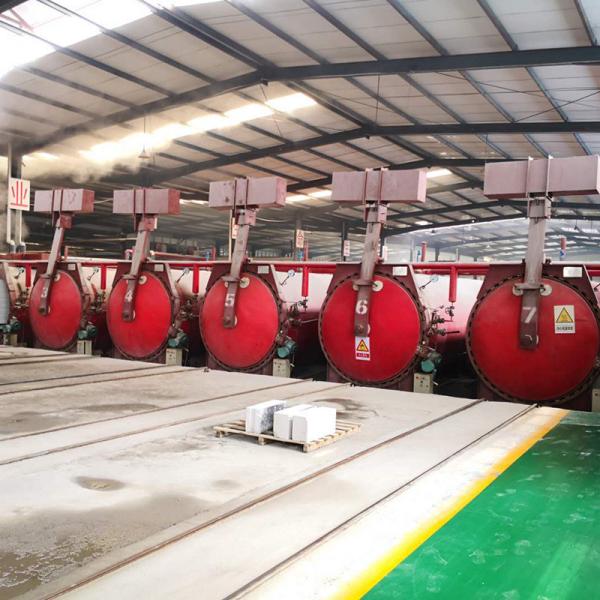

Autoclave picture
