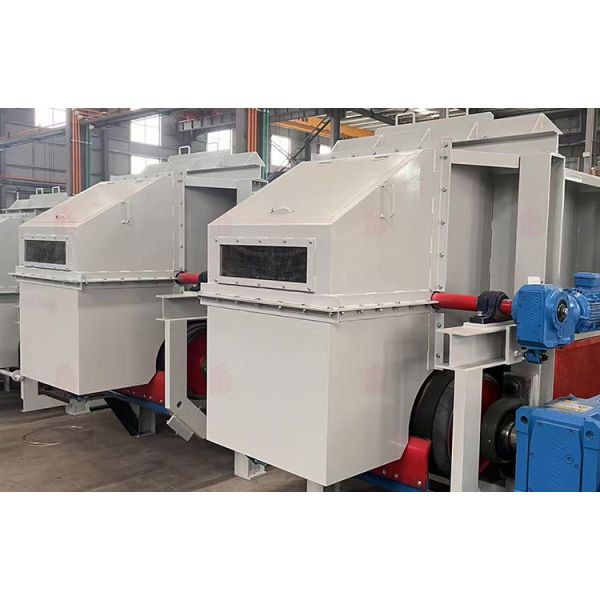

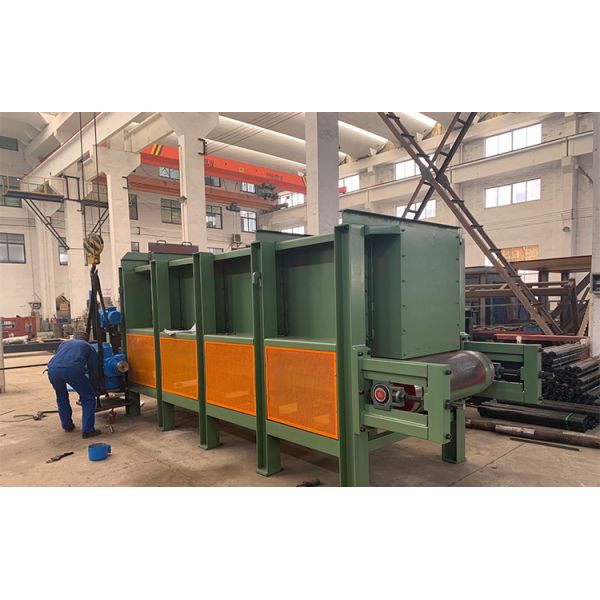

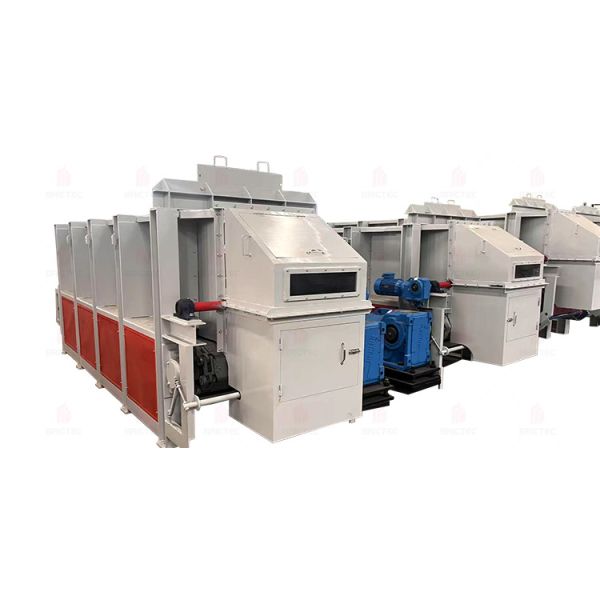

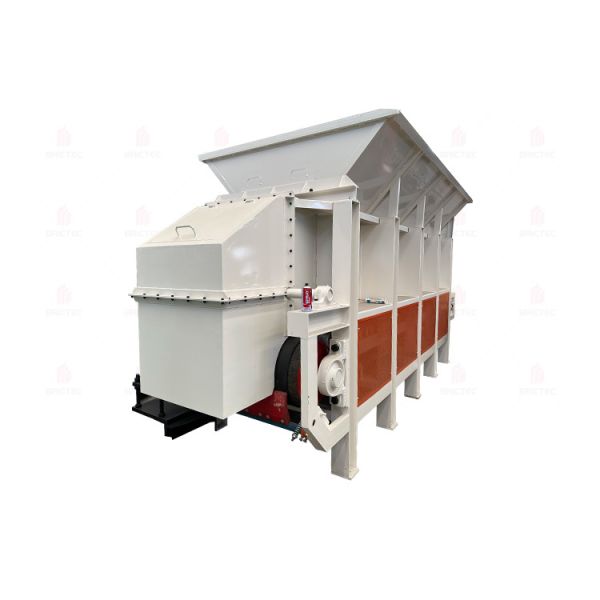

Enclosed Design Belt-Type Box Feeder with Adjustable Speed Belt for Clay Brick Production
Enclosed Design Belt-Type Box Feeder with Adjustable Speed Belt for Clay Brick Production
Enclosed Design Belt-Type Box Feeder with Adjustable Speed Belt for Clay Brick Production
Enclosed Design Belt-Type Box Feeder with Adjustable Speed Belt for Clay Brick Production
Enclosed Design Belt-Type Box Feeder with Adjustable Speed Belt for Clay Brick Production
Enclosed Design Belt-Type Box Feeder with Adjustable Speed Belt for Clay Brick Production
Enclosed Design Belt-Type Box Feeder with Adjustable Speed Belt for Clay Brick Production
Enclosed Design Belt-Type Box Feeder with Adjustable Speed Belt for Clay Brick Production
Enclosed Design Belt-Type Box Feeder with Adjustable Speed Belt for Clay Brick Production
Enclosed Design Belt-Type Box Feeder with Adjustable Speed Belt for Clay Brick Production
Enclosed Design Belt-Type Box Feeder with Adjustable Speed Belt for Clay Brick Production
Enclosed Design Belt-Type Box Feeder with Adjustable Speed Belt for Clay Brick Production
Specifications
Brand Name :
Brictec
Model Number :
XGD-60/450; XGD-80/450; XGD-100/450
Certification :
CE; ISO
Place of Origin :
China
MOQ :
1 set
Price :
US$20500
Payment Terms :
L/C,D/A,D/P,T/T,Western Union,MoneyGram
Delivery Time :
40 days
Description

Equipment Introduction:

The Belt-Type Box Feeder is an automated feeding system for clay brick production lines. It features an enclosed box structure with an internal belt conveyor, designed to uniformly and continuously supply raw materials (e.g., clay, coal gangue) to downstream processes (e.g., crushers or mixers).

Enclosed Design Belt-Type Box Feeder with Adjustable Speed Belt for Clay Brick Production

Technical Data:

Model

Capacity(m³/h)

Input size(mm)

Discharge port adjustment range(mm)

Dimension(mm)

Weight(t)

Power(kW)

XGD-60/450

20-30

<200

<50

4850*1900*2200

3.5

1.5+1.5

XGD-80/450

30-50

<200

<50

5000*2100*2200

4.5

3.0+2.2

XGD-100/450

40-80

<200

<50

6000*2100*2200

6.5

5.5+2.2


Enclosed Design Belt-Type Box Feeder with Adjustable Speed Belt for Clay Brick Production

Features:

Enclosed Design: Dust-proof and leak-proof, minimizing material loss.

Adjustable Speed Belt: Feed rate controlled by frequency converter for precise production matching.

Wear-Resistant Construction: High-durability materials for abrasive clay/raw materials.

Modular Installation: Easily integrated into existing production lines.

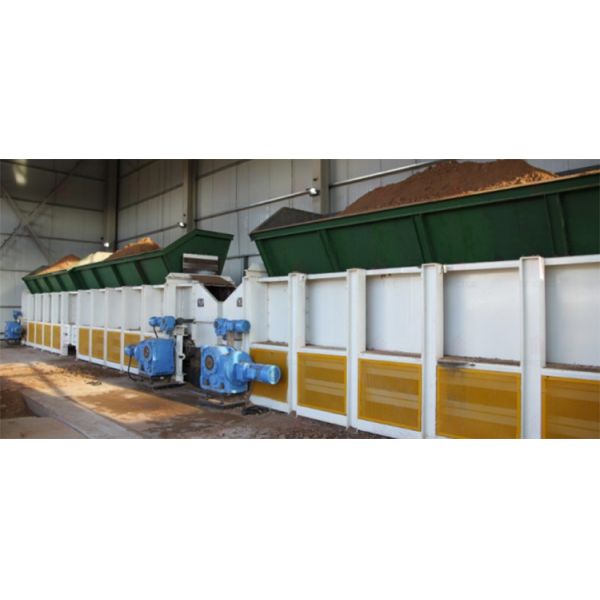

In clay brick manufacturing, it ensures stable and metered material transfer to shaping or kiln sections, maintaining production continuity and process consistency.

Enclosed Design Belt-Type Box Feeder with Adjustable Speed Belt for Clay Brick Production

Advantages:

1. Quieter and more energy-efficient than traditional vibratory feeders.
2. Eco-friendly enclosed design complies with environmental regulations.
3. Low maintenance with easy belt replacement.

Enclosed Design Belt-Type Box Feeder with Adjustable Speed Belt for Clay Brick Production

Optional smart control systems (e.g., PLC integration) for automation.

Standard belt widths: 500–1200mm; capacity: 10–50 tons/hour.

Key Technical Terms:

Belt-Type Box Feeder/Enclosed Belt Feeder

Variable Frequency Drive (VFD) Control

Abrasion-Resistant Conveyor Belt

Dust-Proof Design
