Precision Flat End Swivel Shoulder Screw for CNC Fixture Workholding Solutions
Precision Flat End Swivel Shoulder Screw for CNC Fixture Workholding Solutions
Specifications
Brand Name :
ADJIG
Model Number :
PT16B-2435
Place of Origin :
Chongqing, China
MOQ :
5
Price :
15 USD per item
Payment Terms :
L/C,T/T
Supply Ability :
Less than 30 pieces, shipped within 5-7 days. More than 30 items will be shipped within 15-20 days.
Delivery Time :
7-10 days
Packaging Details :
Carton/wooden crate
Material :
SCM435 ball SUJ2
Heat treatment :
HRC 28°~32° ball HRC 62°
Description

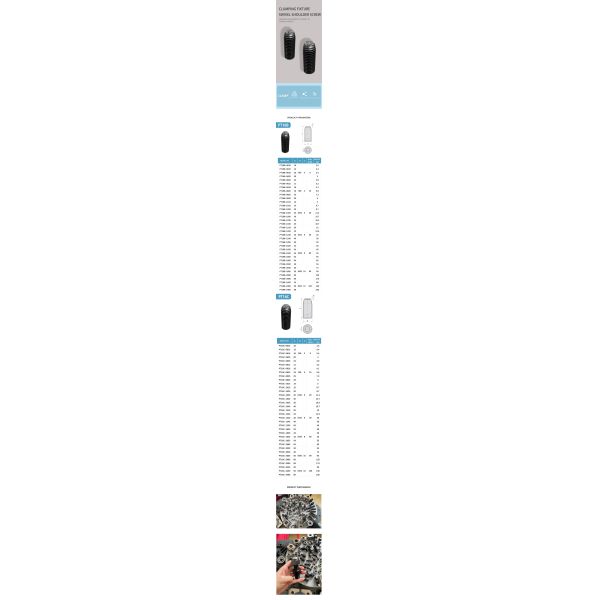

Precision Flat End Swivel Shoulder Screw for CNC Fixture Workholding Solutions


FLAT END


Material: Bolt: SCM435(JIS) / 34CrMo4(DIN)


Ball: SUJ2(JIS) / 100Cr6(DIN)


Heat treated: Bolt: HRC 28°~32°


Ball: HRC 62°


Surface finish: Black Oxide.


Engineered for superior performance in demanding CNC environments, this Precision Flat End Swivel Shoulder Screw delivers reliable, long-lasting functionality. The hardened shoulder provides a perfect pivot point, ensuring smooth rotation and minimal wear in jigs, fixtures, and clamping systems. Its precision-machined flat end guarantees positive seating and consistent height, eliminating tilt and maintaining alignment under load. This critical component is indispensable for creating robust, repeatable workholding solutions, reducing setup time, and enhancing machining accuracy. A vital upgrade for any high-performance machining setup seeking to maximize efficiency and tool life.
















Model No A B C D Weight(kg)
PT16B-610 10 M6 3 9 1.5
PT16B-615 13 2.4
PT16B-616 16 2.4
PT16B-620 20 3
PT16B-625 23 3.8
PT16B-812 11 M8 4 15 3.2
PT16B-816 16 4.1
PT16B-820 19 5.8
PT16B-825 25 7.3
PT16B-830 29 9
PT16B-1014 14 M10 5 20 5
PT16B-1015 15 6.7
PT16B-1020 20 8.7
PT16B-1025 25 11.2
PT16B-1030 30 13.7
PT16B-1035 35 16.2
PT16B-1040 40 18.7
PT16B-1218 20 M12 6 30 10
PT16B-1220 22 12.5
PT16B-1230 30 20
PT16B-1240 40 30
PT16B-1250 50 40
PT16B-1625 24 M16 8 60 28
PT16B-1635 34 40
PT16B-1645 44 45
PT16B-1655 54 55
PT16B-1665 64 65
PT16B-2030 30 M20 10 90 54
PT16B-2040 40 74
PT16B-2050 50 94
PT16B-2060 60 120
PT16B-2090 90 170
PT16B-2435 35 M24 12 120 90
PT16B-2450 50 130
PT16B-2480 80 235
