Ball End Thrust Screw Head Flattened Serrated Smooth Ball End Bolt PT01
Ball End Thrust Screw Head Flattened Serrated Smooth Ball End Bolt PT01
Ball End Thrust Screw Head Flattened Serrated Smooth Ball End Bolt PT01
Ball End Thrust Screw Head Flattened Serrated Smooth Ball End Bolt PT01
Specifications
Brand Name :
ADJIG
Model Number :
PT01
Place of Origin :
Chongqing, China
MOQ :
5
Price :
10-13 USD per item
Supply Ability :
Less than 30 pieces, shipped within 5-7 days. More than 30 items will be shipped within 25-30 days.
Delivery Time :
7-10 days
Packaging Details :
Carton/wooden crate
Payment Terms :
T/T,L/C
Body material and heat treatment :
S45C ；HRC28°~32°
Steel ball material and heat treatment :
SUJ12 ；HRC62°
Material :
Steel
Size :
Various sizes available
Application :
Clamping and support
Adjustability :
Adjustable for different clamp sizes
Compatibility :
Fits most standard clamps
Features :
Even clamping pressure on sloped or uneven surfaces
Installation Method :
Screw-in
Type :
Fixture standard parts
Description

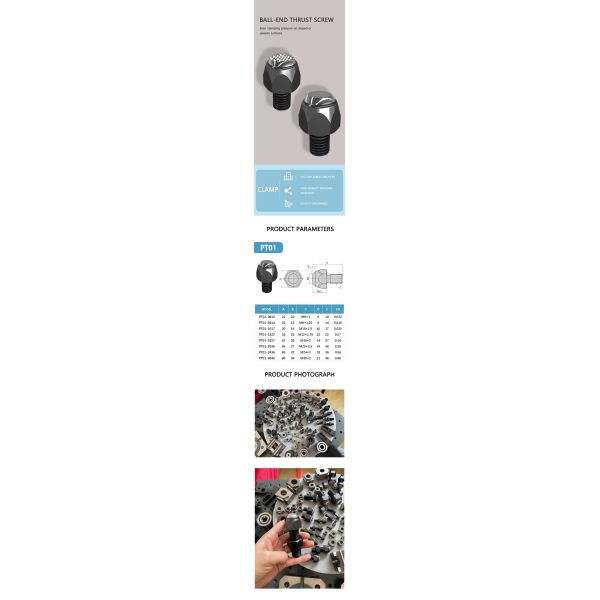

Ball-end Thrust Screw With Head Flattened Serrated Smooth Ball End Bolt PT01

Material: S45C body, steel ball SUJ2.


Heat treatment:body HRC 28 °~32 °, steel ball HRC 62 °.


Surface treatment: Blackening treatment.


Characteristic:Even clamping pressure on sloped or uneven surfaces.

brief introduction:Smooth Ball End Bolt PT01 Precision swivel ball that can be used either as a contact bolt or as a rest pad.

As contact bolts, these swivel-ball units are ideal for evenly distributing clamping pressure on sloped or uneven surfaces.

Model A B C D E KG
PT01-0610 21 10 M6×1 6 10 0.012
PT01-0814 25 12 M8×1.25 8 14 0.015
PT01-1017 30 16 M10×1.5 10 17 0.025
PT01-1222 35 22 M12×1.75 12 22 0.07
PT01-1627 42 26 M16×2 14 27 0.14
PT01-2036 55 27 M20×2.5 14 36 0.28
PT01-2436 65 32 M24×2 18 36 0.56
PT01-3046 80 35 M30×2 21 46 0.88

Ball End Thrust Screw Head Flattened Serrated Smooth Ball End Bolt PT01
