Modular Internal Bore Pneumatic Id Expansion Clamp For ID Workholding
Modular Internal Bore Pneumatic Id Expansion Clamp For ID Workholding
Specifications
Brand Name :
ADJIG
Model Number :
CLP
Place of Origin :
Chongqing, China
MOQ :
1
Price :
41 - 414 USD per item
Payment Terms :
L/C,T/T
Supply Ability :
Less than 10 pieces, shipped within 10 days. More than 10 items will be shipped within 30 days.
Delivery Time :
7-10 days
Packaging Details :
Carton/wooden crate
Material :
Spring steel
Expand itinerary :
0.3-0.5mm
Repeatability :
＜0.01mm
Installation method :
Bolt fixing
Description

Modular Internal Bore Expansion Clamp for ID Workholding CNC Machining Fixtures

Product Features:

Main Material: Spring steel, low-position clamping, suitable for use on milling machines,

ideal for flat-plate fixture assemblies, easily reworked to suit lathes or for secondary

processing on lathes, allowing more workpieces to be placed on each base or fixture plate,

secured with a hex wrench or hydraulic cylinder (requires drilling a through hole to connect longer bolts to the hydraulic cylinder).

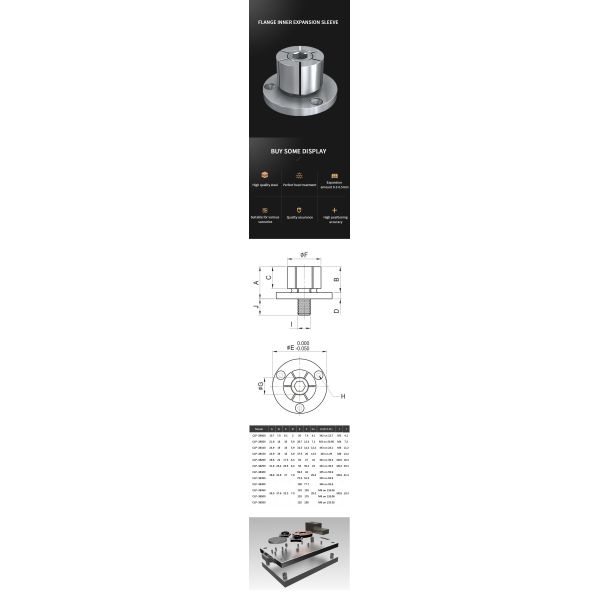

Part Number Tapered screw code A B C D E F G+ H×(P.C.D.) I J
CLP-38000 #00 10.7 7.6 6.1 3 20 7.4 4.1 M2 on 13.7 M2 4.1
CLP-38050 #0 21.8 16 15 5.9 29.72 12.4 7.1 M3 on 20.95 M4 7.2
CLP-38100 #1 24.9 19 15 5.9 31.5 14.2 12.2 M3 on 23.1 M6 11.2
CLP-38150 #2 24.9 19 15 5.9 37.5 20 13.5 M3 on 29 M8 13.2
CLP-38200 #3 28.6 22.2 17.5 6.4 50 27 18 M4 on 39.4 M10 16.3
CLP-38250 #4 31.8 25.4 20.6 6.4 56 35.3 23 M4 on 45.5 M12 20.3
CLP-38300 #5 39.6 31.8 27 7.9 69.5 42 29.3 M5 on 55.9 M16 21.4
CLP-38350 #6 75.5 51.5 M5 on 63.9
CLP-38400 #7 45.5 37.6 32.3 7.9 107.5 77.7 29.3 M6 on 92.6 M16 19.3
CLP-38450 #8 132.9 103 M6 on 118.06
CLP-38500 #9 132.9 175 M6 on 118.06
CLP-38550 #10 152.4 250.2 M6 on 133.35
