Technical Characteristics | ||||||
Endurance(shell) | 5000 mating cycles | Humidity | up to 95% at 60° C/140F | |||
Temperature Range | - 65° C, +200° C | Resistance to vibrations | 15 g [10 Hz - 2000 Hz] | |||
Shock Resistance | 100 g [ 6 ms] | Salt spray corrosion test | >96 hr | |||
Climatical Category | 50/175/21 | Shielding (min) | > 75 dB [ at 10 MHz], > 40 dB [ at 1 GHz] | |||

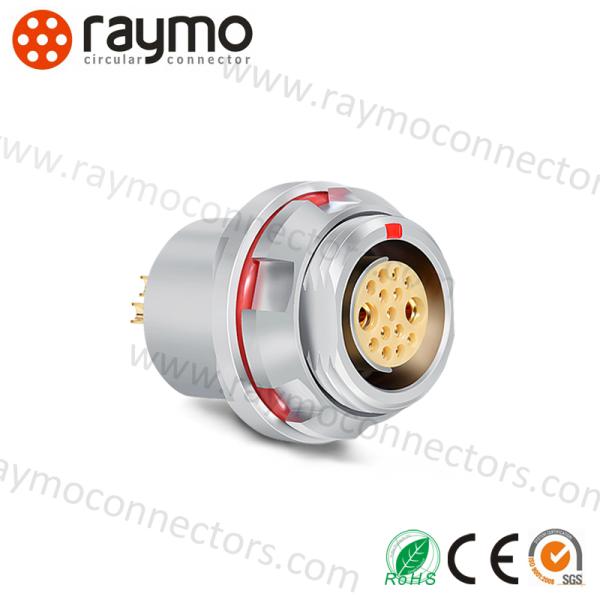

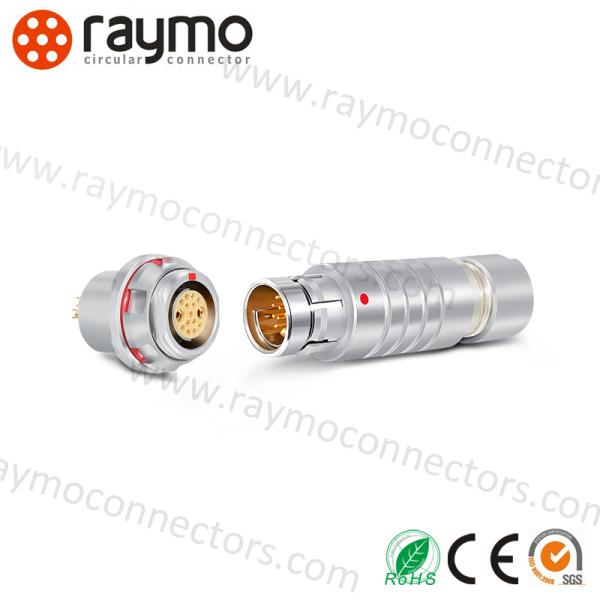

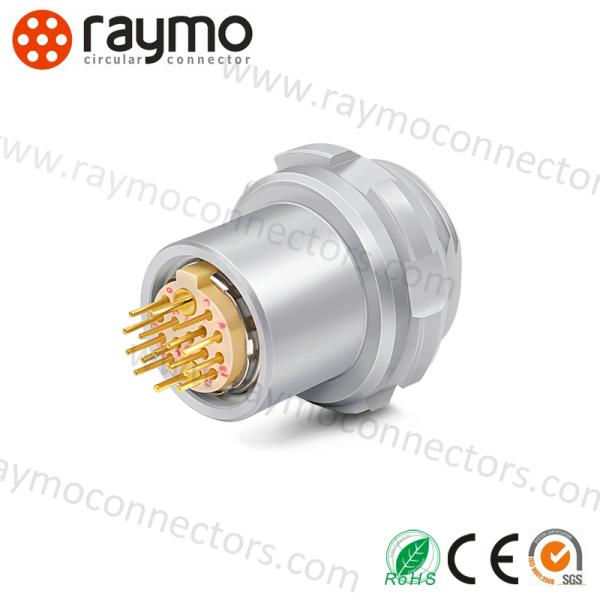

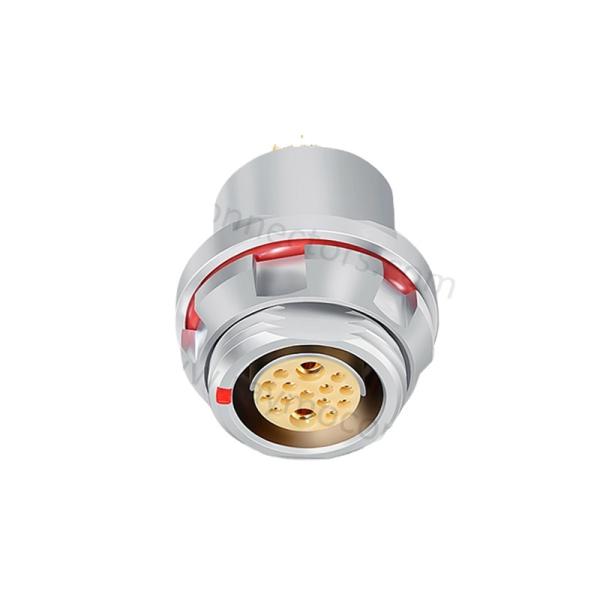

RM-DBP-AF1C-P15KP Traxial circular connector Free sample is available competitive price to save your cost | ||||||
IP Rating | IP 68 | Certifications | ISO9001:2008 / CE / ROHS / SGS | |||
Shell model | DBP CIRCULAR CONNECTOR | Shell Size | 1031 series / AF | |||
Gender | Female | Contact No. | 15 PINS DIN CONNECTOR | |||
MOQ | 1pcs | Delivery | 3-5 working days | |||
Raymo connector is a professional supplier of high-end connector solutions, company have advanced production equipment, testing equipment, high-end CNC lathe and a professional team, dedicated to provide innovative solutions & high quality products for industrial, telecommunication, military, medical and automotivemarkets. By the end of 2019, the company has successfully passed the ISO9001 (2015) quality system certification, ROHS certification, CE certification, Reach certification and other authoritative certification.
B series, waterproof K series, half-moon S series, REDEL P series connectors
FISCHERS 102 103 1031 104 series connectors/ Ultimate waterproof RM-U series
ODUS L series,K series,B series, F series,1M plastic series
HIROSES HR10A series connectors
Binders M16 682 420 678 series connectors
Deep sea waterproof RM-V/RM-W series
CABLE ASSEMBLY can be designed according customer real needs.Accept OEM/ODM
10 or 20 pcs in a PE bag.Cable assembly one piece in one bag. ,then put them into Carton
Every 50 or 100 pcs of connectors in a small box (size:19cm*15cm*10cm)
1~10pcs : 3~5 working days
11~100pcs: 5~7 working days
101~500pcs: 7~10 working days
Goods can be shipped by air shipping,sea and so on.....
Delivery time is according order quantity and exact items.
