Specifications
Brand Name :
RAYMO
Model Number :
ECG.0B.302.CLL
Certification :
RoHS, REACH, SGS, ISO:9001-2015, CE
Place of Origin :
SHENZHEN,CHINA
MOQ :
1 Piece/Pieces
Price :
Negotiable
Payment Terms :
Western Union, T/T , MoneyGram, D/P, D/A, MoneyGram, L/C
Supply Ability :
5000Pieces/ Week
Delivery Time :
3-5 working days
Packaging Details :
PE Bag & Carton
Type :
Circular Push Pull Connector
Gender :
Female solder contacts
Contact no. :
2.3.4.5.6.7.9pins
Insulator :
PPS, PEEK
Shell Material :
brass
Application :
Test and MeaAnalysis Application
Description

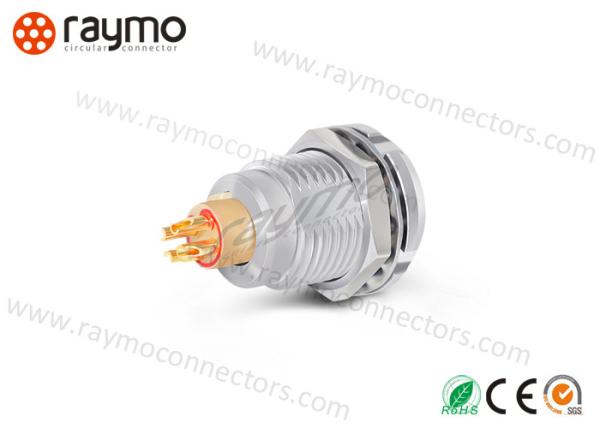

3pins Subsitute Lemo B EGG EEG ECG Connectors, Circular Push pull Connector, brass shell ECG.0B.303.CLL

Prcts Description

  • PARTS No.

Raymo P/N

LEMO P/N

RM-ECG.0BC.303.KS

ECG.0B.303.CLL

  • ECG panel socket
  • 0B shell size
  • 3 ways contacts with solder type
  • Shell in Natural chrome plated brass
Multiples contacts are available
Shell size Contacts no. ( Both with Solder & PCB type )
RM-00B
RM-0B 2 3 4 5 6 7 9
RM-1B 2 3 4 5 6 7 8 10 12 14 16
RM-2B 2 3 4 5 6 7 8 10 12 14 16 19
RM-3B 3 4 6 8/(6+2) 9(8+1) 10 12 14(13+1) 14 16 18 21 26 30 32
RM-4B 7 10 24

Mian Features
  • Secure Push-pull Self-locking system
  • multipole types 2 to 32 contacts
  • high packing density for space savings
  • 360° EMC shielding
  • multiple key options to avoid cross mating for connector alignment
  • solder, crimp or print (straight or elbow) contacts
  • rugged housing for extreme working conditions
Characteristics

Technical Characteristics
Temperature Range - 50° C, +250° C Resistance to vibrations 15 g [10 Hz - 2000 Hz]
Shell Material PC Humidity up to 95% at 60° C/140F
Shock Resistance 100 g [ 6 ms] Salt spray corrosion test >96hr
Climatical Category 50/175/21 Shielding (min) > 75 dB [ at 10 MHz], > 40 dB [ at 1 GHz]
IP Rating IP 50 Endurance(shell) ≥5000 mating cycles

Cable mount Receptacle,RM-P series, Prcts Photo, Shell size and Dimension

Brass Shell Circular Push Pull Connectors Aluminum Alloy Anti Corrosion Rust Proof

Brief intrction

SHENZHEN RAYMO ELECTRONICS TECHNOLOGY LIMITED is a manufacturer located in Shenzhen, focusing on manufacturing Creative customer-oriented metal and plastic circular push-pull self-latching connectors and cable assemblies to serve over 75 countries and regions since 2010. Our prcts got very popular recommendation among our customers.

This vast portfolio enables you to select the ideal connector configuration to suit almost any specific requirement in most markets inclyding medical devices, test and measurement instruments, machinery, audio video broadcast, telecommunications and military

Brass Shell Circular Push Pull Connectors Aluminum Alloy Anti Corrosion Rust Proof

Why Choose US
  • 100% compatible with lemo, , fischer connector

  • Help you save at least 50% cost

  • All the prcts we got CE, ROHS, SGS,ISO9000 certificate

  • Fast delivery: 2-15 working days

  • Cable assembly offer, help you save prction time

Brass Shell Circular Push Pull Connectors Aluminum Alloy Anti Corrosion Rust Proof

Choose tip

  • If you have ordered this shell connector and know the original model P/N,
  • please tell us.We will directly offer you our correspinding one.
  • If you don't know much about the connector,please make choose according the following factors:
  • The use of enviroment,indoor or ourdoors,waterproof or not
  • The panel hole size, to seclect the approproate plug and socket of right dimension
  • the current voltage and the realization of the function, to determin the cores
  • seclect the appropriate clam diameter and sheath
  • according to the actual needs of different angles of the keys, to determin the keying


If you couldn't find exact items you want,PLS kindly email us exact models you need, best price & each model specification details will be provided to you soon. Solve the original brand's high cost and long lead time!
