FGG EGG ECG Lemo Push Pull Connectors For ARRI ALEXA RED Camera
FGG EGG ECG Lemo Push Pull Connectors For ARRI ALEXA RED Camera
FGG EGG ECG Lemo Push Pull Connectors For ARRI ALEXA RED Camera
FGG EGG ECG Lemo Push Pull Connectors For ARRI ALEXA RED Camera
Specifications
Brand Name :
RAYMO
Model Number :
FGG EGG ECG
Certification :
RoHS2.0, ISO:9001-2015, CE , SGS, REACH
Place of Origin :
Shenzhen, China
MOQ :
1piece
Price :
Negotiable
Payment Terms :
Western Union, T/T, D/P, D/A, L/C,
Supply Ability :
5000pcs/week
Delivery Time :
5-7 working days
Packaging Details :
CTN
Prct name :
Push pull connector
shape :
circular
outer material :
metal
Shell size :
6.4-19mm
Contact no. :
2-30 pins
Contact treatment :
Gold-plated
Terminal :
Solder/printed/crimp
color :
silver/black
IP ranking :
IP50/IP68
Description

FGG EGG ECG 2B 3B metal circular lemo push pull connectors for ARRI ALEXA RED camera

100 compatible with Lemo FGG/EGG/ECG

FGG.2B.302.CLAD72 = RM-FGG-2BC-302-JS72 .Straight cable plug with key(G), 2B series, 2 contacts male solder contacts, collet for 6.2- 7.2mm diameter cable, nut for without bend relief, IP50.

1/ 4 pin hirose plug and D-tap male female connectors with cables assembly

  • Standard B series;
  • Waterproof/watertight K series;
  • Half-moon insert S series;
  • Standard F series;
  • Plastic P series.

2/ Hirose/ fischer/ / binder/ Weipu/ BNC connector.

3/ Connector with cable assembly.

Prcts Description

RM-B series metal circular push pull connector with below features:

  • Secure high performance push-pull self-locking system
  • High pin density contributing to equipment miniaturization

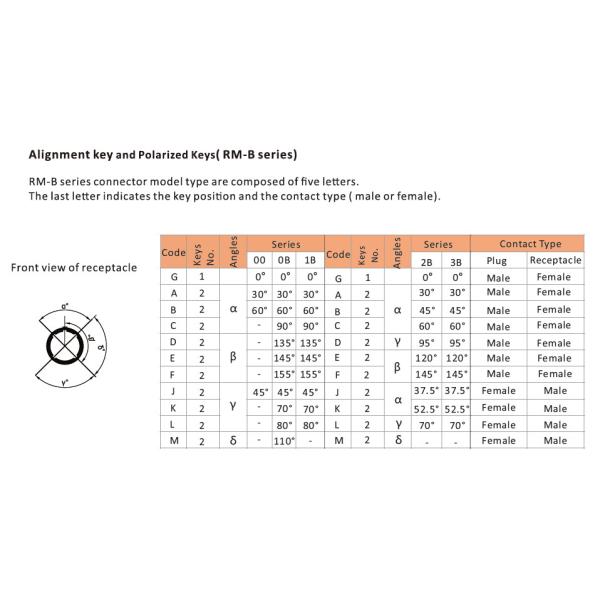

  • Alignment Key and Polarized Keying System to avoid cross-interface
  • 360° EMC shielding
  • Robust and shock resistant designs
  • Functional in a wide temperature range from -50°C to +250°C
  • Available solder, PCB and right angle PCB contact

FGG EGG ECG Lemo Push Pull Connectors For ARRI ALEXA RED Camera

FGG EGG ECG Lemo Push Pull Connectors For ARRI ALEXA RED Camera

Technical Parameter

Temperature Range
-55°C, +250°C
Resistance to vibrations
15 g [10 Hz - 2000 Hz]
Shock Resistance
100 g [ 6 ms]
Salt spray corrosion test
>96hr
Climatical Category
50/175/21
Shielding (min)
> 75 dB [ at 10 MHz], > 40 dB [ at 1 GHz]
IP Rating
IP50
Certifications
ISO9001/ CE/ ROHS2.0/ SGS

FGG EGG ECG Lemo Push Pull Connectors For ARRI ALEXA RED Camera

Applications
RAYMO connectors have been widely used in the areas of telecommunication, electronics, medical equipments, aviation, audio-video, petroleum, motor and power industries, electrical signal connection, IC control systems, test and measurement instruments, ect.

FGG EGG ECG Lemo Push Pull Connectors For ARRI ALEXA RED Camera

FAQ
Q1. What is your terms of packing?
A: Generally, we pack our goods in PE bag and brown cartons.
OEM&ODM is available after getting your authorization letters.
Q2. What is your terms of payment?
A: T/T 100% or online payment are both OK.
Q3. How about your delivery time?
A: Generally, it will take 5~7 working days after receiving your advance payment.
Q5. Can you prce according to the samples?
A: Yes, we can prce by your samples or technical drawings. We can build the molds and fixtures.
Q6. What is your sample policy?
A: We can supply the sample if we have ready parts in stock, but the customers have to pay the sample cost and the courier cost.
Q7. Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery.
Q8: How do you make our business long-term and good relationship?
A:1. We keep good quality and competitive price to ensure our customers benefit;
2. We respect every customer as our friend and we sincerely do business and make friends with them, no matter where they come from.
