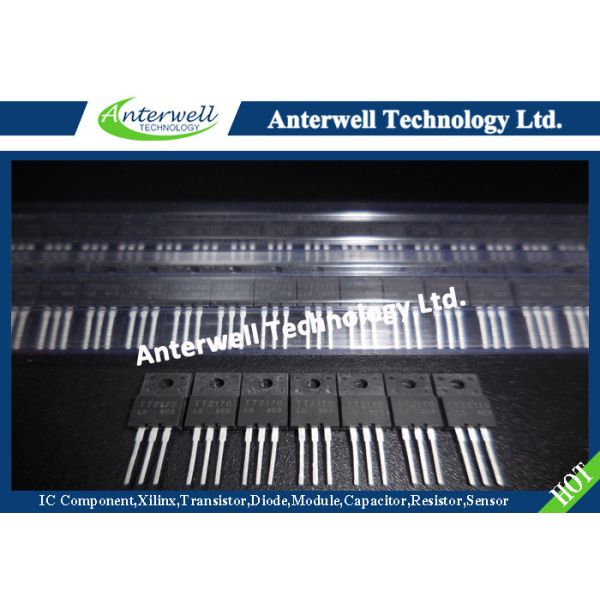

TT2170LS 3 Pin Transistor Color TV Horizontal Deflection Output Applications
TT2170LS 3 Pin Transistor Color TV Horizontal Deflection Output Applications
Specifications
Brand Name :
Anterwell
Model Number :
TT2170LS
Certification :
new & original
Place of Origin :
original factory
MOQ :
10pcs
Price :
Negotiate
Payment Terms :
T/T, Western Union, Paypal
Supply Ability :
8500pcs
Delivery Time :
1 day
Packaging Details :
Please contact me for details
Collector-to-Base Voltage :
1500 V
Collector-to-Emitter Voltage :
800 V
Emitter-to-Base Voltage :
5 V
Collector Current :
5 A
Collector Current (Pulse) :
12 A
Junction Temperature :
150 °C
Description

TT2170LS

Color TV Horizontal Deflection Output Applications

Features

• High speed.

• High breakdown voltage(VCBO=1500V).

• High reliability(Adoption of HVP process).

• Adoption of MBIT process.

• On-chip damper diode.

Absolute Maximum Ratings at Ta=25°C

Parameter Symbol Conditions Ratings Unit
Collector-to-Base Voltage VCBO 1500 V
Collector-to-Emitter Voltage VCEO 800 V
Emitter-to-Base Voltage VEBO 5 V
Collector Current IC 5 A
Collector Current (Pulse) ICP 12 A
Collector Dissipation PC 2.0 W
Tc=25°C 25 W
Junction Temperature Tj 150 °C
Storage Temperature Tstg --55 to +150 °C

Package Dimensions

TT2170LS 3 Pin Transistor Color TV Horizontal Deflection Output Applications

Switching Time Test Circuit

TT2170LS 3 Pin Transistor Color TV Horizontal Deflection Output Applications
