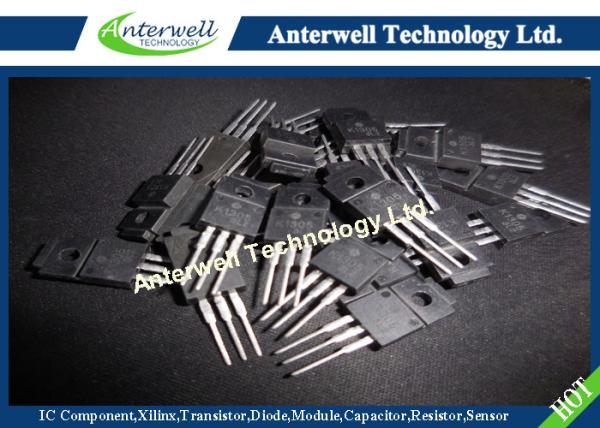

Original Transistor 2SK1305 Silicon N Channel MOS FET IC Components
Original Transistor 2SK1305 Silicon N Channel MOS FET IC Components
Specifications
Brand Name :
RENESAS
Model Number :
2SK1305
Certification :
Original Factory Pack
Place of Origin :
Japan
MOQ :
20
Price :
Negotiate
Payment Terms :
T/T, Western Union,Paypal
Supply Ability :
30000
Delivery Time :
1
Packaging Details :
please contact me for details
Shipment :
DHL, FedeX, UPS, EMS etc
Main Line :
IC components, Transistor, Diode, Module,Capacitor etc
Channel dissipation :
25W
Mold :
High speed power switching
D/C :
°C
Package :
TO-220F
Description

Original Transistor 2SK1305 Silicon N Channel MOS FET IC Components

Original Transistor 2SK1305 Silicon N Channel MOS FET TO-3P

Features

• Low on-resistance

• High speed switching

• Low drive current

• 4 V gate drive device  Can be driven from 5 V source

• Suitable for motor drive, DC-DC converter, power switch and solenoid drive

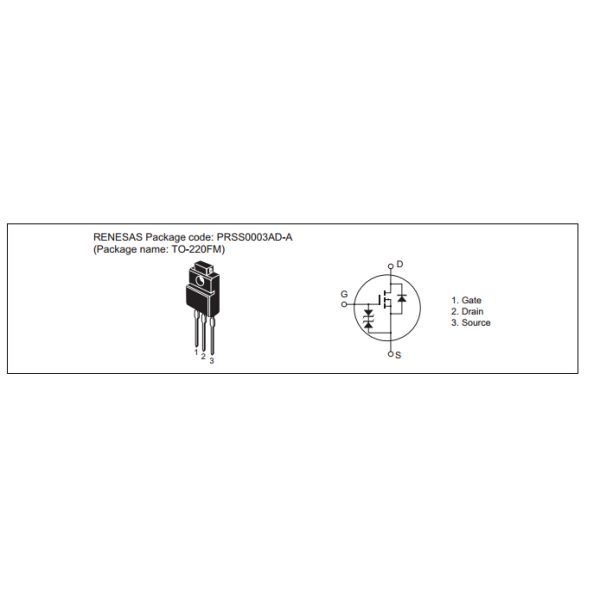

Outline

Original Transistor 2SK1305 Silicon N Channel MOS FET IC Components

Absolute Maximum Ratings

Item Symbol Rating Unit
Drain to source voltage VDSS 100 V
Gate to source voltage VGSS ±20 V
Drain current ID 10 A
Drain peak current ID(pulse)*1 40 A
Body to drain diode reverse drain current IDR 10 A
Channel dissipation Pch*2 25 W
Channel temperature Tch 150 °C
Storage temperature Tstg -50 to +150 °C

Notes: 1. PW ≤ 10 µs, duty cycle ≤ 1%

2. Value at TC = 25°C

Original Transistor 2SK1305 Silicon N Channel MOS FET IC Components
